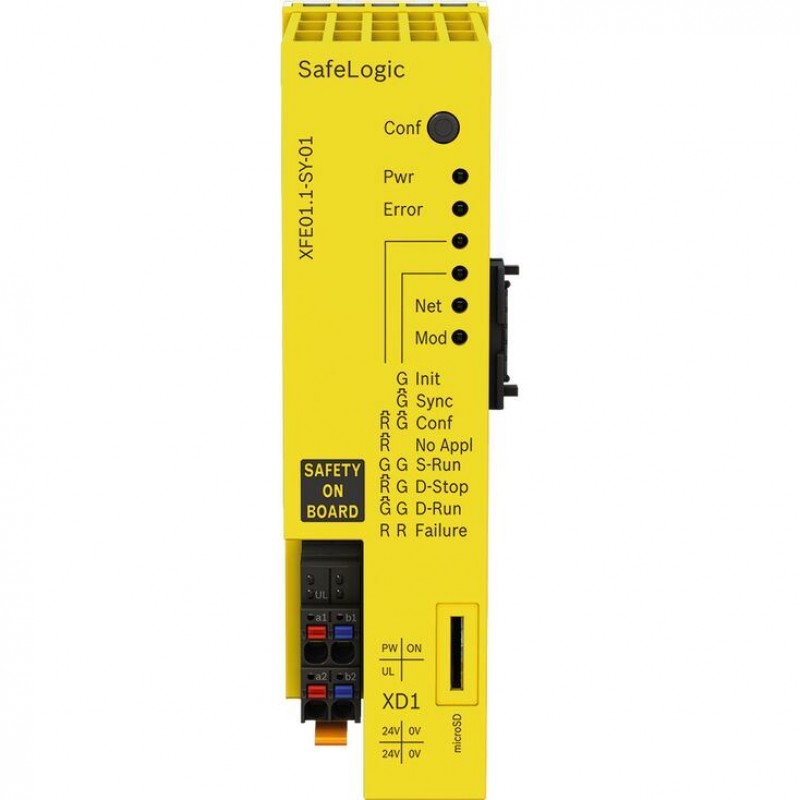

Description
- Expansion of the control hardware to the SafeLogic safety controller
- Safety CPU for two-channel evaluation of the safety application
- Multi-Safety-Master Sercos (CSos) and PROFIsafe
- Internal memory card for firmware and safety application
- Protection type IP20
Technical data
General data
| Type | XFE01.1-SY-01 | |
| Ambient temperature (operation) | °C | +5 ... +55 |
| Ambient temperature (storage) | °C | -40 ... +85 |
| Permissible relative humidity (operation) | 10 ... 95%, no dewing | |
| Protection type | IP20 | |
Interfaces
| Type | XFE01.1-SY-01 | |
| Type | PCI bus via XM | |
Functions
| Type | XFE01.1-SY-01 | |
| Two-channel safety controller | Yes | |
| Multi-Master, connection via XM | Sercos (CIP safety on Sercos), PROFIsafe | |
Safety technological parameters
| Type | XFE01.1-SY-01 | |
| Safety integrity level acc. to IEC 61508 | SIL 3 | |
| Safety integrity level acc. to EN 62061 | SILCL3 | |
| Category acc. to EN ISO 13849-1 | Category 4 | |
| Performance level acc. to EN ISO 13849-1 | PL e | |
| PFHd acc. to EN ISO 13849 | 3.9*10-9 - | |
| TM (service life) acc. to EN ISO 13849 | 20 a | |
Electrical data
| Type | XFE01.1-SY-01 | |
| Supply voltage U | V DC | 24 |
| Umin ... Umax | 18 V ... 31.2 V (including all tolerances, including ripple) | |
| Power consumption | W | ≤ 3 |
Mechanical tests
| Type | XFE01.1-SY-01 | |
| Shock 1) | g | 5 |
| Fatigue limits | 30 g, 11 ms, acc. to EN 60068-2-6 | |
| 1) | 9 … 0 Hz, acc. to EN 60068-2-27 |
Components
Safety modules
Safety modules
- Safety-oriented inputs and outputs
- SIL 3 according to EN 61508
- SIL CL 3 according to EN 62061
- Category 4/PL e as per EN ISO 13849-1
- CIP Safety on Sercos
Function toolkit
SafetyManager
Function toolkit
SafetyManager
- Universal safety control solution on scaled control platforms
- Seamless enhancement of Rexroth control solutions with multi-master support
- Consistent engineering of standard and safety PLC programming with one software
- Field-proven overall solution based on hundreds of different installations
- Certified for world-wide usage according to international safety standards
Embedded Controls
XM21
Embedded Controls
XM21
- CPU: Intel ATOM E620 600 MHz
- On-board Sercos master with 250 μs cycle time
- Gigabit Ethernet, USB host and device, SD card slot, diagnostic LED
- Modular expansion options with extension and I/O modules
- Ideal for centralized and decentralized controller topologies
- Scaled in the scope of performance and functions based on the latest chip technology
- Robust design with extended temperature range
- Simple, flexible I/O integration
- Optionally expandable with extension modules (communication, safety)
- Protection type IP20
Embedded Controls
XM22
Embedded Controls
XM22
- CPU: Intel ATOM E660 1300 MHz
- On-board Sercos master with 250 μs cycle time
- Gigabit Ethernet, USB host and device, SD card slot, diagnostic LED
- Modular expansion options with extension and I/O modules
- Ideal for centralized and decentralized controller topologies
- Scaled in the scope of performance and functions based on the latest chip technology
- Robust design with extended temperature range
- Simple, flexible I/O integration
- Optionally expandable with extension modules (communication, safety)
- Protection type IP20
Safety controls
SafeLogic
Safety controls
SafeLogic
- Economic solution for machines with a broad range of functions or plant with widely distributed safety peripherals
- Consistent and side-effect-free engineering of standard and safety applications with IndraWorks
- Multi-Master support CIP Safety on Sercos and PROFIsafe
- Seamless, complete Motion Logic solution incorporating IndraDrive with SafeMotion

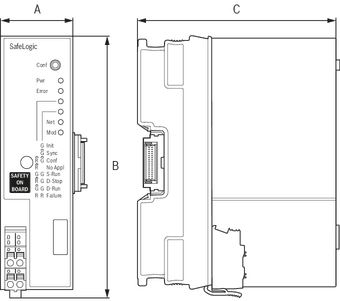

Dimensions
Dimensions
| Type | XFE01.1-SY-01 | |
| A | mm | 35 |
| B | mm | 126.1 |
| C | mm | 95.8 |
Downloads
 | IndraControl XFE01.1-SY-01 Safety Extension Module Manual | R911376654 | 2021-11-04 | English | PDF | 3MB Product Groups: XM Edition 04 |
| IndraControl XFE01.1-SY-01 Safety-Erweiterungsmodul Manual | R911376655 | 2021-11-04 | German | PDF | 3MB Product Groups: XM Ausgabe 04 |
| MKE Synchron-Servomotoren UL/CSA Manual | R911414372 | 2021-12-08 | German | PDF | 2.7MB Product Groups: MKE037, MKE047, MKE098, MKE118 Ausgabe 01 |
| MKE Synchron-Servomotoren UL/CSA (Hiperface DSL-Geber) Manual | R911415429 | 2021-12-10 | German | PDF | 2.5MB Product Groups: MKE037, MKE047, MKE098, MKE118 Ausgabe 01 |
