Valve amplifiers for high-response valves VT-VRRA1-527-2X/V0/KV-AGC
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Component series 2X
- Analog, Euro-card format
- For valves: 4WRPH 6…P-2X (inflected characteristic curve)
Features
- Controlled output stage
- Closed-loop position control with PID characteristics
- Fast energization and fast deletion for short actuating times
- Enable input
- Short-circuit-proof outputs
- Zero point, amplification in small signal range and area adjustment for adjustable cylinder
- Cable break detection for actual value cable
Type code
| 01 | Valve amplifiers for control valves, analog, Euro-card format | VT-VRRA1 |
| 02 | For valves: 4WRPH 6…P-2X (inflected characteristic curve) | 527 |
| 03 | Component series 20 ... 29 (20 ... 29: unchanged technical data and pin assignment) | 2X |
| 04 | Version: standard | V0 |
| 05 | For variable inflection, small signal amplification, area adjustment | KV-AGC |
| 01 | 02 | 03 | 04 | 05 | ||||
| VT-VRRA1 | ‒ | 527 | ‒ | 2X | / | V0 | / | KV-AGC |
Technical data
General
| Component series | 2X | ||
| Material number | Data sheet | 1819929043 | |
| Type of electronics | Analog | ||
| Design | Euro-card | ||
Voltage supply
| Operating voltage | Nominal | U | V | 24 |
| Lower limit value | UB(t)min | V | 21 | |
| Upper limit value | UB(t)max | V | 40 | |
| Ripple 1) | % | < 10 | ||
| Power consumption | P | VA | 37 | |
| Current consumption | max. | Imax | A | 1.7 |
| 1) | In case of ripple > 10 %, an upstream smoothing capacitor is required (recommendation: capacitor module VT 11110) |
Analog inputs
| Command value source | Potentiometer 10 kΩ supplied with 10 V internal reference voltage, external signal source | ||||
| Command value | Voltage | Differential input | U | V | 0 ... ±10 |
| Input resistance | R | kΩ | ≥ 100 | ||
| position value 1) | Voltage | U | V | 0 … ±10 | |
| 1) | RE = 20 kΩ |
Digital inputs
| Enable 1) | On (active) | U | V | 8.5 ... 40 |
| 1) | RE = 100 kΩ |
Digital outputs
| Cable break error message | No error 1) | UB | V | 24 |
| Error | UB | V | 0 |
| 1) | Imax = 100 mA |
Solenoid outputs
| Solenoid current | max. | Imax | A | 2.7 |
| Solenoid output | Other properties | Clocked current controller | ||
| Cable length | for 1.5 mm2 | L | m | 20 |
| for 2.5 mm2 | L | m | 60 |
Position transducer
| Line cross-section | Position transducer line | A | 4 x 0.5 mm2 (shielded) | |
| Position transducer supply | U | V | ±15 | |
Adjustment options
| Zero point calibration setting range | % | ± 5 | |
| Amplification in the small signal range settings | 0 ... 0.4 | ||
| Area adjustment of differential cylinders settings | see "characteristic curves" | ||
| Adjustment of amplification in reduced range | see "characteristic curves" | ||
| Adjustment of reduced amplification range | see "characteristic curves" |
Displays
| LED display | Green 1 | Enable | |
| Yellow 1 | Cable break actual value | ||
| Red | UB too low |
Other information
| Reference voltage | Potentiometer supply | U | V | ±10 (Imax = 10 mA) |
| Special features | Short-circuit-proof outputs, cable break detection for actual value line, position control with PID behavior, fast energization and fast deletion for short actuating times | |||
| Anschlussart | 32-pin male connector, DIN 41612, form F | |||
| Ambient temperature range | ϑ | °C | 0 … 70 | |
| Storage temperature range | ϑ | °C | -20 … 70 | |
| Weight | m | kg | 0.4 | |
(For applications outside these values, please consult us!)

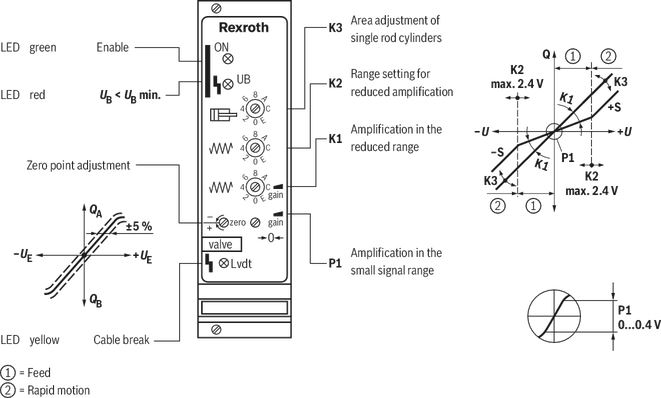

Operating and display elements
| Switch position | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | A | B | C | D | E | F |
| Amplification | 1:1 | 1,06:1 | 1,15:1 | 1,23:1 | 1,33:1 | 1,44:1 | 1,56:1 | 1,70:1 | 0,733 | 0,7 | 0,666 | 0,633 | 0,6 | 0,566 | 0,533 | 0,5 |
| Area ratio | 1 | 0,97 | 0,934 | 0,9 | 0,867 | 0,834 | 0,8 | 0,766 | 1,86:1 | 2,04:1 | 2,23:1 | 2,50:1 | 2,77:1 | 3,12:1 | 3,52:1 | 4:1 |
Symbols/Circuit diagrams
Dimensions
load errorProject planning information
load errorMounting
load errorCommissioning
load errorDownloads
 | Elektrische Verstärker Data Sheet | RD30046 | 2012-03-31 | German | PDF | 452k Product Groups: Valve amplifiers VT-VRRA1-5...-2X/V0/KV-AGC |
| Electric amplifiers Data Sheet | RE30046 | 2012-03-31 | English | PDF | 453k Product Groups: Valve amplifiers VT-VRRA1-5...-2X/V0/KV-AGC |
| Amplificateurs électriques Data Sheet | RF30046 | 2012-03-31 | French | PDF | 452k Product Groups: Valve amplifiers VT-VRRA1-5...-2X/V0/KV-AGC |
| Amplificador eléctricos Data Sheet | RS30046 | 2012-03-31 | Spanish | PDF | 452k Product Groups: Valve amplifiers VT-VRRA1-5...-2X/V0/KV-AGC |
| 电气放大器 Data Sheet | RC30046 | 2012-03-31 | Chinese | PDF | 666k Product Groups: Valve amplifiers VT-VRRA1-5...-2X/V0/KV-AGC |
