Description
- Valid for: Hägglunds motors CA, CB, CBP and CBM
Features
- Easy mounting i.e. No alignment problems, couplings and bed plates are eliminated.
- Fast mounting of motor to driven shaft.
- Robust torque-transmitting.
- Controlled external forces on driven shaft.
- Space saving. i.e. close mounting to the driven machine.
- Take up radial and axial movements on driven shaft.
- Electrical isolated option to avoid current from passing through the hydraulic motor.

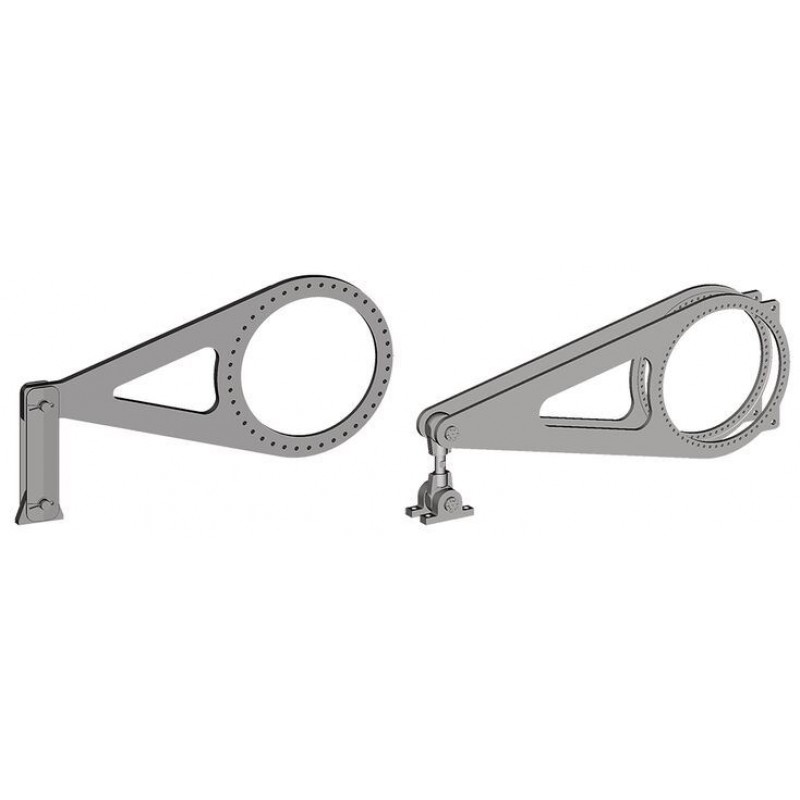

Product description
If the driven machine can stand the forces generated by the Hägglunds single ended torque arm arrangement, the Hägglunds single ended torque arm is an easy and favorable mounting solution for the Hägglunds hydraulic motor. The torque arm transmits the force generated by the hydraulic motor in to a fixed point. The length of the torque arm determine the force Fr (see chapter "Technical Data" - Table "External forces Fr, Fb for TCA") on motor and driven shaft.
The standard torque arm kit consists of the torque arm, screws, washers and an articulated connection.
The articulated connection is a flexible link which allows the motor to follow the rotation of customer shaft within specified limits of misalignment and eccentricity. See chapter "Mounting".
Note:
For installation instructions see Installation and maintenance manual for respective Hägglunds motor. (See chapter "Information" - Table "Required and additional documents")
 |
| Articulated connection rotates with the motor! Risk to life and risk of injury or serious injuries and risk of damage to equipment! (see Figure "Danger zone" below)
|
Danger zone
 |  |
| Single ended torque arm without articulated connection, TCA 0050 to 4000 | Single ended torque arm without articulated connection, TCA 6000 |
 |  |

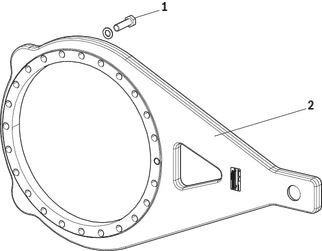

| Single ended torque arm with mounting screws and washers, TCA 0050 to 4000 | Single ended torque arm with mounting screws, washers and articulated connection, TCA 6000 |
 | |

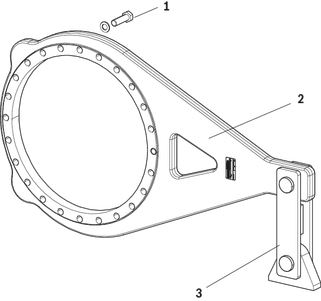

| Standard, single ended torque arm with mounting screws, washers and articulated connection, TCA 0050 to 4000 |
| 1 | Mounting screws and washers |
| 2 | Torque arm |
| 3 | Articulated connection |
Type code
ln order to identify Hägglunds equipment exactly, the following ordering code is used. These ordering codes should be stated in full in all correspondence e.g. when ordering spare parts.
| 01 | 02 | 03 | 04 | 05 | 06 |
| TC | A |
| 01 | Torque arm (see chapter "Product Description") | TC |
| 02 | Type | A |
| For motor frame size | ||
| 03 | CA 50 | 0050 |
| CA 70 | 0070 | |
| CA 100 | 0100 | |
| CA 140, CA 210, CBP 140 | 0210 | |
| CB 280, CB 400, CBP 280, CBP 400 F | 0400 | |
| CB 560, CB 840, CBP 400 C, CBP 560, CBP 840 | 0840 | |
| CB 1120 | 1120 | |
| CBM 2000 | 2000 | |
| CBM 3000/4000 | 4000 | |
| CBM 5000/6000 | 6000 | |
| Attachment 4) | ||
| 04 | Without attachment (see chapter "Product Description" - Figure "Single ended torque arm without articulated connection, TCA 0050 to 4000" and Figure "Single ended torque arm without articulated connection, TCA 6000") | 0 |
| Without attachment, with mounting screws and washers (see chapter "Product Description" - Figure "Single ended torque arm with mounting screws and washers,TCA 0050 to 4000") 1)2) | 1 | |
| Standard: With mounting screws, washers and articulated connection (see chapter "Product Description" - Figure "Standard, single ended torque arm with mounting screws, washers and articulated connection, TCA 0050 to 4000" and Figure "Single ended torque arm with mounting screws, washers and articulated connection, TCA 6000") | 2 | |
| Option: Electrical isolated articulated connection with mounting screws and washers (see chapter "Project Planning Information") 3) | 4 | |
| Modification 5) | ||
| 05 | 0 ... 9 | |
| Design | ||
| 06 | Standard | 00 |
| Special index 5) | 01 ... 99 | |
| 1) | Mounting screws part of the motor for frame sizes CA 50, CA 70, CB 280, CB 400, CBP 280 |
| 2) | Not available for TCA 6000 |
| 3) | Prepared for TCA 0040, TCA 0840, TCA 2000 and TCA 4000. For other sizes on request. |
| 4) | If a special design on the torque arm is required, the articulated connection and the screws have to be ordered separately on request. |
| 5) | To be filled in by Bosch Rexroth DC-IA/EHD |
C = Centre mounted
F = Front mounted
Technical data
General data
| Torque arm | Max torque for alternating or pulsating torque | Max torque static | Weight 1) |
| Nm | Nm | kg | |
| TCA 0050 | 17500 | 21000 | 28 |
| TCA 0070 | 24500 | 29400 | 31 |
| TCA 0100 | 35000 | 42000 | 91 |
| TCA 0210 | 70000 | 84000 | 81 |
| TCA 0400 | 140000 | 168000 | 162 |
| TCA 0840 | 294000 | 352800 | 223 |
| TCA 1120 | 392000 | 470400 | 344 |
| TCA 2000 | 700000 | 840000 | 450 |
| TCA 4000 | 1400000 | 1680000 | 875 |
| TCA 6000 | 2100000 | 2520000 | 1860 |
| 1) | Single ended torque arm with articulated connection |
Painting system
Corrosion protection
The painting system of Hägglunds motors and accessories are available in two different corrosivity categories regarding corrosion protection in accordance with SS-EN ISO 12944:
- C3 - Corrosivity category Medium - which is recommended for normal urban and industrial atmosphere.
- C5M - Corrosivity category Very High - which is recommended for marine environment with high salt load or other aggressive atmosphere.
Colour
Standard colour for Hägglunds motors and accessories is orange (RAL 2002)
External forces
External forces Fr, Fb, for TCA
| 1 | Pushing |
| 2 | T = Torque direction driven shaft |
External forces single ended torque arm valid for a pressure difference of 420 bar static
| Torque arm | Motor | Force Fb | Force Fr 1) |
| N | N | ||
| TCA 0050 | CA 50 50 | 35000 | 33077 |
| TCA 0070 | CA 70 70 | 49000 | 46754 |
| TCA 0100 | CA 100 100 | 52500 | 49164 |
| TCA 0210 | CA 140 140 | 73500 | 69517 |
| CA 210 210 | 110250 | 105384 | |
| CBP 140 140 | 73500 | 68977 | |
| TCA 0400 | CB 280 280, CBP 280 280 | 94080 | 86046 |
| CB 400 400, CBP 400 400 F | 134400 | 122883 | |
| CBP 280 280 F | 94080 | 77462 | |
| CBP 400 400C | 134400 | 114839 | |
| TCA 0840 | CB 560 560 | 156800 | 143674 |
| CBP 560 C | 136071 | ||
| CB 840 840 | 235200 | 218837 | |
| CBP 840 840 C | 211724 | ||
| TCA 1120 | CB 1120 1120 | 214792 | |
| TCA 2000 | CBM 2000 2000 | 420000 | 375845 |
| TCA 4000 | CBM 3000 3000 | 308000 | 251553 |
| CBM 4000 4000 | 560000 | 495705 | |
| TCA 6000 | CBM 5000 5000 | 700000 | 619585 |
| CBM 6000 5000 | 840000 | 751737 |
| 1) | The force Fr is calculated including the weight of splines motor and torque arm. |
Dimensions
load errorMounting
load errorInformation
load errorSafety Instructions
load errorDownloads
 | Hägglunds TCA, DTCA, DTCB, DTCBM Data Sheet | RE15355 | 2021-01-14 | English | PDF | 2.2MB Product Groups: Hägglunds TCA, Hägglunds DTC Torque arms |
