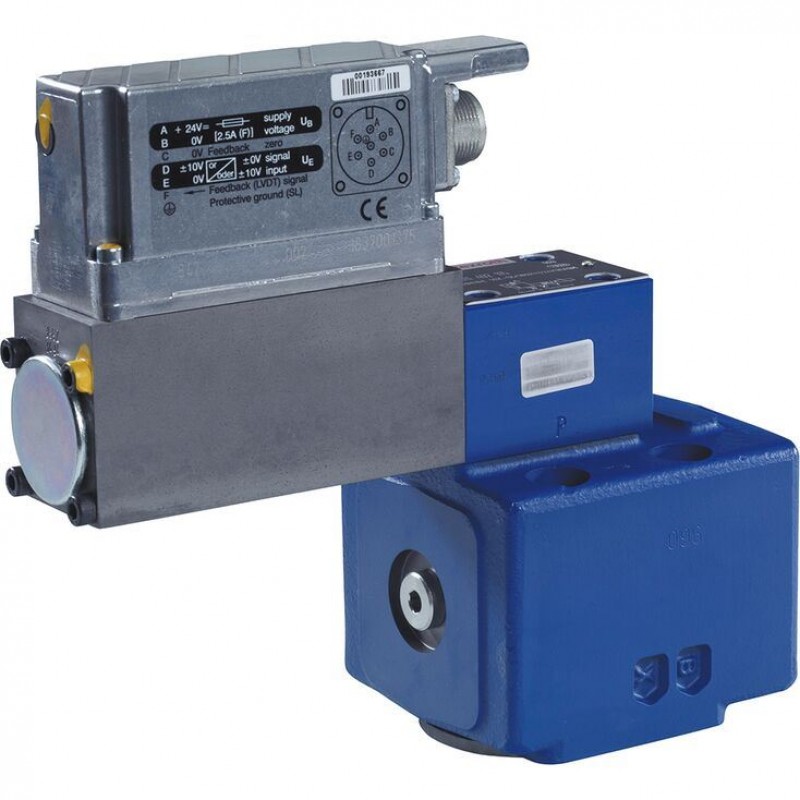

Proportional pressure reducing valve, pilot operated, with integrated electronics (OBE) and position feedback DREBE10Z
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Size 10
- Component series 1X
- Max. operating pressure 315 bar
- Flow, max. 120 l/min
Features
- Pilot-operated valves with position feedback and integrated electronics for system pressure limitation (pilot oil only internally)
- Adjustable via the position of the solenoid armature in relation to the compression spring
- Position-controlled, minimum hysteresis < 1%, short actuating times
- Maximum pressure limitation, even with defective electronics
- For subplate mounting: porting pattern according to ISO 5781-AG-06-2-A
Product description
Proportional pressure reducing valves of type DREBE10Z are pilot-operated pressure reducing valves and are used for system pressure limitation. They are actuated by a position-controlled proportional solenoid with integrated electronics. A logic element (spool valve) is located in the valve housing in the “normally open” version, pilot-operated in poppet seat version.
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | ||
| DREB | E | 10 | Z | – | 1X | / | XY | M | G24 | K31 | A1 | M | * |
| 01 | Proportional pressure reducing valve with inductive position transducer at the poppet | DREB |
| 02 | With integrated electronics (OBE) | E |
| 03 | Size | 10 |
| 04 | Porting pattern according to ISO 5781-AG-06-2-A | Z |
| 05 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) | 1X |
| Maximum pressure rating | ||
| 06 | Up to 180 bar | 180 |
| Up to 315 bar | 315 | |
| 07 | Bleed port X, pilot oil port Y | XY |
| 08 | Without check valve | M |
| Supply voltage of the control electronics | ||
| 09 | Direct voltage 24 V | G24 |
| Electrical connection | ||
| 10 | Connector according to DIN 43563-AM6 | K31 |
| Electrical interface | ||
| 11 | Command value 0 … 10 V | A1 |
| 12 | NBR seals, suitable for mineral oil HL and HLP according to DIN 51524 | M |
| 13 | Further details in the plain text | * |
Technical data
general
| Type | DREBE10Z | |
| Size | 10 | |
| Component series | 1X | |
| Installation position | any | |
| Weight | kg | 7.8 |
| Ambient temperature range | °C | -20 … +50 |
hydraulic
| Type | DREBE10Z | ||
| Size | 10 | ||
| Maximum operating pressure | bar | 315 | |
| Maximum operating pressure | Anschluss A | bar | 315 |
| Port B | bar | 315 | |
| Port X 1) | bar | 315 | |
| Pilot flow | l/min | ≤ 0.8 | |
| Maximum flow 2) | l/min | 120 | |
| Hydraulic fluid temperature range | °C | -20 … +70 | |
| Viscosity range | mm²/s | 10 … 800 | |
| Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 3) | Class 18/16/13 according to ISO 4406 (c) | ||
| Hysteresis | % | ≤ 1 | |
| Manufacturing tolerance of the command value pressure characteristic curve 2) | % | < ± 5 | |
| 1) | Bleed port |
| 2) | See characteristic curves |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
electrical
| Type | DREBE10Z | ||
| Power supply | Nominal voltage | V | 24 |
| Lower limit value | V | 21 | |
| Upper limit value | V | 40 | |
| Duty cycle | % | 100 | |
| Protection class according to DIN EN 60529 | IP65 | ||
| Conformity | CE conformity according to EMC directive 2004/108/EC tested according to EN 61000-6-2 and EN 61000-6-3 | ||
