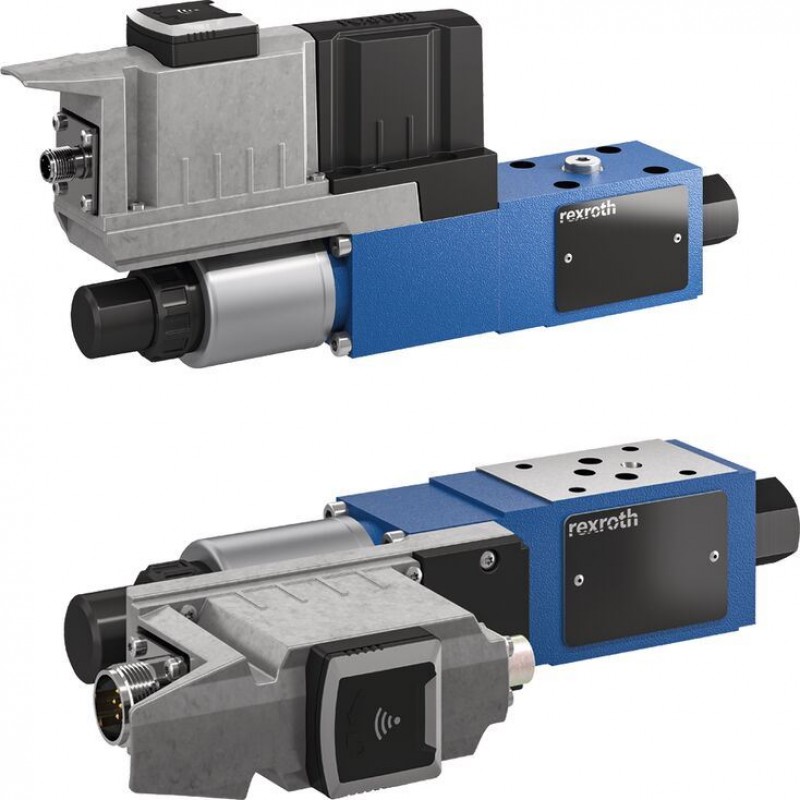

Description

Size 6
Component series 2X
Maximum operating pressure 350 bar
Maximum flow 60 l/min

Features

Pressure-controlled, optional
Pressure reduction in ports A and P➀ with pressure limitation
For subplate mounting or sandwich plate design
With integrated digital electronics (OBED), optional
CE conformity according to EMC Directive 2014/30/EU
Linear command value pressure characteristic curve
With integrated and external pressure sensor, optional
Pressure sensor adjustable for various applications
Digital (IO-Link, Bluetooth®) and analog interfaces, optional
Optional via Bluetooth®, fast and easy analysis and structural adjustment by means of app function

Product description

Valves of type 3DRE and Z3DRE are electrically pilot-operated 3-way pressure reducing valves with pressure limitation of the actuator. They are used for reducing a system pressure.

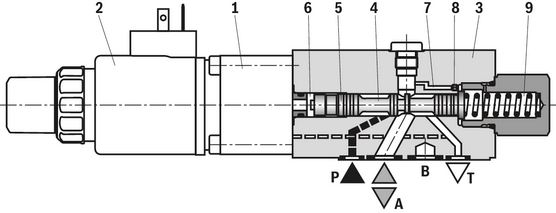

The valve basically consists of a pilot control valve (1), proportional solenoid (2), main valve (3) with main control spool (4).

General

In rest position, i. e. without pressure in channel P, the spring holds the main control spool in initial position. This opens the connection from A (P①) to T and blocks the connection from P to A (P①).

With pressure connection from port P, pilot oil flows via flow controller (5) and nozzle and throttle gap to the pilot control valve (1) and afterwards flows off to channel T.

The command value-dependent setting of the pressure to be reduced in channel A (P①) is effected using the proportional solenoid.

Type 3DRE

The pilot pressure builds up in the control chamber (6) as function of the command value. This moves the main control spool (4) to the right, hydraulic fluid flows from P to A.

The actuator pressure in channel A is applied to the spring chamber (9) via the channel (7) and the nozzle (8). If the pressure in port A increases to the set pressure of the pilot control valve, this leads to the movement of the main control spool (4) to the left. The pressure in port A is almost identical with the set pressure at the pilot control valve.

If, however, the pressure in port A exceeds the set pressure of the pilot control valve, the main control spool (4) is moved further to the left so that the connection from A to T is opened. In this way, the pending pressure in port A is limited to the set command value.

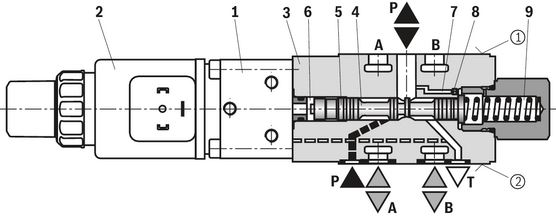

Type Z3DRE

In principle, the function of this valve version corresponds to the function of type 3DRE.

The pressure reduction is, however, effected in channel P①.

Type 3DRE...

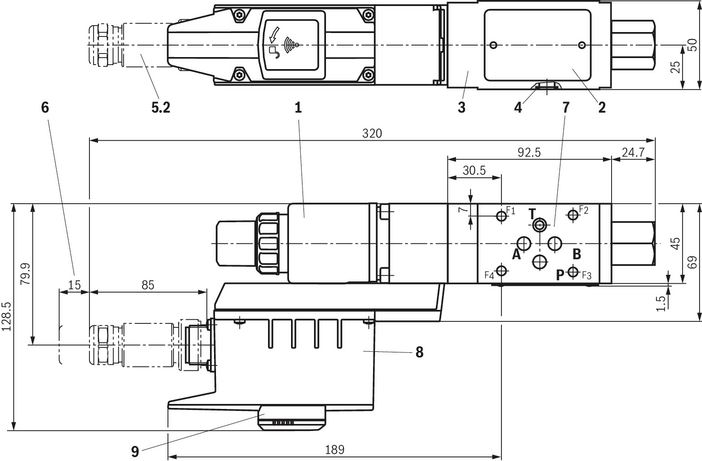

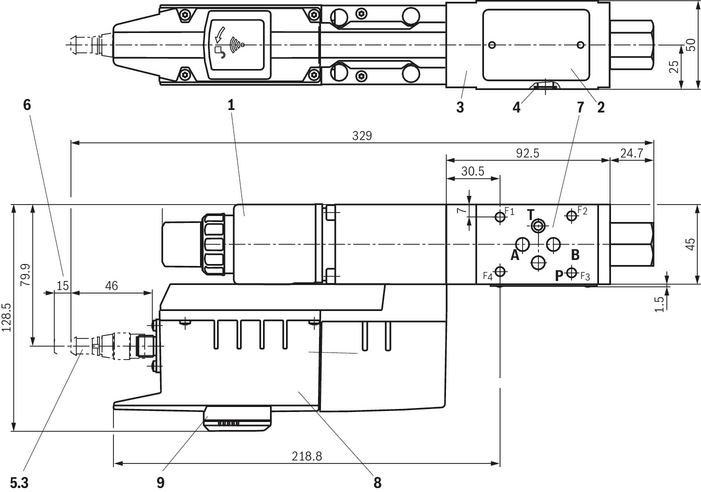

Type Z3DRE...

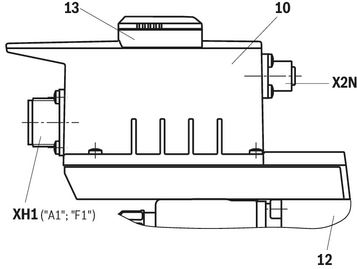

Type (Z)3DREE – with integrated digital electronics (OBED)

With regard to function and set-up, they correspond to valve type (Z)3DRE.

On the proportional solenoid, there is the digital on-board electronics (OBED) (10). It may be equipped with different electric interfaces:

Analog interface (XH1)
- Interface "A1" (command value 0 … 10 V)
- Interface "F1" (command value 4 … 20 mA)

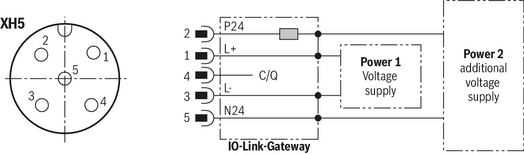

Digital interface (XH5)
- IO-Link "L1"

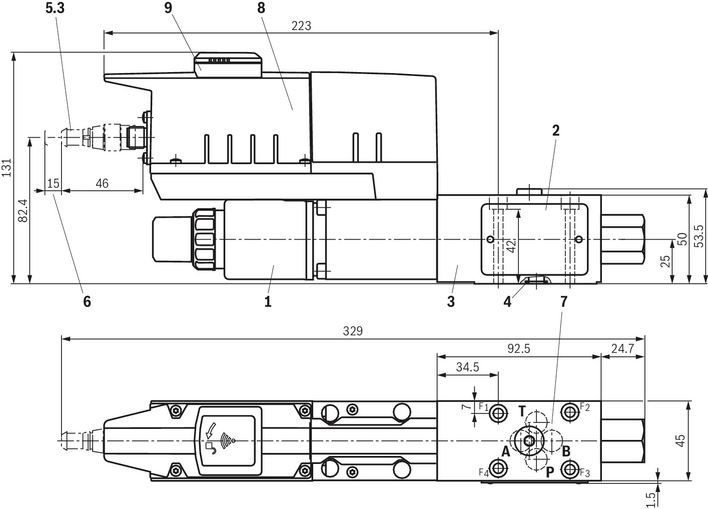

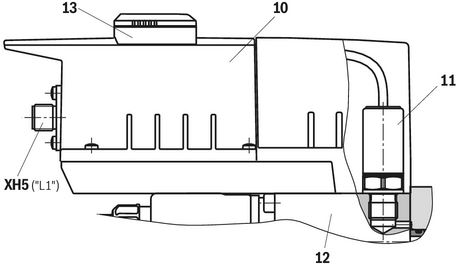

Type (Z)3DREA – with integrated digital electronics (OBED) and pressure control

With regard to function and set-up, they correspond to valve type (Z)3DREE.

This valve version moreover has a pressure transducer (11). The latter is either directly attached on the carrier (12) or may be externally integrated in the system via the interface (X2N).

The pressure in channel P is captured by means of the pressure transducer (11) and regulated independently of the flow via the integrated electronics (10).

The pressure in channel A (P①) is made available via the connector (XH1, XH5) as analog or digital actual value (0 …10 V or

4 … 20 mA or in the unit [bar]). If the command value is zero, the integrated electronics only applies the minimum control current to the proportional solenoid and the minimum set pressure is applied.

Bluetooth® function

The digital on-board electronics (OBED) provides the user with a digital diagnosis interface via a Bluetooth® dongle (Bluetooth® Low Energy). It may also be ordered as accessory and retrofitted. The Bluetooth® dongle may only be attached when the valve is de-energized. By means of the "easy2connect app", the valve status can be displayed and configurations at the valve can be carried out via the Bluetooth® dongle (13).

Notices:

The "easy2connect app" can be downloaded in the App Store (iOS) or Google Play Store (Android).

Further information on the Bluetooth® dongle VT-ZBT-1-1X (R901505294) as well as set-up and installation of the app is available in data sheet 30581 and operating instructions 30581-B.

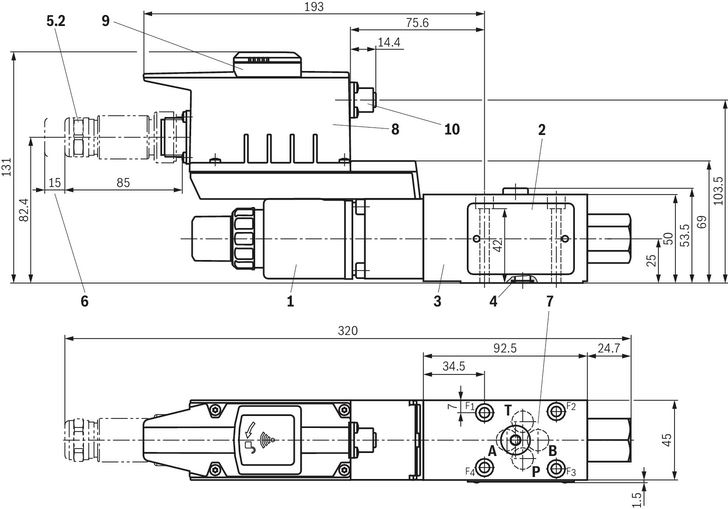

Type 3DREA...A

Type 3DREA...

Type code

01	02	02	04	05	06	07		08		09	10	11	12	13	14	15	16	17
	3	DRE		6			-	2X	/			G24						*

01	Subplate mounting	no code
01	Sandwich plate design	Z
02	3-way version	3
03	Proportional pressure reducing valve	DRE
04	For external analog electronics	no code
	With integrated electronics (OBED)	E
	With integrated electronics (OBED), pressure-controlled	A
05	Size 6	6
06	Pressure reduction in channel A (subplate mounting)	no code
06	Pressure reduction in channel P① (sandwich plate design)	VP
Position of the mating connector (only sandwich plate design)
07		1
		2
		3
		4
08	Component series 20 … 29 (20 … 29: unchanged installation and connection dimensions)	2X
Pressure rating
09	50 bar	50
	100 bar	100
	200 bar	200
	315 bar	315
Pressure sensor
10	Internal	no code
10	External (only with integrated electronics "A", pressure-controlled)	A 2)
Power supply
11	Direct voltage 24 V	G24
Coil
12	1600 mA	no code
12	800 mA (only with external control electronics)	-8
Electrical connection
13	Type (Z)3DRE
	Without mating connector, connector according to DIN EN 175301-803	K4 3)
	Type (Z)3DREE und (Z)3DREA – Version "A1", "F1"
	Without mating connector, connector according to DIN EN 175201-804	K31 3)
	Type (Z)3DREE und Z()3DREA – Version "L1"
	Without mating connector; connector cable sets M12, 4-pole	K24 3)
Interface electronics
14	External control electronics	no code
	Command value input and actual value output 0 ... 10 V	A1 4)
	Command value input and actual value output 4 ... 20 mA	F1 4)
	IO-Link interface (only with integrated electronics "E" and "A"; für class B)	L1 5)
Accessories, service interface
15	Without Bluetooth® interface	no code
15	With Bluetooth® interface (only with integrated electronics "E" and "A")	B
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
16	NBR seals	M
16	FKM seals	V
17	Further details in the plain text	*

1)	Valve contact surface (seal ring recess in the housing)
2)	Pressure sensor adjustment via "easy2connect app" (see "Electrical connection"; pressure sensor, separate order, see "Accessories")
3)	Mating connectors and cable sets, separate order, see accessories.
4)	Command value input switchable via Bluetooth® interface "B" ("A1" ↔ "F1")
5)	Only for use in the industrial area according to IO-Link specification and EN 61131-9. When used in the household / small business area, additional EMC measures are required for the IO-Link system.

Technical data

general

Type			(Z)3DRE	(Z)3DRE…-8	(Z)3DREE	(Z)3DREA
Weight		kg	2.6		3.1	3.5
Installation position			any, preferably horizontal
Storage temperature range		°C	-20 … +80
Ambient temperature range	without "OBED"	°C	-20 … +80
Ambient temperature range	with "OBED"	°C	-20 … +60
Maximum storage time 1)		yrs	1
Sine test according to DIN EN 60068-2-6			10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes
Noise test according to DIN EN 60068-2-64			20 ... 2000 Hz / 10 gRMS / 30 g peak / 30 min. / 3 axes
Transport shock according to DIN EN 60068-2-27			15 g / 11 ms / 3 shocks / 3 axes
Maximum relative humidity (no condensation)		%	97
MTTFD values according to EN ISO 13849 2)			150 (for further details see data sheet 08012)

1)	If the storage conditions are observed; refer to the operating instructions 07600-B
2)	"OBED" voltage supply switched off.

hydraulic

Maximum operating pressure	Port P	bar	350
	Port P①	bar	315
	Port P②	bar	350
	Anschluss A	bar	315
	Port B	bar	315
	Port T		separate and depressurized to the tank
Maximum set pressure	Port P①, A	bar	50 100 200 315
Minimum set pressure with command value 0	Port P①, A		see "characteristic curves"
Maximum flow		l/min	60
Pilot flow		l/min	0.5
Hydraulic fluid			see table "Hydraulic fluid"
Hydraulic fluid temperature range		°C	-20 … +80
Viscosity range	Recommended	mm²/s	10 … 100
Viscosity range	Maximum admissible	mm²/s	10 … 380
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)			Class 20/18/15

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD, HVLP, HVLPD	NBR, FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG	FKM	ISO 15380	90221
	Insoluble in water	HEES	FKM	ISO 15380
	Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	Water-free	HFDU (glycol base)	FKM	ISO 12922	90222
		HFDU (ester base)	FKM
		HFDR	FKM
	Containing water	HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046)	NBR	ISO 12922	90223
Important information on hydraulic fluids: For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature. Bio-degradable and flame-resistant – containing water: If components with galvanic zinc coating (e.g. version "J3" or "J5") or parts containing zinc are used, small amounts of dissolved zinc may get into the hydraulic system and cause accelerated aging of the hydraulic fluid. Zinc soap may form as a chemical reaction product, which may clog filters, nozzles and solenoid valves - particularly in connection with local heat input. Flame-resistant – containing water: Due to increased cavitation tendency with HFC hydraulic fluids, the life cycle of the component may be reduced by up to 30% as compared to the use with mineral oil HLP. Dependent on the hydraulic fluid used, the maximum ambient and hydraulic fluid temperature must not exceed 50 °C. In order to reduce the heat input into the component, the command value profile is to be adjusted for proportional and high-response valves.

static / dynamic

Type				(Z)3DRE	(Z)3DRE…-8	(Z)3DREE	(Z)3DREA
Hysteresis 1)			%	< 6	< 8	< 6	< 2
Range of inversion 1)			%	< 0.5			< 0.25
Response sensitivity 1)			%	< 0.5			< 0.25
Manufacturing tolerance 1)			%	6		2	1
Repetition accuracy 1)			%	± 1			± 0.5
Linearity 1)			%	± 2			± 1
Temperature drift	Electronics		%/10 K	-		< 0.3
	Pressure sensor	Pressure rating "50"	%/10 K	-			< 0.4
		Pressure rating "100"	%/10 K	-			< 0.2
		Pressure rating "200"	%/10 K	-			< 0.1
		Pressure rating "315"	%/10 K	-			< 0.1
Step response Tu + Tg 2)	10 ... 90%		ms	150	250	85 3)
Step response Tu + Tg 2)	90 ... 10%		ms	150	250	85 3)

1)	Of the maximum set pressure
2)	Line volume < 20 cm3; qV = 0.8 l/min; depending on the system
3)	Adjustment possible up to 70 ms

electrical

Type				(Z)3DRE	(Z)3DRE…-8	(Z)3DREE	(Z)3DREA
Power supply	Nominal voltage		VDC	24
Minimum control current			mA	< 100
Maximum control current	Coil 1600 mA 1)		mA	1600	-	1600
Maximum control current	Coil 800 mA		mA	-	800 2)	-
Solenoid coil resistance	Cold value at 20 °C	Coil 1600 mA	Ω	5.5	-	5.5
	Cold value at 20 °C	Coil 800 mA	Ω	-	20.6	-
	Maximum hot value	Coil 1600 mA	Ω	8.05	-	8.05
	Maximum hot value	Coil 800 mA	Ω	-	33	-
Relative duty cycle 3)			%	100
Conformity	RoHS directive			2011/65/EU

1)	±10 %
2)	±5 %
3)	Continuous operation

electrical, integrated electronics (OBE) – Interface "A1" and "F1"

Power supply	Nominal voltage	VDC	24
	Lower limit value	VDC	18
	Upper limit value	VDC	30
Protection class according to EN 60529			IP65 (If a suitable and a correctly mounted mating connector are used.)
Maximum current consumption 1)		A	1.6
Fuse protection, external			2.5 time-lag
Input (pressure command value)	Version "A1"	VDC	0 … 10
Input (pressure command value)	Version "F1"	mA	4 … 20
Output (actual pressure value) 2)	Version "A1"	VDC	0 … 10
Output (actual pressure value) 2)	Version "F1"	mA	4 … 20
Conformity	CE according to EMC directive 2014/30/EU tested according		EN 61000-6-2 and EN 61000-6-3
Conformity	RoHS directive		2011/65/EU

1)	Impulse current 3 A
2)	0 … 100% nominal pressure

electrical, integrated electronics (OBE) – Interface "L1"

Power supply	Valve amplifiers	VDC	24
	Pin 2	VDC	min. 18 / max. 30
	Pin 5	VDC	0
	IO-Link interface	VDC	24
	Pin 1	VDC	min. 18 / max. 30
	Pin 3	VDC	0
Relative duty cycle		%	100
Protection class according to EN 60529			IP65 (If a suitable and a correctly mounted mating connector are used.)
Maximum current consumption	Valve amplifiers 1)	A	1.6
Maximum current consumption	IO-Link interface	mA	50
Maximum admissible residual ripple		Vpp	1.3
Bit rate COM3		kBit/s	230.4
Required master port class			IO-Link Class B
Resolution	A/D transformer	Bit	12
Functional ground			provide via valve block
Directive			IO-Link Interface and System Specification Version 1.1.2
Conformity	CE according to EMC directive 2014/30/EU tested according		EN 61000-6-2 and EN 61000-6-3
Conformity	RoHS directive		2011/65/EU

1)	Impulse current 3 A

(For applications outside these values, please consult us!)

Diagrams/characteristic curves

(measured with HLP46, ϑOil = 40 ±5 °C)

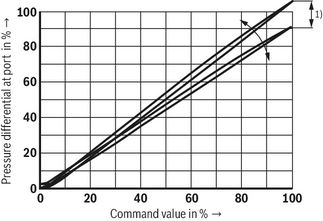

Reduced pressure in port A or P① of the command value (manufacturing tolerance)

In order to be able to adjust several valves to the same characteristic curve, the manufacturing tolerance can - with version "(Z)3DRE" - be changed at the external amplifier (see "Accessories") using the command value attenuator "G". In this connection, do not set the pressure higher than the maximum set pressure of the pressure rating with command value 100%.

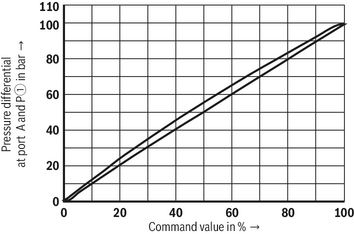

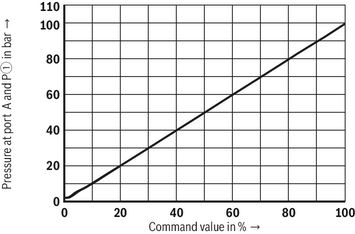

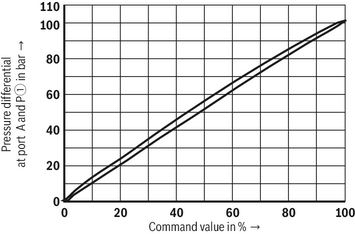

Pressure in port A or P① dependent on the command value(flow 0 l/min)
Pressure rating 100 bar (exemplary of all pressure ratings)

Type (Z)3DRE

Type (Z)3DREE

Type (Z)3DREA

Notices:

The characteristic curves apply to an output pressure pT =0 bar in the entire flow range.

System pressure = nominal pressure + 50 bar (minor dead volume).

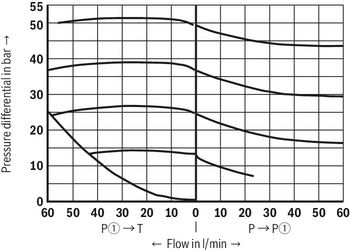

Type Z3DRE and Z3DREE

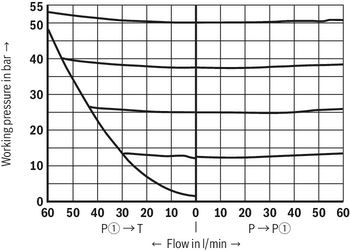

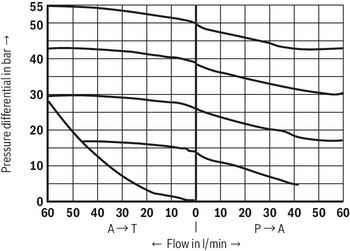

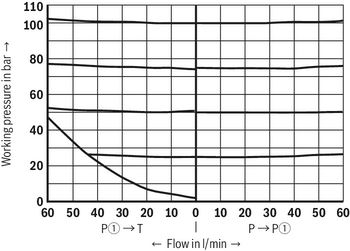

Δp-qV characteristic curves

Pressure rating 50 bar

Δp-qV characteristic curves

Pressure rating 100 bar

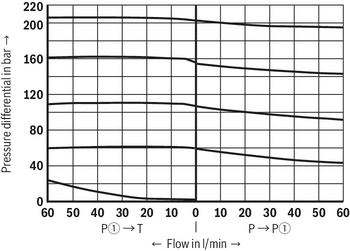

Δp-qV characteristic curves

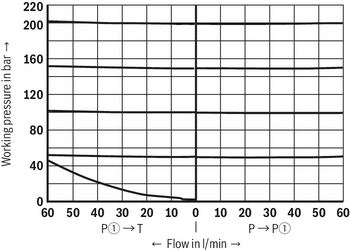

Pressure rating 200 bar

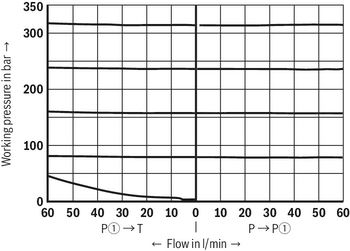

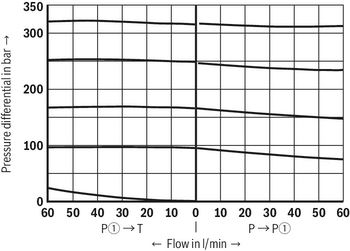

Δp-qV characteristic curves

Pressure rating 315 bar

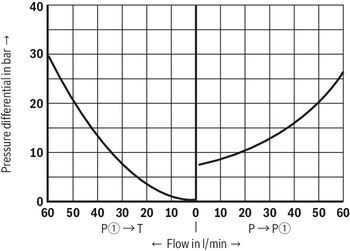

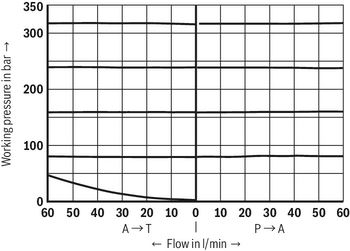

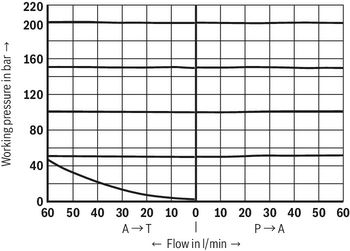

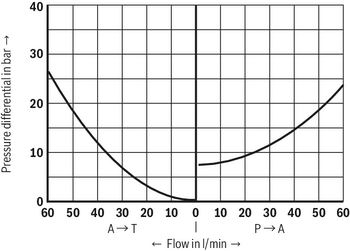

p-qV characteristic curves

Notices:

The characteristic curves apply to an output pressure pT =0 bar in the entire flow range.

System pressure = nominal pressure + 50 bar (minor dead volume).

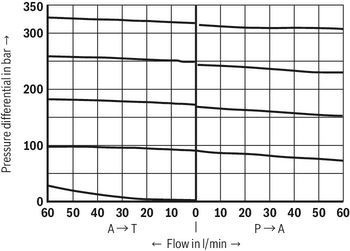

Type 3DRE and 3DREE

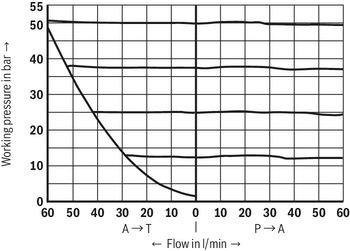

Δp-qV characteristic curves

Pressure rating 50 bar

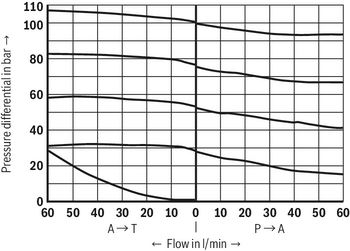

Δp-qV characteristic curves

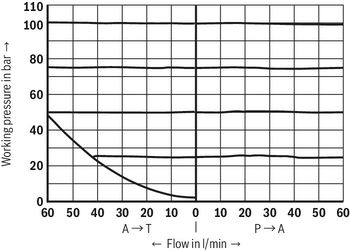

Pressure rating 100 bar

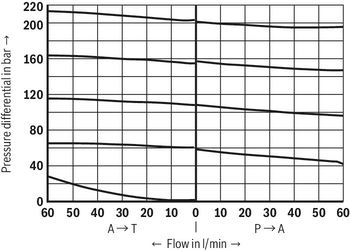

Δp-qV characteristic curves

Pressure rating 200 bar

Δp-qV characteristic curves

Pressure rating 315 bar

p-qV characteristic curves

Notices:

The characteristic curves apply to an output pressure pT =0 bar in the entire flow range.

System pressure = nominal pressure + 50 bar (minor dead volume).

Type Z3DREA

p-qV characteristic curves

Pressure rating 50 bar

p-qV characteristic curves

Pressure rating 100 bar

p-qV characteristic curves

Pressure rating 200 bar

p-qV characteristic curves

Pressure rating 315 bar

Notices:

The characteristic curves apply to an output pressure pT =0 bar in the entire flow range.

System pressure = nominal pressure + 50 bar (minor dead volume).

Type 3DREA

p-qV characteristic curves

Pressure rating 50 bar

p-qV characteristic curves

Pressure rating 100 bar

p-qV characteristic curves

Pressure rating 200 bar

p-qV characteristic curves

Pressure rating 315 bar

Notices:

The characteristic curves apply to an output pressure pT =0 bar in the entire flow range.

System pressure = nominal pressure + 50 bar (minor dead volume).

Symbols/Circuit diagrams

Type 3DRE	Type 3DREE; 3DREA ...A	Type 3DREA

Type Z3DRE	Type Z3DREE; Z3DREA ...A


Type Z3DREA

①	component side
②	plate side

Electrical connection

Connector pin assignment "A1" and "F1"

Contact	Interface assignment
Contact	"A1" (6+PE)	"F1" (6+PE)
A	24 VDC supply voltage (u(t) = 18 … 30 V); Imax ≤2 A
B	0 V (ground)
C	Reference potential actual value (pin F) (connect to ground on the control side)
D	Command value 0 … 10 V (Re > 100 kΩ)	Command value 4 … 20 mA (Re = 100 Ω + 2 V diode distance)
E	Reference potential command value (pin D) (connect to ground on the control side)
F	Actual value 0 … 10 V Imax = 5 mA	Actual value 4 … 20 mA (Load max. 475 Ω)
PE	Functional ground (directly connected to the valve housing)

Connection cable :

Up to 20 m cable length type 7 x 0,75 mm2

Up to 40 m cable length type LiYCY 7 x 1,0 mm2

EMC-compliant installation :
- Apply screening to both line ends
- Use metal mating connector (see "Accessories")

Notices:

Configurable via Bluetooth® interface.

Mating connectors, separate order, see "Accessories" and datasheet 08006.

Gerätestecker-Belegung „L1“

(M12-5, A-codiert, Class B)

Pin	Signal	Assignment interface "L1"
1	L+	Voltage supply IO-Link
2	P24	24 V voltage supply for valve electronics, pressure sensor, Bluetooth® dongle (incl. LEDs etc.) and power section of max. 1.6 A continuous current and up to 2 A as making current. Potential is galvanically separated from supply L+ and L-.
3	L-	Reference potential pin 1
4	C/Q	Data line IO-Link (SDCI)
5	N24	Reference potential pin (galvanically separated from supply L+ and L-)

Notices:

M12 sensor/actuator connection line, 5-pole; M12 connector/bush, A-coded, without shield, maximum cable length 20 m. Observe the voltage drop over the cable. Wire cross-section at least 0.34 mm2.

Mating connectors, separate order, see "Accessories" and datasheet 08006.

Communication and parameter description see data sheet 29283-FK

Connector pin assignment "Analogously configurable pressure sensor interface"

(M12-5, A-coded, bush)

Pin	Signal	Interface
1	US	Voltage supply for pressure sensor from the valve supply +UB or P24, max. 50 mA (short-circuit-proof). Observe the voltage range of the pressure sensor.
2	IMeas	Current input 4 … 20 mA, connected to GND via 100 Ω load resistance +2 V diode connector. Measuring input configurable via Bluetooth® or IO-Link.
3	GND	Reference potential; do not connect with two-wire system (current input).
4	UMeas	Voltage input 0 ... 10 V (Re min = 50 kΩ)
5	n.c.	No connection; insulated bore in the socket.
Thread	Shield (Functional ground)	Connected to the housing via the thread.

Notices:

In the condition as supplied, the actual value input PIN 4 0.1 … 10 V of the pressure sensor interface is configured.

At the factory, the interface is set for a 400 bar pressure sensor (0.1 … 10 V).

Connection cable up to 10 m/s cable length with screening connected to both line ends.

The pressure sensor signal interface is always configured to voltage signal.

The pressure sensor signal can be independently changed via IO-Link or via the Bluetooth® interface by means of "easy2connect app".

External control electronics

Connection at connector	Connection at mating connector

Connection cable

Recommendation:
– 2-wire, 0,75 mm2 or 1 mm2 plus protective grounding conductor and screening
– Only connect the screening to PE on the supply side.
– Maximum length 100 m
– The minimum supply voltage at the power supply unit depends on the length of the supply line (see diagram).

Dimensions

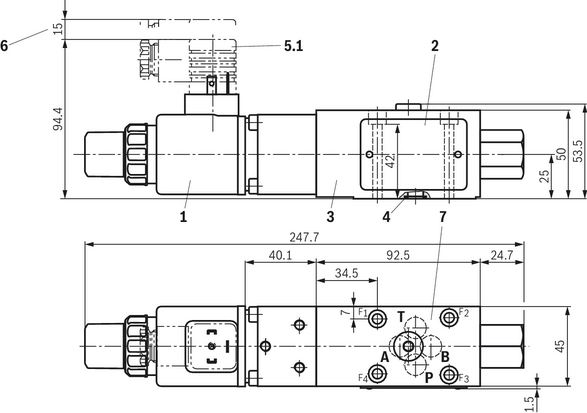

Type 3DRE

Dimensions in mm

The dimensions are nominal dimensions which are subject to tolerances.


Required surface quality of the valve contact surface

1	Proportional solenoid
2	Name plate
3	Valve housing
4	Identical seal rings for ports A, B, P, T
5.1	Mating connector without circuitry for connector "K4", separate order, see "Accessories"
6	Space required to remove the mating connector
7	Porting pattern according to ISO 4401-03-02-0-05

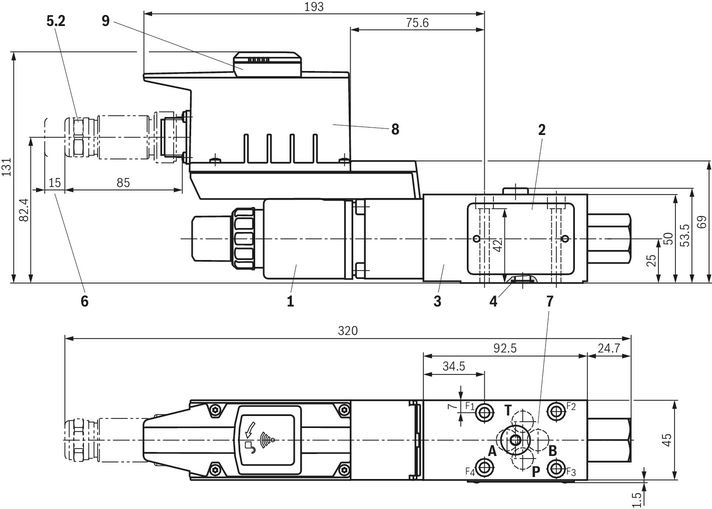

Type 3DREE

Dimensions in mm

The dimensions are nominal dimensions which are subject to tolerances.


Required surface quality of the valve contact surface

1	Proportional solenoid
2	Name plate
3	Valve housing
4	Identical seal rings for ports A, B, P, T
5.2	Mating connectors with version "A1" and "F1", separate order, see "Accessories" and data sheet 08006
6	Space required to remove the mating connector
7	Porting pattern according to ISO 4401-03-02-0-05
8	Digital on-board electronics (OBED)
9	Bluetooth® dongle (separate order, see "Accessories")

Type 3DREA

Dimensions in mm

The dimensions are nominal dimensions which are subject to tolerances.


Required surface quality of the valve contact surface

1	Proportional solenoid
2	Name plate
3	Valve housing
4	Identical seal rings for ports A, B, P, T
5.3	Mating connectors with version "L1", separate order, see "Accessories" and data sheet 08006
6	Space required to remove the mating connector
7	Porting pattern according to ISO 4401-03-02-0-05
8	Digital on-board electronics (OBED)
9	Bluetooth® dongle (separate order, see "Accessories")

Type 3DREA...A

Dimensions in mm

The dimensions are nominal dimensions which are subject to tolerances.


Required surface quality of the valve contact surface

1	Proportional solenoid
2	Name plate
3	Valve housing
4	Identical seal rings for ports A, B, P, T
5.2	Mating connectors with version "A1" and "F1", separate order, see "Accessories" and data sheet 08006
6	Space required to remove the mating connector
7	Porting pattern according to ISO 4401-03-02-0-05
8	Digital on-board electronics (OBED)
9	Bluetooth® dongle (separate order, see "Accessories")
10	External connection for pressure sensor (pressure sensor, separate order, see "Accessories")

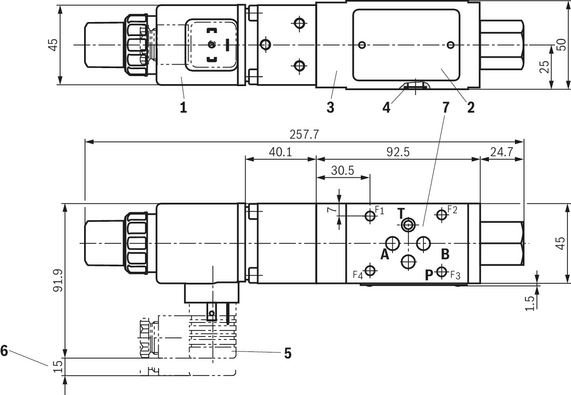

Type Z3DRE

Dimensions in mm

The dimensions are nominal dimensions which are subject to tolerances.


Required surface quality of the valve contact surface

1	Proportional solenoid
2	Name plate
3	Valve housing
4	Identical seal rings for ports A, B, P, T
5.1	Mating connector without circuitry for connector "K4", separate order, see "Accessories"
6	Space required to remove the mating connector
7	Porting pattern according to ISO 4401-03-02-0-05

Type Z3DREE

Dimensions in mm

The dimensions are nominal dimensions which are subject to tolerances.


Required surface quality of the valve contact surface

1	Proportional solenoid
2	Name plate
3	Valve housing
4	Identical seal rings for ports A, B, P, T
5.2	Mating connectors with version "A1" and "F1", separate order, see "Accessories" and data sheet 08006
6	Space required to remove the mating connector
7	Porting pattern according to ISO 4401-03-02-0-05
8	Digital on-board electronics (OBED)
9	Bluetooth® dongle (separate order, see "Accessories")

Type Z3DREA

Dimensions in mm

The dimensions are nominal dimensions which are subject to tolerances.


Required surface quality of the valve contact surface

1	Proportional solenoid
2	Name plate
3	Valve housing
4	Identical seal rings for ports A, B, P, T
5.3	Mating connectors with version "L1", separate order, see "Accessories" and data sheet 08006
6	Space required to remove the mating connector
7	Porting pattern according to ISO 4401-03-02-0-05
8	Digital on-board electronics (OBED)
9	Bluetooth® dongle (separate order, see "Accessories")

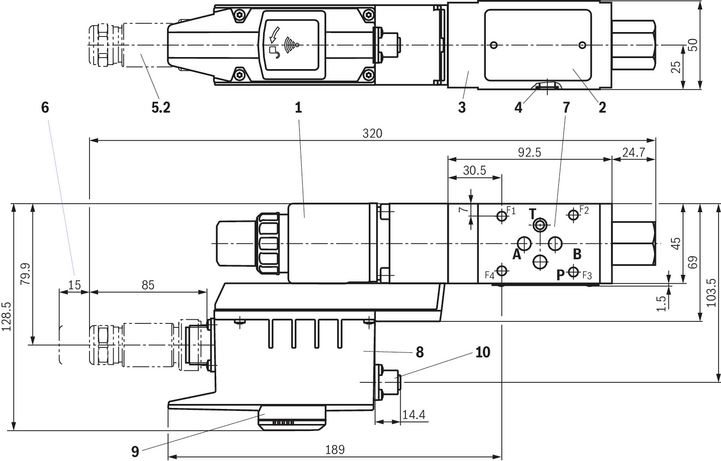

Type Z3DREA ...A

Dimensions in mm

The dimensions are nominal dimensions which are subject to tolerances.


Required surface quality of the valve contact surface

1	Proportional solenoid
2	Name plate
3	Valve housing
4	Identical seal rings for ports A, B, P, T
5.2	Mating connectors with version "A1" and "F1", separate order, see "Accessories" and data sheet 08006
6	Space required to remove the mating connector
7	Porting pattern according to ISO 4401-03-02-0-05
8	Digital on-board electronics (OBED)
9	Bluetooth® dongle (separate order, see "Accessories")
10	External connection for pressure sensor (pressure sensor, separate order, see "Accessories")

Valve mounting screws (separate order)

Type

Quantity

Hexagon socket head cap screws

Material number

3DRE…

ISO 4762 - M5 x 50 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B

(Friction coefficient μtotal = 0.09 … 0.14)

Tightening torque MA = 7 Nm ±10 %

R913043758

Z3DRE…

ISO 4762 - M5 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B

(Friction coefficient μtotal = 0.09 … 0.14)

Tightening torque MA = 7 Nm ±10 %

–

Notice:

The tightening torque of the hexagon socket head cap screws refers to the maximum operating pressure.

Subplates (separate order) with porting pattern according to ISO 4401-03-02-0-05, see data sheet 45100.

Certification

load error

Safety Instructions

load error

Downloads

Proportional pressure reducing valve, pilot-operated, with or without integrated digital electronics (OBED)
Data Sheet | RE29283 | 2021-04-01 | English, United States | PDF | 1.6MB
Product Groups: Proportional pressure reducing valves
Type 3DRE(E)(A) and Z3DRE(E)(A)

Мы предлагаем следующие способы доставки товара:

Самовывоз из пункта выдачи

Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.

Курьерская доставка по Москве

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.

Мы предлагаем следующие способы оплаты товара:

Оплата наличными

Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.

Безналичная оплата

Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.

Электронные способы

Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.

Если у вас возникнут вопросы по оформлению заказа, вы можете обратиться к нам, позвонив по телефону +7 495 137-07-02 или связавшись по электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Запрос цены или КП

Мы предоставляем официальную гарантию на всю поставляемую продукцию Bosch Rexroth.

Гарантийный сервис включает в себя:

Приемку продукции в сервисный центр для выполнения диагностики дефекта.
Ремонт продукции.
Доставку продукции до объекта заказчика.

Контакты гарантийного отдела:

Телефон: +7 495 137-07-02
E-mail: support@boschrexroth-russia.ru

Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Bosch Rexroth оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 137-07-02 или электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Специалист по решениям Bosch Rexroth:

Окажет профессиональную консультацию.
Сообщит вашу цену на продукцию.
Сообщит информацию об актуальных акциях и скидках.
Подскажет ближайшее к вам отделение с наличием нужной продукции.
Согласует с вами возможную дату и время доставки.

Запрос цены или КП

Запрос цен, наличия или консультация

Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки

Мною прочитаны и я даю согласие с документом Политика обработки ПДн

НовостиВсе новости

Bosch Rexroth LC: компактная гидравлика с давлением

В современном гидравлическом оборудовании всё чаще применяются компактные решения, позволяющие уменьшить габариты распределительных блоков и упростить монтаж. Двухходовые картриджные клапаны стали стандартом для систем, работающих под высоким давлением и с большими расходами. Специалисты по гидравли..

26 Июня, 2026 Bosch Rexroth SILENCE AZPT: тихая мощность

В гидравлических системах промышленного оборудования (станки, прессы, литьевые машины) и мобильной техники (строительные и дорожные машины) уровень шума является важным фактором. Традиционные внешние шестеренные насосы создают пульсацию потока, вызывающую вибрации и шум, что требует применения допол..

29 Мая, 2026 Bosch Rexroth — гидравлическая энергия без потерь

В гидравлических системах промышленного оборудования и мобильной техники ключевую роль играют насосы, преобразующие механическую энергию вращения в поток рабочей жидкости под давлением. От эффективности этого преобразования напрямую зависят тепловой режим системы и общие эксплуатационные расходы. Сп..

29 Апреля, 2026 BOSCH REXROTH MTX: управление сложностью

В высокотехнологичном станкостроении и автоматизированном производстве требования к системам числового программного управления постоянно растут. Обработка сложных деталей, синхронизация множества исполнительных механизмов и минимизация времени цикла становятся критическими факторами конкурентоспособ..

26 Марта, 2026 Bosch Rexort Directional poppet valves SED 6 для использования в взрывоопасных зонах

Directional poppet valves, directly operated, with solenoid actuation SED 6…XE представляют собой клапаны размером 6 из серии 1X, рассчитанные на максимальное давление до 350 бар и максимальный поток до 25 л/мин. Они доступны в версиях 3/2 и 4/2 и соответствуют стандарту портирования ISO 4401..

26 Февраля, 2026 BOSCH REXORT Характеристики и возможности клапана KSDE.8 N/P

Клапан 2/2 directional seat valve, direct operated with solenoid actuation KSDE.8 N/P (High Performance) представляет собой прямоприводный седельный клапан с соленоидным управлением, который отличается высокой надежностью и производительностью в сложных гидравлических системах. Обладает размером ..

30 Января, 2026 Bosch Rexroth Bladder-type accumulators HAB сохраняют лидирующие позиции в промышленном энергоснабжении

Баллонный аккумулятор Bosch Rexroth HAB2,5-350-6X/0G07G-2N111-CE+EAC (арт. R901451721) представляет собой электрохимический источник питания, созданный для эффективного хранения и выдачи электрической энергии. Его конструкция включает баллон с электродами и электролитом, что обеспечивает стабильную ..

28 Декабря, 2025 Bosch Rexorth Gerotor pumps with constant displacement PGZ — особенности и сферы применения

Насосы Gerotor с постоянным рабочим объёмом PGZ представлены рамками размером 4 и 5, соответствующими размерам от 20 до 140 см³. Максимальное рабочее давление достигает 15 бар, а максимальный рабочий объём — 136,3 см³. Ключевые характеристики насосов PGZ включают в себя: - фикс..

29 Ноября, 2025 Bosch Rexort CDI+ VAC08 для эффективного управления двумя дисплеями в системах ctrlX IPC

Разделитель CDI+ VAC08 обеспечивает подключение одной или двух панелей управления DR или DE к блочному ПК PR с интерфейсом CDI+. Устройство позволяет выводить идентичное видео на оба дисплея в режиме клона, что упрощает контроль и мониторинг информации в реальном времени. Особенность конструкции ..

31 Октября, 2025 Bosch Rexort Electrohydraulic pump EHP – особенности и эксплуатационные преимущества

Electrohydraulic pump EHP представляет собой приводной агрегат с фиксированным насосом и электродвигателем, который широко применяется в транспортных средствах и системах для обработки грузов. Диапазон размеров насосов варьируется от 1.0 до 22, а номинальное напряжение составляет от 12 до 110 В, что..

29 Сентября, 2025 Bosch Rexroth CFL01.1-Q2: надёжная перекрёстная связь в системах автоматизации

В сфере промышленной автоматизации стабильный обмен данными между системами управления и приводами играет ключевую роль. Модуль Bosch Rexroth Перекрёстная связь (Sercos II) CFL01.1-Q2 показывает, как продуманная инженерия способна повысить эффективность и гибкость технологических процессов. Оснащ..

11 Августа, 2025 Bosch Rexroth CDI+ VAC08: распределение видеосигнала с управлением правами доступа

На производственных площадках и в распределительных шкафах всё чаще применяются устройства, позволяющие эффективно делить интерфейсы между несколькими дисплеями. Одним из таких решений стал разделитель CDI+ VAC08 из ассортимента Bosch Rexroth, работающий с системами ctrlX IPC. Устройство позволяе..

10 Июля, 2025

Вы недавно смотрели
