Description
- CPU: Intel ATOM E3815
- RAM: 4 GB
- Operating system: Linux Ubuntu Core
- Extension slots: 1 x mPCIe interface module or mSATA mass memory
- Mass memory: 32 GB eMMC onboard
Features
- Video interface: 1 × HDMI
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | ||||||||
| P | R | 00 | . | 1 | - | - | AA | - | - | - | 1 | - | NN | NN | NN | NN | NN | NN | NN | - | H |
| Device type 1 | ||
| 01 | Embedded PC/IPC | P |
| Device type 2 | ||
| 02 | Box (build-in/ready-made) | R |
| Performance class | ||
| 03 | Performance class 2 ATOM E3815 | 21 |
| Display size | ||
| 04 | Without display | 00 |
| Hardware variant | ||
| 05 | HW type no. 1 | 1 |
| Interfaces | ||
| 06 | Standard video HDMI | 1 |
| Mass memory (Flash, SSD ...) | ||
| 07 | 1 x onboard 32 GB eMMC | 1 |
| Memory (RAM) | ||
| 08 | 4 GB RAM | 1 |
| Design & HMI display characteristics | ||
| 09 | Rexroth design | AA |
| Extension interfaces | ||
| 10 | Without | 0 |
| 1 x 64 GB plus mSATA flash 1) | 1 | |
| 1 x 256 GB plus mSATA flash | 2 | |
| 2 x Gbit LAN (restriction: only possible in conjunction with “other hardware property NA“) | B | |
| Other hardware characteristics | ||
| 11 | Basic/DIN rail assembly | NA |
| 3 x USB 2.0/DIN rail assembly | NB | |
| 2 x RS-232/422/485/DIN rail assembly | NC | |
| Operating system | ||
| 12 | Linux Ubuntu Core (IoT Gateway) | A |
| Firmware version | ||
| 13 | Version 1 | 1 |
| Reserve | ||
| 14 ... 20 | Not assigned | NN |
| Material identifier | ||
| 21 | Hardware components | H |
| 1) | In preparation |
Technical data
General data
| Type | PR2100 | |
| Ambient temperature (operation) | °C | +0 ... +50 |
| Ambient temperature (storage/transport) | °C | -20 ... +70 |
| Permissible relative humidity (operation) | % | 85% at 40 °C (non-condensing) |
| Assembly | DIN rail mounting | |
| Cooling | Convection (fanless) | |
| Protection type overall | IP20 | |
Performance data
| Type | PR2100 | |
| CPU | Intel ATOM E3815, 1.46 GHz (SingleCore) | |
| RAM | GB | 4 |
| Operating system | Linux Ubuntu Core | |
Interfaces
| Type | PR2100 | |
| Ethernet (standard) | 2 × Realtek RTL8111E GbE | |
| Ethernet (optional) | Variant NA: 2 x Gbit (Intel i350) | |
| USB-Host | 1 x USB 3.0 Variant NB: 3 x USB 2.0 | |
| Video interface (standard) | 1 × HDMI | |
| Serial interface | Variant NC: 2 x RS232/422/485 - | |
Electrical data
| Type | PR2100 | ||
| Input voltage | Operation | V DC | 24 |
| Power consumption | -20/+25% | ||
| Power consumption | W | ≤ 20 | |
| EMC | Class A | ||
| Buffering RTC | Internal battery |
Mechanical tests
| Type | PR2100 | |
| Vibration resistance | g | 2 |
| Shock resistance | g | 10 |
Hardware
| Type | PR2100 | |
| mPCIe slots | 1 x Full-Size mSATA - | |
| Flash memory | 32 GB eMMC onboard | |
| Optional memory | 64 GB, mSATA SSD 256 GB, mSATA SSD - - - | |
Systems
Software tool
WebConnector
Software tool
WebConnector
- Platform-independent - runs on all devices with a Java Runtime (Java Runtime Environment, JRE)
- Rapid data exchange via WebSockets
- Communication with subordinate devices via OPC UA and Open Core Interface
- Integrated web server for web-based HMIs
IoT system for new and existing machines
IoT Gateway
IoT system for new and existing machines
IoT Gateway
- Plug-and-run – browser-based configuration
- Everything from a single source – solutions ranging from sensors to the cloud
- Connectivity – connection of a multitude of data sources and IT systems possible
- Device Management via Device Portal – central access to management of your IoT devices (remote access, backup/restore, software deployment)
- Firewall and VPN network segmentation, protection against unauthorized access by third parties and setup of a VPN tunnel for secure remote maintenance

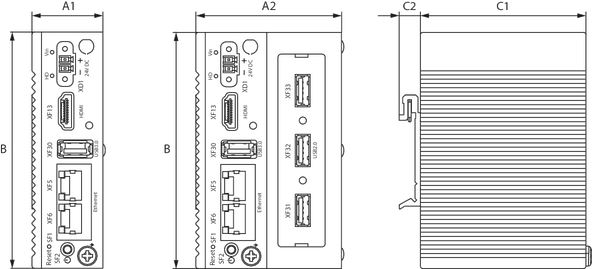

Dimensions
Dimensions
| Type | PR2100 | |
| A1 | mm | 30 |
| A2 | mm | 60 |
| B | mm | 100 |
| C1 | mm | 70 |
| C2 | mm | 9 |
| Weight | kg | 0.4 |
