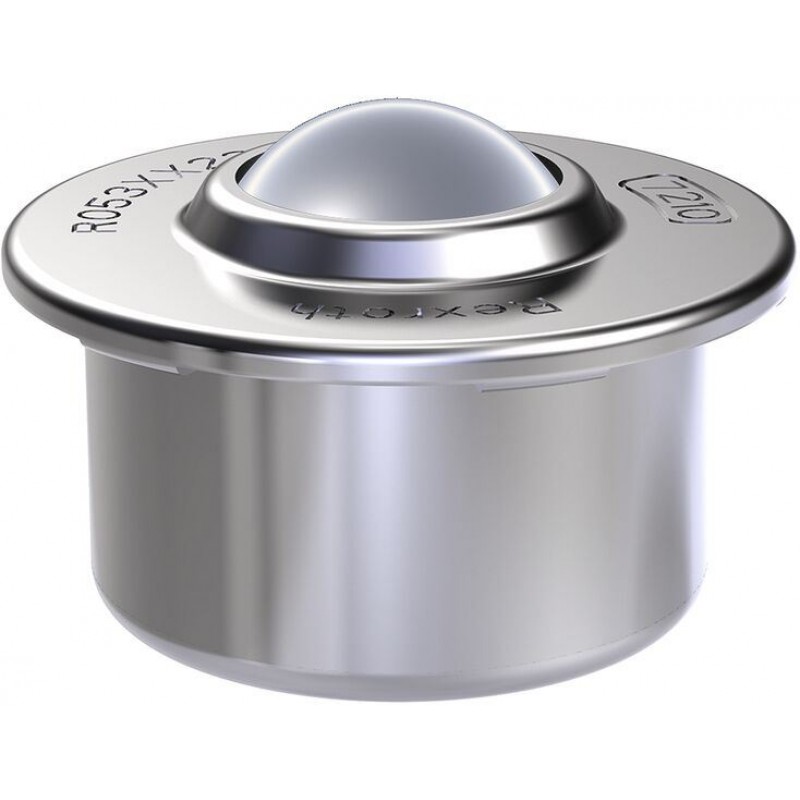

Description
- With sheet steel housing
- Extremely small ball transfer unit
- For general applications
- All parts made from corrosion-resistant steel
- Balls made from 1.3541 / 1.4034
Technical data
Technical data
| Size | 8 | 12 | 15 | 22 | 30 | |
| C | N | 100 | 180 | 370 | 970 | 1900 |
| C0 | N | 200 | 350 | 700 | 1800 | 3000 |
| vmax 1) | m/s | 2 | ||||
| m | kg | 07 | 0.018 | 0.38 | 0.132 | 0.265 |
| Operating conditions | ||||||
| Size | 8 | 12 | 15 | 22 | 30 | |
| Admissible operating temperature (min ... max) 2) | -30 °C ... +100 °C | |||||
| 1) | In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life needs to be reckoned with depending on the load. |
| 2) | At temperatures above 100 °C, only bright metal load balls without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out. |
At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Note the reduction in load capacity! Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out.
Temperature factor
| Temperature (°C) | Temperature factor ft |
| 125 | 0,9 |
| 150 | 0,8 |
| 175 | 0,7 |
| 200 | 0,5 |
The load capacity must be multiplied by the temperature factor.
Legend
| Symbol | Description | Unit | Picture |
| C | Dynamic load capacity | N |  |
| C0 | Static load capacity | N | |
| vmax | Conveying speed | m/s | |
| m | Mass | kg |
Technical data
Fields of application
Applications
- General-purpose machines
- Feed tables for sheet-metal working machines
- Fixtures for press brakes
- Feed devices for machining centers
- Drilling tables and motor-driven supporting tables
- Assembly aids in the manufacture of large engines and motors
- Construction of special-purpose machines
- Aerospace industry
- Beverages and stone-processing industries
- Not suitable for use under water
Conveyor systems
- Ball transfer tables, turntables and switches for sorting and distribution systems
- Crossover sections of continuous conveyors
- Baggage sorting systems at airports
- Transport of steel tubes and pipes
- Lifting platforms
Dimensions
Dimensions
| Size | dw | D | Tolerance for D | D1 | h | Tolerance for h | H | a | b |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| 8 | 7.938 | 12.6 | ± 0.055 | 17 | 4.8 | ± 0.15 | 11.2 | 1.9 | 3.2 |
| 12 | 12 | 18 | 23.3 | 7.4 | 15.4 | 2.1 | 4.4 | ||
| 15 | 15.875 | 24 | ± 0.065 | 31 | 9.5 | ± 0.2 | 21.5 | 2.5 | 6.1 |
| 22 | 22.225 | 36 | ± 0.08 | 45 | 9.8 | 29.5 | 2.9 | 5.7 | |
| 30 | 30.162 | 45 | 55 | 13.8 | ± 0.3 | 37.5 | 3.7 | 7.9 |
| 1) | Press fit |
| 2) | with tolerance ring |
| 3) | Gluing in |

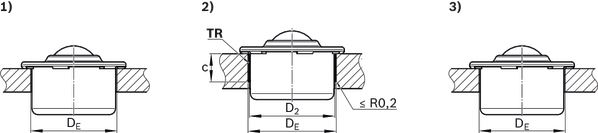

Installation dimensions
| Size | Press fit | with tolerance ring | Gluing in | ||||||||||
| 2 mm sheet steel | 16 mm wood | Part number | D2 | Tolerance for D2 | DE | Tolerance for DE | c | Tolerance for c | DE | Tolerance for DE | |||
| DE | Tolerance for DE | DE | Tolerance for DE | Tolerance ring | |||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 8 | 12.57 | + 0.03 | 12.5 | + 0.05 | R081001252 1) | 12.8 | + 0.2 | 13.87 | + 0.15 | 6.1 | + 0.2 | 12.7 | + 0.2 |
| 12 | 17.97 | + 0.03 | 17.9 | + 0.05 | R081001801 2) | 18.2 | 19.7 | + 0.2 | 18.1 | ||||
| 15 | 23.95 | + 0.05 | 23.9 | + 0.05 | R081002403 2) | 24.2 | 25.7 | 7.1 | 24.1 | ||||
| 22 | 35.9 | + 0.05 | 35.85 | + 0.07 | R081003605 2) | 36.2 | 37.7 | 12.1 | 36.1 | ||||
| 30 | 44.85 | + 0.05 | 44.8 | + 0.1 | R081004501 3) R081004551 3) | 45.2 | 46.7 | 45.1 | |||||
| 1) | made of corrosion-resistant steel 1.4310 |
| 2) | made from spring strip 1.1248, alternatively 1.8159 |
| 3) | R081004501 made from spring strip 1.1248, alternatively 1.8159; R081004551 made from corrosion-resistant steel 1.4310 |
Mounting
Assembling the ball transfer units with tolerance ring
Ball Transfer Unit Installation Examples
Certification
Directives and standards
Safety Instructions
Notes
Ordering codes
Ordering code
| Size | Part number | Short product name | CAD data | Buy |
| 8 | R053060800 1) | KU-N8-OFK | ||
| 12 | R053061200 1) | KU-N12-OFK | ||
| 15 | R053061500 1) 2) | KU-N15-OFK | ||
| 22 | R053062200 2) | KU-N22-MFG | ||
| 30 | R053063000 2) | KU-N30-MFG |
| 1) | Without felt seal |
| 2) | Ball Transfer Unit with bottom hole on request |
Explanatory example of the short product name
| KU-N30-MFG (R053063000) | |||
| KU | N | 30 | MFG |
| Balltransfer unit | All parts made from corrosion-resistant steel | Size | With felt seal Oiled |
Downloads
 | Ball Transfer Units Catalog | R999000498 | 2016-07-01 | English | PDF | 4.8MB Product Groups: Ball transfer units and tolerance rings |
