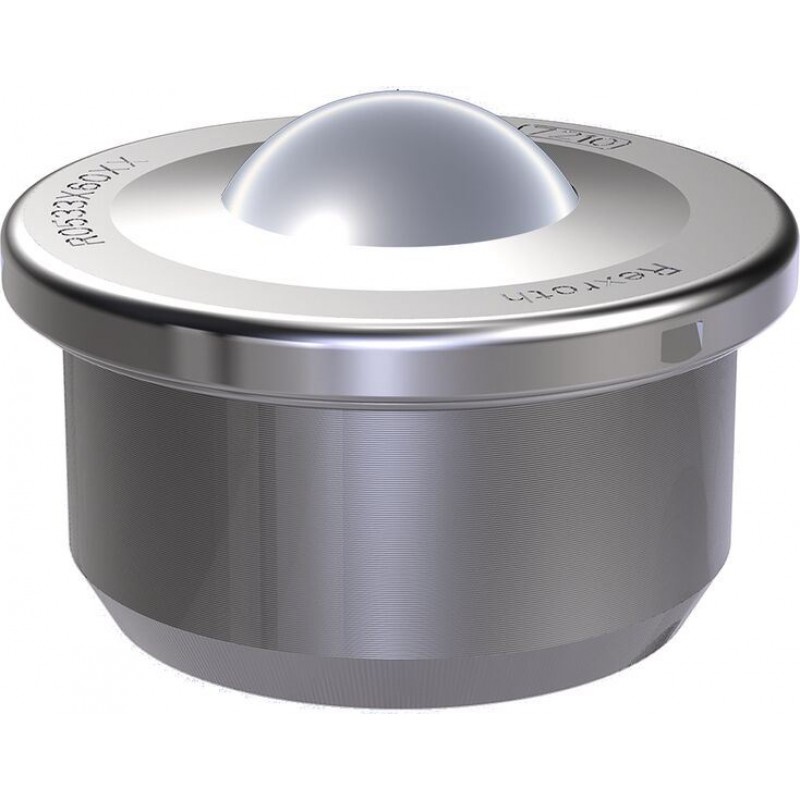

Description
- With solid steel housing
- For high loads
- Alternatively available with polymer wiper seal
- Cover and housing galvanized
- Balls made from antifriction bearing steel 1.3505
Features
- With felt seal
Technical data
Technical data
| Size | 60 | |
| C | N | 13000 |
| C0 | N | 30000 |
| vmax 1) | m/s | 2 |
| m | kg | 3.5 |
| Operating conditions | ||
| Size | 60 | |
| Admissible operating temperature (min ... max) 2) | -30 °C ... +100 °C | |
| 1) | In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life needs to be reckoned with depending on the load. |
| 2) | At temperatures above 100 °C, only bright metal load balls without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out. |
At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Note the reduction in load capacity! Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out.
Temperature factor
| Temperature (°C) | Temperature factor ft |
| 125 | 0,9 |
| 150 | 0,8 |
| 175 | 0,7 |
| 200 | 0,5 |
The load capacity must be multiplied by the temperature factor.
Legend
| Symbol | Description | Unit | Picture |
| C | Dynamic load capacity | N |  |
| C0 | Static load capacity | N | |
| vmax | Conveying speed | m/s | |
| m | Mass | kg |
Technical data
Fields of application
Applications
- General-purpose machines
- Feed tables for sheet-metal working machines
- Fixtures for press brakes
- Feed devices for machining centers
- Drilling tables and motor-driven supporting tables
- Assembly aids in the manufacture of large engines and motors
- Construction of special-purpose machines
- Aerospace industry
- Beverages and stone-processing industries
- Not suitable for use under water
Conveyor systems
- Ball transfer tables, turntables and switches for sorting and distribution systems
- Crossover sections of continuous conveyors
- Baggage sorting systems at airports
- Transport of steel tubes and pipes
- Lifting platforms
Dimensions
Dimensions
| Size | dw | D | Tolerance for D | D1 | h | Tolerance for h | H | a | b |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| 60 | 60.325 | 100 | ± 0.11 | 117 | 29.5 | ± 0.2 | 77.5 | 13 | 14.5 |
| 1) | with tolerance ring |
| 2) | Gluing in |
Installation dimensions
| Size | with tolerance ring | Gluing in | |||||||
| Part number 1) | D2 | Tolerance for D2 | DE | Tolerance for DE | c | Tolerance for c | DE | Tolerance for DE | |
| Tolerance ring | |||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 60 | R081010002 | 100.3 | + 0.5 | 102.5 | + 0.35 | 19.1 | + 0.3 | 100.15 | + 0.25 |
| 1) | made from spring strip 1.1248, alternatively 1.8159 |
Mounting
Ball Transfer Unit Installation Examples
Certification
Directives and standards
Safety Instructions
Notes
Ordering codes
Ordering code
| Size | Part number | Short product name | CAD data | Buy |
| 60 | R053316010 | KUM-B60-MFG | ||
| R053316110 1) | KUM-B60-BL-MFG-SA |
| 1) | Ball Transfer Unit with bottom hole and lube port |
Downloads
 | Ball Transfer Units Catalog | R999000498 | 2016-07-01 | English | PDF | 4.8MB Product Groups: Ball transfer units and tolerance rings |
