Description
- Term definition
- Product description
- Engineering notes and safety information
- Installation
Product description
Runner Block

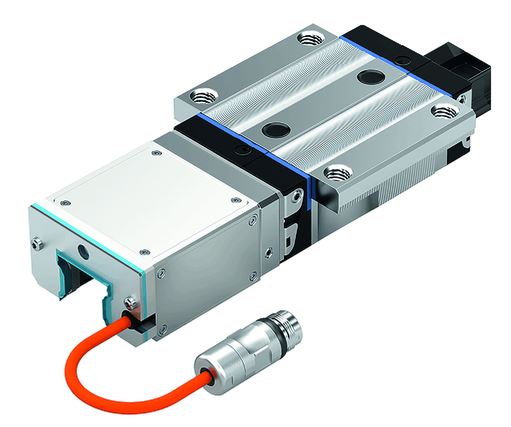

Runner Block with mounted adapter plate and mounted scanner
- Same mounting hole pattern and mounting dimensions as Standard Runner Blocks
- An adapter plate enables the scanner* to be replaced during servicing without removing the Runner Block.
* Scanner fastening screws must be accessible. There must sufficient clearance at the end of the rail to remove the scanner.
Guide rail

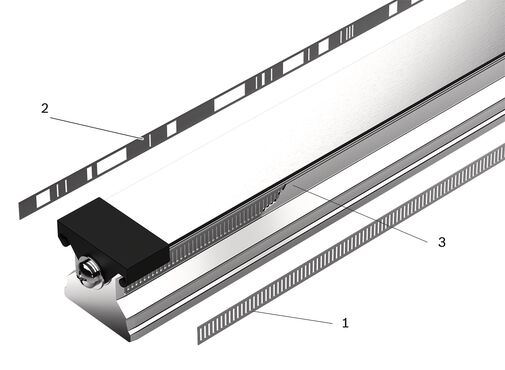

Guide rail with integrated steel scale
- Same mounting hole pattern and mounting dimensions as Standard Guide Rails
- Incremental scale (1), and optional absolute code band (2) (IMS-A), or reference marks (IMS-I).
- Scales (1)/(2) protected by a hermetically sealed welded stainless-steel band (3)

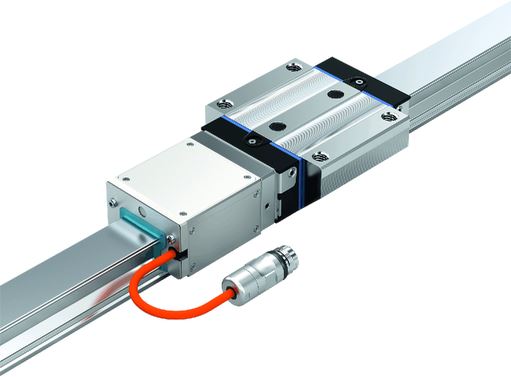

Integrated Measuring System IMS for Ball and Roller Rail Systems
Rexroth Ball And Roller Rail Systems can be supplied with a completely integrated, inductive position measuring system. The position measuring system consists of a scanner, a scale, reference marks, and the absolute code band. The scanner with sensors is mounted on the runner block. As it travels over them, it evaluates the scale, the reference marks or the absolute code band which are incorporated into the guide rail. This mechatronic system combines the functions of guidance and measurement into one unit and opens up new, ideal opportunities in machine design.
Highlights: Integrated measuring system
- The guide system and the measuring system form one unit, building on standard guide elements (it is possible to use a standard runner block on the IMS guide rail)
- No additional space is required
- No external mounting surfaces are required for measuring systems
- No measurement inaccuracies due to parallelism offset between the measuring system and the guide system
- Retrofit and replacement is simple due to the proven Rexroth interchangeability
- Position measurement directly on the workpiece/tool
- Protection type IP67 with no additional measures required
- Thanks to full integration of the measuring system components into the guide system, no complex installation or adjustment work is needed
- The runner block, scanner and guide rail can each be individually replaced during servicing
Inductive measuring principle
- Contact-free scanning ensures zero maintenance
- Resistant to water, oil, dust, shavings, etc.
- Insensitive to magnetic fields
- One-piece guide rails: standard length up to 4,500 mm
- Several sensor units can be mounted on one rail
Incremental measuring procedure
- Precise position detection thanks to a high-precision, incremental scale combined with distance-coded reference marks or single reference marks
- High resolution thanks to 40 µm signal period
Absolute measuring procedure
- Precise, absolute position detection thanks to an additional absolute code band
- No battery necessary for buffering the absolute information
Structural design
| 1 | Guide rail with scale, reference marks or absolute code band |
| 2 | Front seal |
| 3 | Support plate |
| 4 | Scanner |
| 5 | Adapter plate (fixed to the guiding wagon) |
| 6 | Runner Block |
| 7 | Cable and connector |
| 8 | Reference marks or absolute code band |
| 9 | Incremental scale |
| 10 | Cover provided by welded stainless-steel band (depending on the version, both sides) |
| 11 | Sensor for reference marks or absolute code band |
| 12 | Measuring sensor |
| 13 | Evaluation electronics |
Product description
Project planning information
Product overview and type key roller runner blocks
Product Overview and Type Designation, Roller Guide Rails
Product Overview and Type Designation, Ball Runner Blocks
Product Overview and Type Designation, Ball Guide Rails
Mounting
Please also consult the instructions for notes about mounting and maintenance
Mounting instructions / maintenance instructions
Information
IMS – Integrated Measuring System: absolute/incremental – inductive – accurate – integrated
Safety Instructions
Safety instructions
Downloads
 | Integrated Measuring System IMS for Ball and Roller Rail systems / Instructions for electrical interfaces / only PDF Manual | R320103166_EN | 2017-10-01 | English | PDF | 2.4MB Product Groups: Integrated measuring systems |
| Integrated Measuring System IMS for Ball and Roller Rail Systems Manual | R320103262_EN | 2020-07-01 | English | PDF | 1.8MB Product Groups: Integrated measuring systems |
| Catalog Integrated Measuring System IMS for Ball and Roller Rail Systems Catalog | R999000487 | 2020-06-01 | English | PDF | 2.7MB Product Groups: Ball Rail Systems, Roller Rail Systems, Integrated measuring systems Catalog Integrated Measuring System IMS for Ball and Roller Rail Systems |
