Description
- Description and technical data of scanner
- Signal variations IMS-I
- Digital interfaces IMS-A
- Connector and cable
- Design
- Technical Data
- Mounting side
- Direction of Movement
Technical data
Scanner on the Runner Block
The basic design of the scanner is explained here, using a Ball Runner Block as an example. The scanner for Roller Runner Blocks differs only in minor details. The scanner is mounted on the Runner Block via the adapter plate. It is no wider and no higher than the Runner Block. The mounting hole pattern of the Runner Block remains unchanged. Advantage: The mounting of the Runner Block on the adjoining structure remains the same even with a measuring system. The scanner contains the non-contacting, inductive sensor system for the incremental or absolute measuring function. It also contains the required electronics.

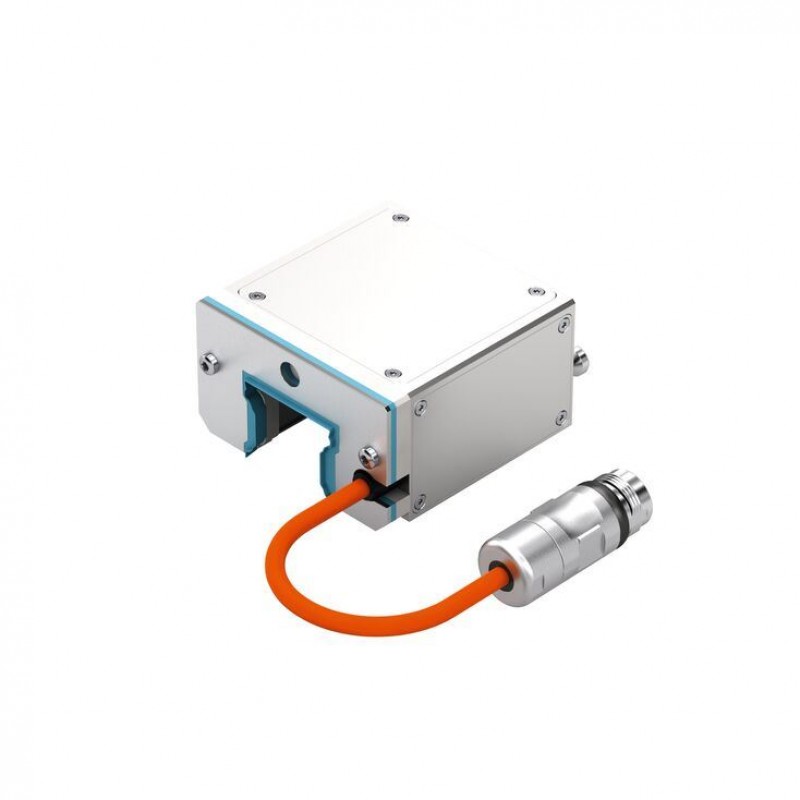

Scanner
The aluminum scanner housing accommodates all of the other scanner components. It is screwed down with the adapter plate that is firmly connected to the Runner Block, thus forming a unit. During servicing, the scanner can be exchanged via the adapter plate without having to disassemble the Runner Block. The housing protects the electronic and mechanical components from dirt and shocks.

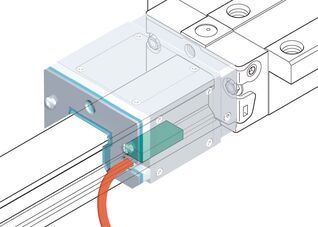

Measuring sensor
The non-contacting measuring sensor, which scans the incremental scale in the guide rail, is located on one side of the scanner. It consists of a multitude of transmitter and receiver coils. The measuring sensor is always located on the same side as the cable.

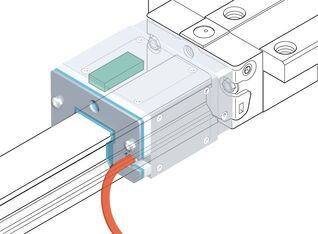

Reference sensor / absolute sensor
The reference sensor or absolute sensor is located on the opposite side of the scanner. This reference sensor scans the reference marks, the absolute sensor, the absolute code band in the Guide Rail, thus allowing the absolute position of the Runner Block on the Guide Rail to be determined.

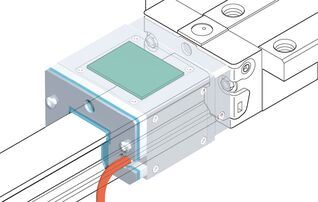

Evaluation electronics
The evaluation electronics (printed circuit board) contains all the electronics for generating, processing, calibrating and transmitting the signal. These signals are evaluated by external electronics (for example, IndraDrive servo controller from Rexroth).

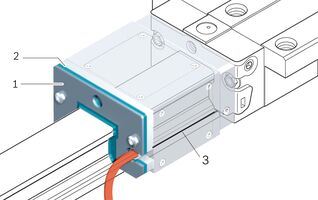

Seal
To provide added protection, a front seal (1) is screwed onto the scanner. This prevents water, oil, cooling lubricant, shavings and dust from working their way into the scanner from the end face. The bottom side of the scanner is protected by longitudinal seals (3).
Support plate
The support plate (2) is mounted between the front seal and the scanner. It has a little clearance to the Guide Rail and limits oscillations of the scanner for applications with strong vibrations and shocks.
Connector/cable
The connector and cable connect the scanner to external electronics.
| Operating temperature | 0°C ... +50°C |
| Storage-/ transport temperature | -10 ... +70°C |
| Relative air humidity during storage | max. 95% |
| Relative air humidity in operation | max. 80% at 20°C |
| MTTF | 100 yrs |
Safe-Motion
None of the output signals may be used for the drive-integrated safety functions of the drive control unit. Exceptions: Safety functions which do not rely on the encoder signals
Scanner mounting side
The scanner mounting side defines on which side the reference edge (2) of the Runner Block is located in relation to the incremental scale (1) in the Guide Rail when the scanner is mounted.
Mounting side right (R)
Mounting side left (L)
Design notes:
The direction for sliding on the IMS Runner Block must be defined during the construction. The IMS Runner Block must be slid on in such a way that the cable outlet is always located on the side of the incremental scale of the IMS Guide Rail.
Motion direction for positive counting of sensor signals (for analog and digital output signals)
Downloads
 | Integrated Measuring System IMS for Ball and Roller Rail systems / Instructions for electrical interfaces / only PDF Manual | R320103166_EN | 2017-10-01 | English | PDF | 2.4MB Product Groups: Integrated measuring systems |
| Integrated Measuring System IMS for Ball and Roller Rail Systems Manual | R320103262_EN | 2020-07-01 | English | PDF | 1.8MB Product Groups: Integrated measuring systems |
| Catalog Integrated Measuring System IMS for Ball and Roller Rail Systems Catalog | R999000487 | 2020-06-01 | English | PDF | 2.7MB Product Groups: Ball Rail Systems, Roller Rail Systems, Integrated measuring systems Catalog Integrated Measuring System IMS for Ball and Roller Rail Systems |
