Description
- Easy installation and application: completely integrated linear motor system as a ready-to-install solution for design engineers.
- High speed and acceleration: synchronous direct linear drive. High overload factor and high dynamics are possible.
- Precise movement and high dynamics over the entire service life: thrust is generated directly on the load. There is no mechanism converting rotary to linear motion, no transmission, and thereby high rigidity. Linear, high-resolution position measuring system.
- Extreme load cycles are possible: excellent heat dissipation through liquid cooling of the primary part.
- Easy maintenance: Little maintenance effort required due to the low-wear direct drive and the easy-to-maintain guide system.
Features
- Openly configurable thanks to a variety of options
- Extremely compact precision aluminum profile with fly-cut rail seat, reference edge, and base area for optimal travel
- The ball rail systems are easy to maintain due to the central lube port on each side of the carriage
- Built-in elements are protected by high-quality, welded high-speed bellows resistant to oil and moisture
- Clamping element is optional
- Ball runner block in a high-precision design
Product description

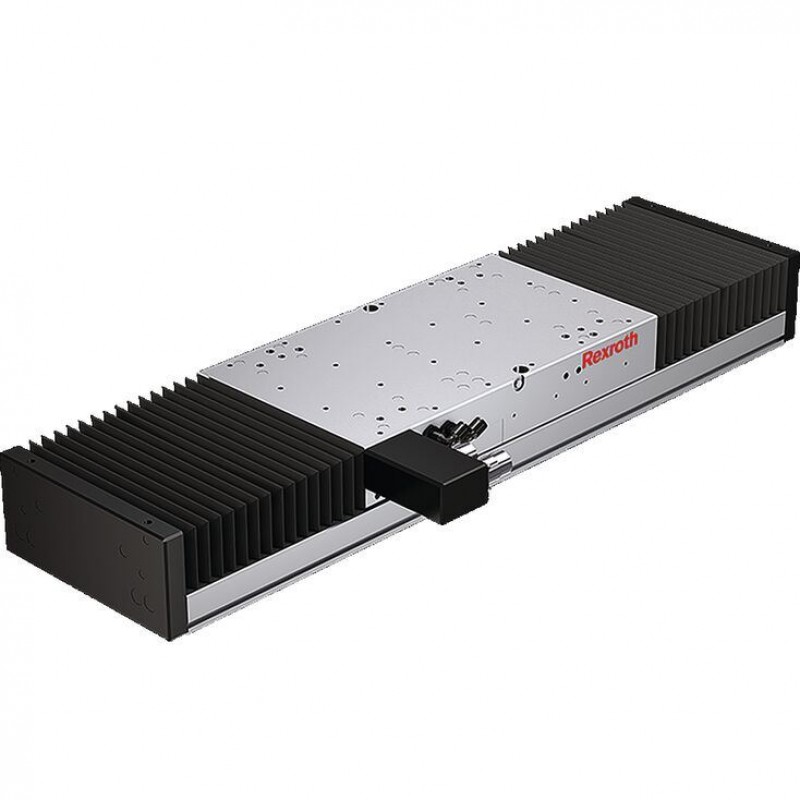

Ball Rail Tables TKL with Ball Rail System and iron-core Linear Motor from Rexroth are particularly suited for use where electromechanical axes are limited due to their dynamics, precision, rigidity and/or maintenance requirements.
Structural design
- End block
- Guide rail with integrated scale
- Linear motor secondary part
- Guide rail
- Carriage (aluminum)
- Linear motor primary part
- Scanner with sensors
- Ball Runner Block (4 or 6 pieces)
- Polyurethane protective bellows (optional)
- Rubber buffer
- Base plate (aluminum)
- Plug holder for motor flange socket and position measuring system
- Clamping unit (optional)
Attachments
- Mechanical switch (with additional components)
- Cable duct (aluminum alloy)
- Switching cam
- Proximity switch (with additional components)
Technical data
Maximum values for each size
| Size | TKL-225 | TKL-275 | TKL-325 | |
| C 1) | N | 96100 | 121100 | 224100 |
| Mt | Nm | 7600 | 12100 | 26800 |
| ML | Nm | 12900 | 18200 | 42700 |
| Mx max | Nm | 2330 | 4320 | 10120 |
| My max | Nm | 3940 | 6520 | 24130 |
| Mz max | Nm | 2670 | 3530 | 8800 |
| Fy max | N | 19800 | 23400 | 30800 |
| Fz1 max | N | 32100 | 46800 | 89000 |
| Fz2 max | N | 29200 | 43200 | 84400 |
| Lmax | mm | 3940 | ||
| amax 2) | m/s² | 100 | ||
| vmax 3) | m/s | 5 | 4.1 | |
| smax perm | mm | 3525 | 3471 | 3363 |
| 1) | Pay attention to the loads |
| 2) | Influence sizes are: Power cable chain, wiring, customer mounting base (frame), etc. |
| 3) | The attainable speeds are dependent on the supply voltage and its tolerance. |
| Maximum values depends on the selected configuration. |
Legend
| Symbol | Description | Unit |
| C | Dynamic load capacity, linear guide | N |
| Mt | Dynamic torsional moment load capacity | Nm |
| ML | Dynamic longitudinal moment load capacity | Nm |
| Mx max | Maximum admissible torsional moment around the x-axis | Nm |
| My max | Maximum admissible torsional moment around the y-axis | Nm |
| Mz max | Maximum admissible torsional moment around the z-axis | Nm |
| Fy max | Maximum dynamic load in y-direction | N |
| Fz1 max | Maximum dynamic load in z-direction | N |
| Fz2 max | Maximum dynamic load in z-direction | N |
| Lmax | Maximum length | mm |
| amax | Maximum acceleration travel | m/s2 |
| vmax | Maximum permissible speed | m/s |
| smax perm | Maximum permissible travel range | mm |
Accessories

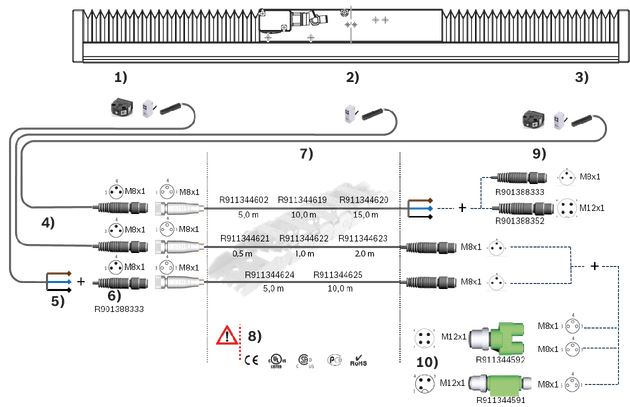

Combination examples
| 1) | End of range (‒) |
| 2) | Reference |
| 3) | End of range (+) |
| 4) | Sensors with plug |
| 5) | Sensors with free cable end |
| 6) | Plug |
| 7) | Sensor extensions |
| 8) | Performance specification: suitable for flexing installation, torsion-resistant, weld spark-resistant |
| 9) | Plug |
| 10) | Adapter |

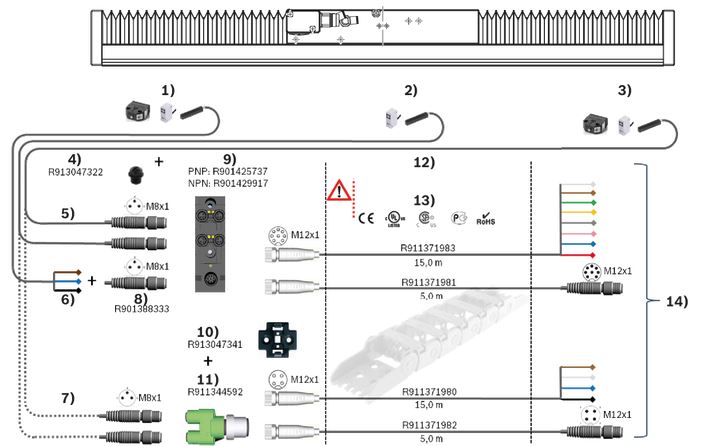

| 1) | End of range (‒) |
| 2) | Reference |
| 3) | End of range (+) |
| 4) | Screw plug |
| 5) | Sensors with plug |
| 6) | Sensors with free cable end |
| 7) | Sensors with plug |
| 8) | Plug |
| 9) | Passive distributor |
| 10) | Holding plate |
| 11) | Passive distributor |
| 12) | Extensions for passive distributors |
| 13) | Performance specification: suitable for flexing installation, torsion-resistant, weld spark-resistant |
| 14) | Higher-level control system |
Proximity sensor with M8x1 plug
Proximity sensor with M8x1 plug
Additional components for inductive sensor
Additional components for inductive sensor
Mechanical switch with M8x1 plug
Mechanical switch with M8x1 plug
Additional components for mechanical switch
Additional components for mechanical switch
Extension pieces - assembled on one side
Extension pieces - assembled on one side
Extension pieces - assembled on two sides
Extension pieces - assembled on two sides
Plug-in connector
Plug-in connector
Adapter
Adapter
Passive distributors
Passive distributors
Holding clip
Holding clip
Plug screw
Plug screw
Extension pieces
Extension pieces
Cable duct
Cable duct
Switching angle
Switching angle
Safety Instructions
load errorDownloads
 | Declaration of Incorporation for single axis Linear Motion Systems Certificate | R320103141 | 2020-06-01 | All languages | PDF | 409k Product Groups: Linear axes and electromechanical cylinders |
| Safety Instructions for Linear Motion Systems Manual | R320103152_en | 2015-01-01 | English | PDF | 593k Product Groups: Linear axes and electromechanical cylinders |
| Schienenführungstische TKL Manual | R320103154 | 2017-05-01 | German | PDF | 3.3MB Product Groups: Ball Rail Tables |
| Ball rail tables TKL Manual | R320103154_EN | 2017-05-01 | English | PDF | 7.3MB Product Groups: Ball Rail Tables |
| Ball Rail Tables TKL Catalog | R999001340 | 2017-05-01 | English | PDF | 6.3MB Product Groups: Ball Rail Tables |
