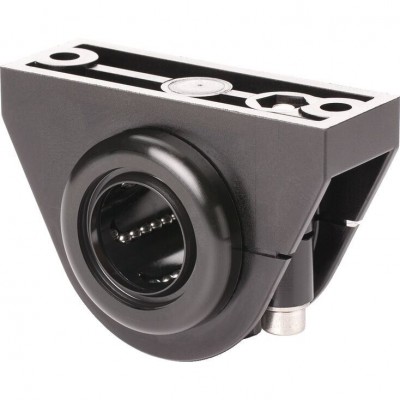

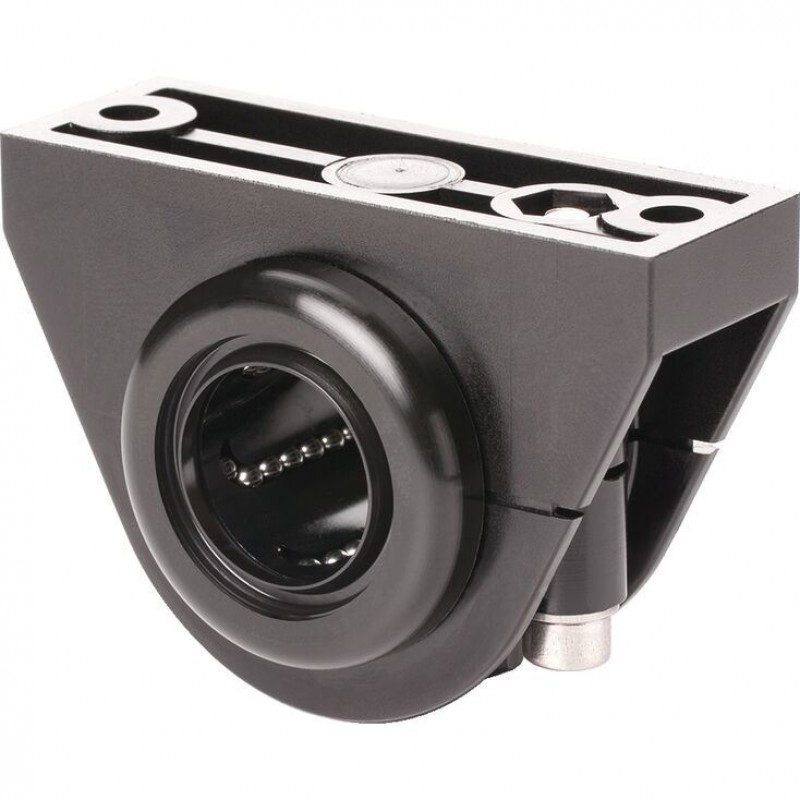

Linear Sets with Segmental Linear Bushings, adjustable, stainless, R1060 LSK-..-DD-NR
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Pillow Block Housing made of reinforced PA
- Segmental Linear Bushing
- Lightweight, stable and affordable
- Two interchangeable wiper seals
- Radial clearance adjustable
Features
- A2 stainless steel bolt, washer and nut
Technical data
General technical data
| Ø d | mm | 12 | 16 | 20 | 25 | 30 | 40 |
| amax | m/s² | 150 | |||||
| vmax | m/s | 3 | |||||
| m | kg | 0.041 | 0.063 | 0.077 | 0.158 | 0.277 | 0.47 |
| FR 1) | N | 1.5 | 2 | 2.5 | 3 | 4 | 5 |
| Breakaway force 2) | N | 3 | 4.5 | 5 | 7 | 9 | 12 |
| Radial clearance | Comes clamped to h5 shaft (lower limit) and set to zero clearance | ||||||
| Operating conditions | |||||||
| Permissible ambient temperature (min ... max) | -10 °C ... +65 °C | ||||||
| 1) | Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| 2) | Frictional drags generated by Linear Bushings with seals on both ends when not under radial load. This depends on speed and lubrication. |
Load capacities and load moments
| Ød | mm | 12 | 16 | 20 | 25 | 30 | 40 |
| C 1) | N | 240 | 360 | 510 | 820 | 1200 | 1940 |
| C0 1) | N | 330 | 490 | 690 | 1090 | 1570 | 2610 |
| 1) | The load ratings indicated are minimal values as the orientation and direction of load cannot always be clearly defined. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| amax | Maximum acceleration travel | m/s2 |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| FR | Friction force | N |
| m | Mass | kg |
| vmax | Maximum permissible speed | m/s |
Effect of load direction on load rating
The listed load ratings should be chosen depending on installation in minimum or maximum position and should be based on the calculations. If the load direction is clearly defined and the Linear Bushings can be installed in maximum position, the load ratings Cmax. (dynamic load rating) and C0 max (static load rating) can be used. If aligned installation is not possible or the load direction is not defined, the minimum load ratings must be used.
Reduced load capacity with short stroke
In case of a short stroke, the service life of the shaft is less than that of the segmental Linear Bushing. The load ratings C specified in the tables must therefore be multiplied by the factor f.s .
Definition of dynamic load ratings

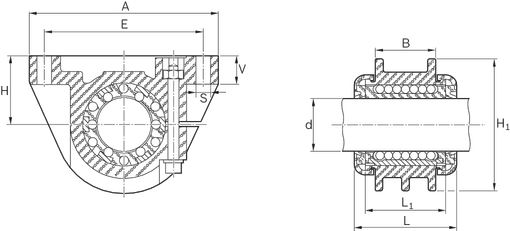

Dimensions
Dimensions
| Ød | mm | 12 | 16 | 20 | 25 | 30 | 40 |
| A | mm | 55 | 66 | 69 | 87 | 97 | 124 |
| B | mm | 20 | 22 | 23 | 30 | 36 | 48 |
| E | 43 mm ±0.15 | 53 mm ±0.2 | 58 mm ±0.25 | 72 mm ±0.25 | 80 mm ±0.3 | 103 mm ±0.3 | |
| H 1) | 18 mm ±0.05 | 22 mm ±0.05 | 25 mm ±0.08 | 30 mm ±0.08 | 35 mm ±0.1 | 45 mm ±0.1 | |
| H1 | mm | 35 | 42 | 50 | 60 | 70 | 90 |
| L | mm | 31 | 35 | 38 | 46 | 55 | 67 |
| L1 | mm | 24 | 28 | 30 | 37 | 44 | 56 |
| L1 | 24 mm | 28 mm | 30 mm | 37 mm | 44 mm | 56 mm | |
| S | mm | 4.4 | 5.5 | 6.6 | 8.6 | ||
| V | mm | 8 | 9.5 | 10.5 | 11.5 | 13 | 17 |
| 1) | In relation to nominal shaft dimension "d" |
Project planning information
Selection guide for operation under difficult conditions
For constantly humid or damp conditions caused, for instance, by water-based coolants/lubricants, we recommend the stainless steel Linear Bushing with parts made of steel in accordance with ISO 683-17 / EN 10088.
Life expectancy calculation
Mounting
General mounting instructions

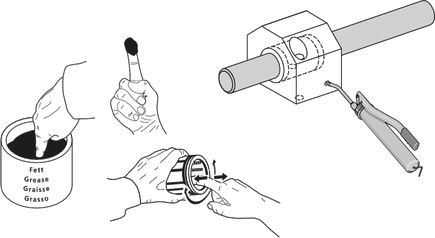

Commissioning
Linear sets with segmental Linear Bushings do not come with initial lubrication. Grease the Linear Bushings before use. Service life data is based on initial lubrication and relubricated Linear Bushings.
Maintenance
Lubrication
Accessories
Wiper seals for corrosion-resistant Segmental Linear Bushings
Wiper seals for corrosion-resistant Segmental Linear Bushings
- Metal case
- Elastomer wiper seal
- For axial securement.
Certification
Directives and standards
Safety Instructions
load errorDownloads
 | Linear Bushings and Shafts Manual | R320103669 | 2005-07-01 | English, French, German, Italian | PDF | 3.6MB Product Groups: Linear Bushings and Shafts |
| Linear Bushings Catalog | R999000488 | 2015-02-01 | English | PDF | 14.9MB Product Groups: Linear Bushings and Shafts |
