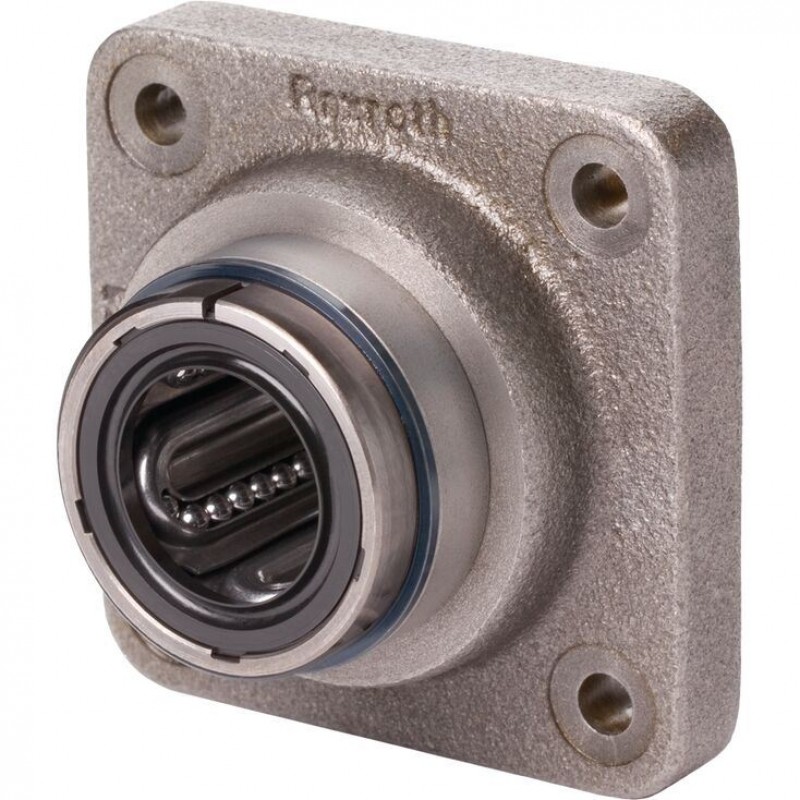

Linear Sets with standard Linear Bushings, flanged type, R1081 LSGF-M-..
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Flanged housing (lamellar graphite cast iron)
- Standard Linear Bushing with wiper seals
- Two retaining rings with two additional spacer rings (steel) for shaft diameters 12 to 40
- Radial clearance not adjustable
Product description
Linear Sets with standard Linear Bushings, flanged type. This modular unit complements the Linear Set series and is used for designs with a vertical shaft.
Technical data
General technical data
| Ø d | mm | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | |||||||||
| amax | m/s² | 100 | 50 | ||||||||||||||||
| vmax | m/s | 2.5 | 2 | ||||||||||||||||
| m | kg | 0.11 | 0.18 | 0.33 | 0.63 | 1 | 1.9 | 4 | 7.4 | 14.7 | |||||||||
| FR 1) | N | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | |||||||||
| Breakaway force | N | 6 | 9 | 12 | 14 | 18 | 24 | 30 | 36 | 45 | |||||||||
| Shaft radial clearance h6 2) | µm | + 20 + 5 | + 22 + 5 | + 23 + 6 | + 25 + 6 | + 30 + 7 | + 33 + 7 | + 37 + 8 | |||||||||||
| Operating conditions | |||||||||||||||||||
| Permissible ambient temperature (min ... max) | -10 °C ... +100 °C 3) | -10 °C ... +80 °C | -10 °C ... +100 °C 3) | -10 °C ... +80 °C | -10 °C ... +100 °C 3) | -10 °C ... +80 °C | -10 °C ... +100 °C 3) | -10 °C ... +80 °C | -10 °C ... +100 °C 3) | -10 °C ... +80 °C | -10 °C ... +100 °C 3) | -10 °C ... +80 °C | -10 °C ... +100 °C 3) | -10 °C ... +80 °C | -10 °C ... +100 °C 3) | -10 °C ... +80 °C | -10 °C ... +100 °C 3) | -10 °C ... +80 °C | |
| 1) | Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| 2) | Determined from working bore diameter and shaft tolerance statistics. When factoring in the outer diameter of the Linear Bushings and the housing bore, an h6 shaft produces similar radial clearance values as specified in the "H6H7" column under "Radial clearance" for the R0610 standard Linear Bushing. |
| 3) | for standard Linear Bushings without wiper seals |
Load capacities and load moments
| Ød | mm | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
| C 1) | N | 420 | 580 | 1170 | 2080 | 2820 | 5170 | 8260 | 11500 | 21000 |
| C0 1) | N | 280 | 440 | 860 | 1560 | 2230 | 3810 | 6470 | 9160 | 16300 |
| 1) | The load ratings indicated are minimal values as the orientation and direction of load cannot always be clearly defined. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| amax | Maximum acceleration travel | m/s2 |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| FR | Friction force | N |
| m | Mass | kg |
| vmax | Maximum permissible speed | m/s |
Impact of load direction on load rating of closed Linear Bushings
The listed load ratings should be chosen depending on installation in minimum or maximum position and should be based on the calculations. If the load direction is clearly defined and the Linear Bushings can be installed in maximum position, the load ratings Cmax. (dynamic load rating) and C0 max (static load rating) can be used. If aligned installation is not possible or the load direction is not defined, the minimum load ratings must be used.
Definition of dynamic load ratings

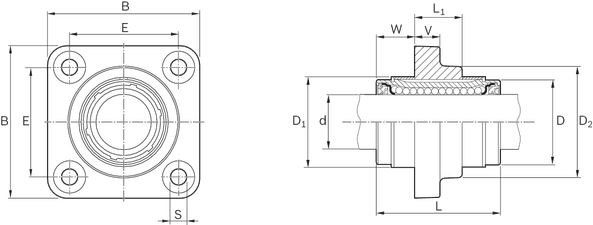

Dimensions
Dimensions
| Ød | mm | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | |
| D | mm | 22 | 26 | 32 | 40 | 47 | 62 | 75 | 90 | 120 | |
| B 1) | mm | 42 | 50 | 60 | 74 | 84 | 108 | 130 | 160 | 200 | |
| D1 | 24 mm +0.8 | 28.5 mm +0.8 | 35 mm +0.8 | 43 mm +0.8 | 49.5 mm +0.8 | 66.5 mm +0.8 | 81 mm +0.8 | 96 mm +0.8 | 129 mm +0.8 | ||
| D2 1) | mm | 28 | 34 | 42 | 54 | 62 | 80 | 98 | 115 | 150 | |
| E | 30 mm ±0.12 | 35 mm ±0.12 | 42 mm ±0.15 | 54 mm ±0.15 | 60 mm ±0.25 | 78 mm ±0.25 | 98 mm ±0.25 | 120 mm ±0.5 | 155 mm ±0.5 | ||
| L | mm | 32 | 36 | 45 | 58 | 68 | 80 | 100 | 125 | 165 | |
| L1 | mm | 12 | 15 | 18 | 23 | 26 | 36 | 72 | 95 | 125 | |
| L1 | 12 mm | 15 mm | 18 mm | 23 mm | 26 mm | 36 mm | 72 mm | 95 mm | 125 mm | ||
| S | H13 | mm | 5.5 | 6.6 | 9 | 11 | 14 | ||||
| V 1) | mm | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 22 | 26 | |
| W | mm | 10 | 10.5 | 13.5 | 17.5 | 21 | 22 | 14 | 15 | 20 | |
| 1) | Dimensional tolerance ISO 8062-3 - DCTG 9. |
Project planning information
Life expectancy calculation
Mounting
Radial clearance
The radial clearance values shown in the table have been determined from statistics and correspond to values expected in practice. The R1066, R1068 and R1072 Linear Sets come clamped to an h5 shaft (lower limit) and set to zero clearance.
Vertical dimension
The tolerance values for the vertical dimension "H" for the Linear Sets shown in the table have been determined from statistics and correspond to values expected in practice.
Bolts
We recommend bolts in accordance with ISO 4762-8.8 for fastening the Linear Sets.
General mounting instructions

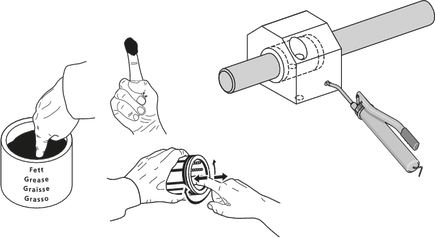

Commissioning
Linear sets with standard Linear Bushings do not come with initial lubrication. Grease the Linear Bushings before use. Service life data is based on initial lubrication and relubricated Linear Bushings.
Maintenance
load errorCertification
load errorSafety Instructions
load errorDownloads
 | Linear Bushings and Shafts Manual | R320103669 | 2005-07-01 | English, French, German, Italian | PDF | 3.6MB Product Groups: Linear Bushings and Shafts |
| Linear Bushings Catalog | R999000488 | 2015-02-01 | English | PDF | 14.9MB Product Groups: Linear Bushings and Shafts |
