Артикул: RX8597

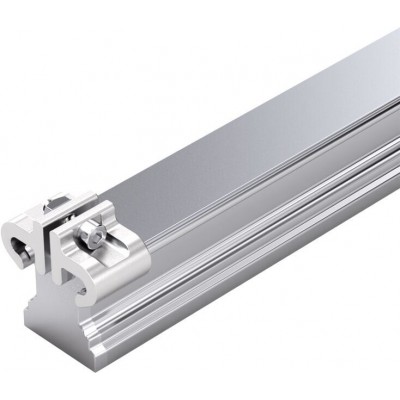

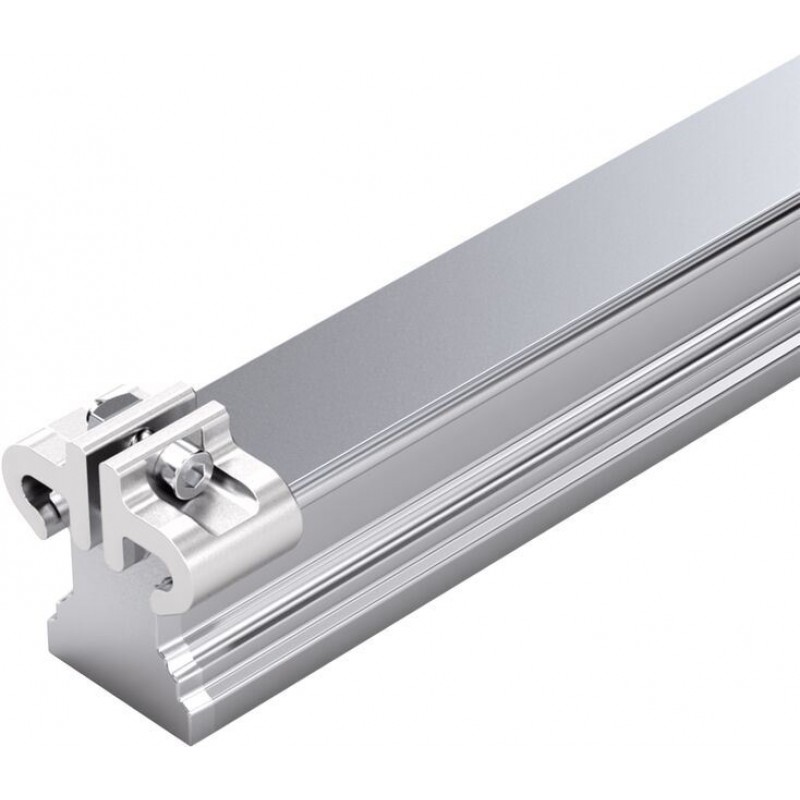

Ball Guide Rails SNS Resist CR with cover strips and strip clamps R1645 .3. ..
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Corrosion-resistant coating Resist CR, matte silver hard chrome plated
- High torque capacity
- Top rigidity in all load directions
- Area of application: For very harsh environments
- Robust strip clamp
- For mounting from above
- Corrosion-resistant coating Resist CR, matte silver hard chrome plated
- Cover strip made of corrosion-resistant spring steel as per DIN EN 10088
Features
- Aluminum strip clamps
- Observe the notes for mounting! Please request the "Mounting instructions for Ball Rail Systems" and "Mounting instructions for cover strip".
- Top rigidity in all load directions
- High torque capacity
- A single cover for all holes. No end-face hole required for strip clamp.
Product description
Ball rails can be cut to the length required by the customer.
The maximum lengths for one-piece guide rails can be found in the "Technical data" chapter.
If longer rails are required, Bosch Rexroth supplies them as composite ball guide rails.
Corrosion-resistant Resist CR coating
Steel ball guide rail with corrosion-resistant coating, mat silver finish, hard chrome-plated.
Ball guide rails with coated end faces
▶ Coated end faces, chamfers and end-face thread, material numbers: – R16.. ... 41 or R16.. ... 71
▶ Multi-part ball guide rails are chamfered on two sides at the joints.
Proven cover strip for the Ball Guide Rail mounting holes
▶ One cover for all bore holes saves time and costs
▶ Made of corrosion-resistant spring steel as per DIN EN 10088
▶ Easy and safe during mounting
▶ Clip on and secure
Ball guide rail with temperature control
Product description of Ball Rail Systems
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| m | kg/m | 1.4 | 2.4 | 3.2 | 5 | 6.8 | 10.5 | 16.2 | 22.4 |
| Lmax | mm | 3836 | 3776 | 3836 | 3746 | ||||
| Material | CR | ||||||||
| Operating conditions | |||||||||
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) 1) | 0 °C ... +80 °C | ||||||||
| 1) | Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes
Dimensions
Dimensions
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| A2 | mm | 15 | 20 | 23 | 28 | 34 | 45 | 53 | 63 |
| F4 With cover strip | mm | 7.3 | 7.1 | 8.2 | 8.7 | 11.7 | 12.5 | 14 | 15 |
| F5 | mm | 12 | 13 | 16 | 18 | 17 | |||
| F6 | mm | 2 | 2.2 | 3.2 | |||||
| D | mm | 7.4 | 9.4 | 11 | 15 | 20 | 24 | 26 | |
| Dimension H2 with cover strip | mm | 16.3 1) | 20.75 2) | 24.45 2) | 28.55 2) | 32.15 3) | 40.15 3) | 48.15 3) | 60.15 3) |
| N6 | 10.3 mm ±0.5 | 13.2 mm ±0.5 | 15.2 mm ±0.5 | 17 mm ±0.5 | 20.5 mm ±0.5 | 23.5 mm ±0.5 | 29 mm ±0.5 | 38.5 mm ±0.5 | |
| ØS5 | mm | 4.5 | 6 | 7 | 9 | 14 | 16 | 18 | |
| T | mm | 60 | 80 | 105 | 120 | 150 | |||
| T1 min | mm | 12 | 13 | 16 | 18 | 20 | 21 | ||
| T1 s | mm | 28 4) | 38 4) | 50.5 4) | 58 4) | 73 4) | |||
| T1 max | mm | 50 | 68 | 89 | 102 | 130 | |||
| nB | 64 | 48 | 36 | 32 | 25 | ||||
| 1) | with cover strip 0.1 mm |
| 2) | with cover strip 0.2 mm |
| 3) | with cover strip 0.3 mm |
| 4) | Preferred dimension T1S Recommended with tolerances ± 0.75. |
Legend
| Symbol | Description | Unit |
| T1 min | Minimum distance | mm |
| T1 max | Maximum distance | mm |
| T1 s | Preferred dimension | mm |
| T | Spacing of guide rail | mm |
| nB | Maximum number of holes |
Project planning information
Combinations of different accuracy classes
For Ball Runner Blocks and Ball Guide Rails Resist CR, hard chrome plated, be aware of differing tolerances of dimensions H and A3 (see "Accuracy classes and their tolerances").
Recommended Ball Runner Blocks for Resist CR Ball Guide Rails of accuracy class H and preload class C0 and C1
Recommended Ball Runner Block, size 15 – 65:
- Accuracy class H
- Preload class C0
Recommended Ball Runner Block, size 30 – 65:
- Accuracy class H
- Preload class C1
Mounting
Note for mounting
▶ Secure cover strip!
▶ Strip clamps included in scope of delivery.
▶ Composite Ball Guide Rail also available.
General mounting instructions
Certification
load errorSafety Instructions
load errorDownloads
 | Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog BSHP Ball Rail Systems Catalog | R999000485 | 2020-10-01 | English | PDF | 15MB Product Groups: Ball Rail Systems only available as PDF |
