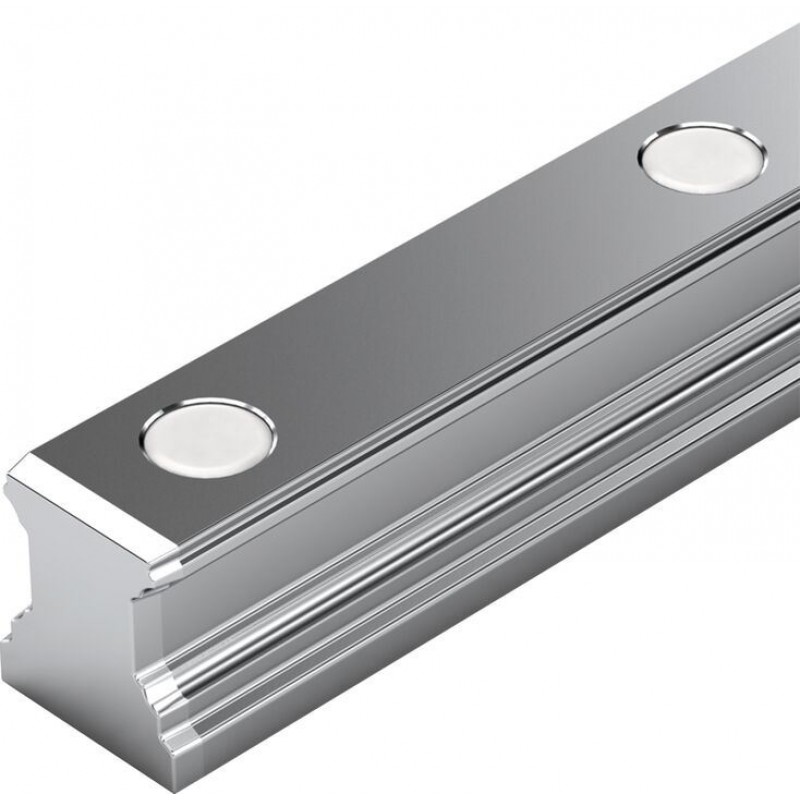

Ball Guide Rails SNS NR II with plastic mounting hole plugs R2045 .0. ..
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- High torque capacity
- Top rigidity in all load directions
- All metal parts are made from corrosion-resistant steel
- Top rigidity in all load directions
- High torque capacity
- For mounting from above with plastic mounting hole plugs
- Ball Guide Rail as well as all steel parts made of corrosion-resistant steel according to DIN EN 10088
- No extra space needed at rail ends
Features
- Observe the notes for mounting! Please request the "Mounting Instructions for Ball Rail Systems".
Product description
Ball rails can be cut to the length required by the customer.
The maximum lengths for one-piece guide rails can be found in the "Technical data" chapter.
If longer rails are required, Bosch Rexroth supplies them as composite ball guide rails.
Corrosion resistance and conditions of use
Ball Guide Rails Resist NR II as well as all steel parts are made of corrosion-resistant steel as per DIN EN 10088, strip clamps are made of aluminum. Ball Guide Rails Resist NR II are especially suited for use in wet environments, heavily diluted acids, alkali or saline solutions. These linear guides are ideally suited for use at relative humidities above 70% and temperatures exceeding 30°C. Such conditions are mainly found in cleaning plants, electroplating and pickling plants, steam degreasing plants, and also refrigeration machines. Since additional corrosion protection is not required, Ball Rail Systems Resist NR II are especially suitable for use in clean rooms and printed circuit board production in general. Other possible areas of application include the pharmaceutical and food industries.
Ball guide rail with temperature control
Product description of Ball Rail Systems
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 15 | 20 | 25 | 30 | 35 | |
| m | kg/m | 1.4 | 2.4 | 3.2 | 5 | 6.8 |
| Lmax | mm | 1856 | 3836 | |||
| Material | NRII | |||||
| Operating conditions | ||||||
| Size | 15 | 20 | 25 | 30 | 35 | |
| Permissible ambient temperature (min ... max) 1) | 0 °C ... +80 °C | |||||
| 1) | Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes
Dimensions
Dimensions
| Size | 15 | 20 | 25 | 30 | 35 | |
| A2 | mm | 15 | 20 | 23 | 28 | 34 |
| D | mm | 7.4 | 9.4 | 11 | 15 | |
| H2 | mm | 16.2 | 20.55 | 24.25 | 28.35 | 31.85 |
| N6 | 10.3 mm ±0.5 | 13.2 mm ±0.5 | 15.2 mm ±0.5 | 17 mm ±0.5 | 20.5 mm ±0.5 | |
| ØS5 | 4.5 | 6 | 7 | 9 | ||
| T | mm | 60 | 80 | |||
| T1 min | mm | 10 | 12 | |||
| T1 s | mm | 28 1) | 38 1) | |||
| T1 max | mm | 50 | 68 | |||
| nB | 30 | 64 | 48 | |||
| 1) | Preferred dimension T1S Recommended with tolerances ± 0.75. |
Legend
| Symbol | Description | Unit |
| T1 min | Minimum distance | mm |
| T1 max | Maximum distance | mm |
| T1 s | Preferred dimension | mm |
| T | Spacing of guide rail | mm |
| nB | Maximum number of holes |
Project planning information
See the section on Ball Runner Blocks Resist NR II for the recommended Ball Runner Blocks for the Ball Guide Rails Resist NR II
Combinations of different accuracy classes
Combining Ball Guide Rails and Ball Runner Blocks of different accuracy classes results in different tolerances for the dimensions H and A3 (see "Accuracy classes and their tolerances").
Mounting
Notes for mounting
▶ Plastic mounting hole plugs included in the scope of delivery.
▶ Composite Ball Guide Rail also available.
General mounting instructions
Certification
load errorSafety Instructions
load errorDownloads
 | Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog BSHP Ball Rail Systems Catalog | R999000485 | 2020-10-01 | English | PDF | 15MB Product Groups: Ball Rail Systems only available as PDF |
