Артикул: RX8813

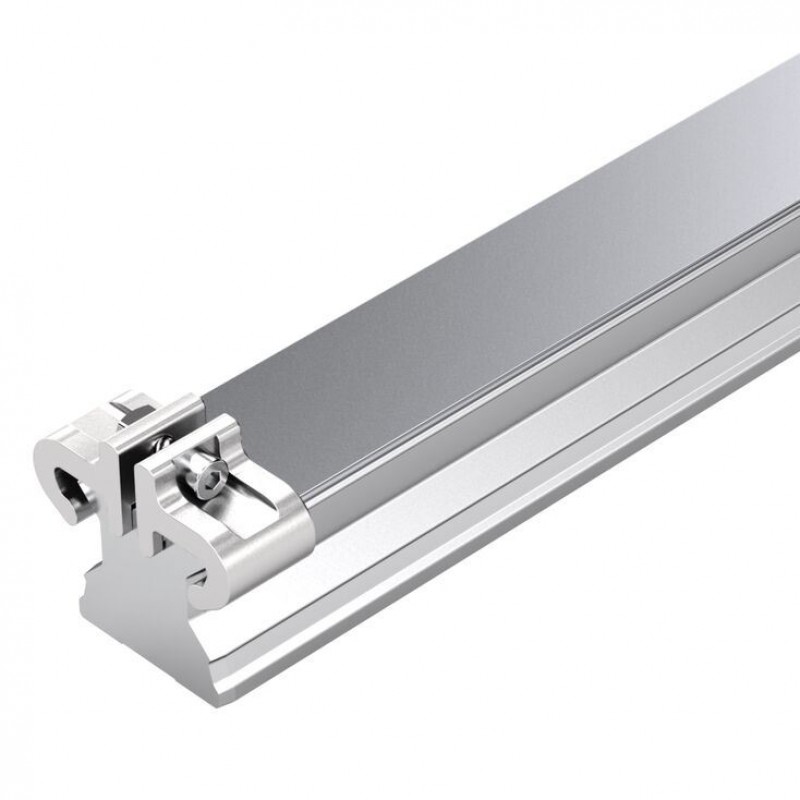

Standard roller guide rails SNO, with cover strip and strip clamp R1805 .B. ..
Доступно к заказу
Цена по запросу
Получи КП от 5 лучших поставщиков
С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.
И выбери подходящего.
Description
- With smooth base area for mounting surfaces from cast mineral parts
- For mounting from above
- Cover strip made of corrosion-resistant spring steel as per DIN EN 10088
- Aluminum strip clamps (without threaded holes on end faces)
- Available in sizes 35-65 and all accuracy classes
Features
- Hardened raceways smoothened on all sides
- Top rigidity in all load directions
- Very high torque load capacity
- One cover for all bore holes saves time and costs
- Cover strip can be mounted simply and securely
- Clip on cover strip and lock
Product description
Roller Guide Rail with temperature control
Product description high-precision design
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 35 | 45 | 55 | 65 | |
| m | kg/m | 6.3 | 10.3 | 13.1 | 17.4 |
| Lmax | mm | 3996 1) | 3986 2) | 3956 3) | 3971 4) |
| Material | CS | ||||
| Operating conditions | |||||
| Size | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) 5) | -10 °C ... +80 °C | ||||
| 1) | Deliverable in one part up to a length of 5996 mm |
| 2) | Deliverable in one part up to a length of 5981 mm |
| 3) | Deliverable in one part up to a length of 5936 mm |
| 4) | Deliverable in one part up to a length of 5921 mm |
| 5) | Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes

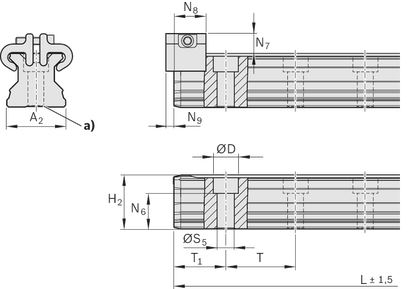

Dimensions
| Roller guide rail with cover strip without threaded holes on end faces (not required for strip clamps). | |
| Retaining the cover strip with strip clamps (included in the scope of delivery). | |
| a) | For Roller Guide Rails of accuracy class H, this base area may be without a groove for manufacturing reasons. |
Dimensions
| Size | 35 | 45 | 55 | 65 | |
| A2 | mm | 34 | 45 | 53 | 63 |
| D | mm | 15 | 20 | 24 | 26 |
| Dimension H2 with cover strip | mm | 31.1 1) | 39.1 1) | 47.85 1) | 58.15 1) |
| N6 | 19.4 mm ±0.5 | 22.4 mm ±0.5 | 28.7 mm ±0.5 | 36.5 mm ±0.5 | |
| N7 With cover strip | mm | 11.7 | 12.5 | 14 | 15 |
| N8 | mm | 16 | 18 | 17 | |
| N9 | mm | 2.2 | 3.2 | ||
| ØS5 | mm | 9 | 14 | 16 | 18 |
| T | mm | 40 | 52.5 | 60 | 75 |
| T1 min | mm | 16 | 18 | 20 | 21 |
| T1 s | mm | 18 2) | 24.25 2) | 28 2) | 35.5 2) |
| nB | 100 | 76 | 66 | 53 | |
| 1) | with cover strip 0.3 mm |
| 2) | Preferred dimension T1S with tolerances ± 0.75 |
Legend
| Symbol | Description | Unit |
| T | Hole spacing | mm |
| T1 min | Minimum distance | mm |
| T1 s | Preferred dimension | mm |
| nB | Maximum number of holes |
Mounting
Notes
▶ Secure cover strip!
▶ Strip clamps in scope of delivery.
▶ Observe the notes for mounting!
▶ Please request the "Mounting instructions for roller rail systems" and "Mounting instructions for cover strip".
▶ Roller guide rail also available in composite.
General mounting instructions
Accessories
Packaging Opener Klever Kutter
Packaging Opener Klever Kutter
Mounting Runner Block SLH slimline, long, high
R1829 .20 ..
Mounting Runner Block SLH slimline, long, high
R1829 .20 ..
Standard loose cover strip with snap fit
Standard loose cover strip with snap fit
- The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
- Can be mounted and removed several times.
- For initial installation, storage and replacement
Loose cover strip with sliding fit
Loose cover strip with sliding fit
- The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
- Can be mounted and removed several times.
- For initial installation, storage and replacement
Expanding tool
for Roller Rail Systems
Expanding tool
for Roller Rail Systems
- For creating a sliding fit in the cover strip
Cover strip mounting kit
for Roller Rail Systems
Cover strip mounting kit
for Roller Rail Systems
- Mounting aid and lift-off plate
Protective caps for Roller Rail Systems
R1619 .39 .0
Protective caps for Roller Rail Systems
R1619 .39 .0
Screws and washers for Roller Rail Systems
R34.. 0.. 0.
Screws and washers for Roller Rail Systems
R34.. 0.. 0.
Strip clamps for Roller Rail Systems
R1619 .39 .0
Strip clamps for Roller Rail Systems
R1619 .39 .0
Plastic mounting hole plugs for Roller Rail Systems
R1605 .0
Plastic mounting hole plugs for Roller Rail Systems
R1605 .0
Steel caps for Roller Rail Systems
R1606 7.
Steel caps for Roller Rail Systems
R1606 7.
Mounting tool for steel caps
Mounting tool for steel caps
- The two-piece mounting tool is suitable for mounting hole plugs in built-in guide rails (mounting instructions enclosed)
V-guide for lateral retention of Roller Guide Rails
V-guide for lateral retention of Roller Guide Rails
- Mounting aid for lateral retention of roller guide rails
- Material: Steel
- Design: black finish
Certification
Directives and standards
Safety Instructions
Notes
Ordering codes
Material numbers
| Size | Part number | Buy | Rail length 4) | Accuracy class | Number of sections |
| 35 | R18053B161 1) | L = nB • T ‒ 4 mm | SP | One-piece | |
| R18053B261 1) | L = nB • T ‒ 4 mm | P | One-piece | ||
| R18053B361 1) | L = nB • T ‒ 4 mm | H | One-piece | ||
| R18053B861 1) | L = nB • T ‒ 4 mm | GP | One-piece | ||
| R18053B961 2) 1) | L = nB • T ‒ 4 mm | UP | One-piece | ||
| R18053B162 3) | L = nB • T ‒ 4 mm | SP | Composite | ||
| R18053B262 3) | L = nB • T ‒ 4 mm | P | Composite | ||
| R18053B362 3) | L = nB • T ‒ 4 mm | H | Composite | ||
| R18053B862 3) | L = nB • T ‒ 4 mm | GP | Composite | ||
| R18053B962 2) 3) | L = nB • T ‒ 4 mm | UP | Composite | ||
| 45 | R18054B161 1) | L = nB • T ‒ 4 mm | SP | One-piece | |
| R18054B261 1) | L = nB • T ‒ 4 mm | P | One-piece | ||
| R18054B361 1) | L = nB • T ‒ 4 mm | H | One-piece | ||
| R18054B861 1) | L = nB • T ‒ 4 mm | GP | One-piece | ||
| R18054B961 2) 1) | L = nB • T ‒ 4 mm | UP | One-piece | ||
| R18054B162 3) | L = nB • T ‒ 4 mm | SP | Composite | ||
| R18054B262 3) | L = nB • T ‒ 4 mm | P | Composite | ||
| R18054B362 3) | L = nB • T ‒ 4 mm | H | Composite | ||
| R18054B862 3) | L = nB • T ‒ 4 mm | GP | Composite | ||
| R18054B962 2) 3) | L = nB • T ‒ 4 mm | UP | Composite | ||
| 55 | R18055B161 1) | L = nB • T ‒ 4 mm | SP | One-piece | |
| R18055B261 1) | L = nB • T ‒ 4 mm | P | One-piece | ||
| R18055B361 1) | L = nB • T ‒ 4 mm | H | One-piece | ||
| R18055B861 1) | L = nB • T ‒ 4 mm | GP | One-piece | ||
| R18055B961 2) 1) | L = nB • T ‒ 4 mm | UP | One-piece | ||
| R18055B162 3) | L = nB • T ‒ 4 mm | SP | Composite | ||
| R18055B262 3) | L = nB • T ‒ 4 mm | P | Composite | ||
| R18055B362 3) | L = nB • T ‒ 4 mm | H | Composite | ||
| R18055B862 3) | L = nB • T ‒ 4 mm | GP | Composite | ||
| R18055B962 2) 3) | L = nB • T ‒ 4 mm | UP | Composite | ||
| 65 | R18056B161 1) | L = nB • T ‒ 4 mm | SP | One-piece | |
| R18056B261 1) | L = nB • T ‒ 4 mm | P | One-piece | ||
| R18056B361 1) | L = nB • T ‒ 4 mm | H | One-piece | ||
| R18056B861 1) | L = nB • T ‒ 4 mm | GP | One-piece | ||
| R18056B961 2) 1) | L = nB • T ‒ 4 mm | UP | One-piece | ||
| R18056B162 3) | L = nB • T ‒ 4 mm | SP | Composite | ||
| R18056B262 3) | L = nB • T ‒ 4 mm | P | Composite | ||
| R18056B362 3) | L = nB • T ‒ 4 mm | H | Composite | ||
| R18056B862 3) | L = nB • T ‒ 4 mm | GP | Composite | ||
| R18056B962 2) 3) | L = nB • T ‒ 4 mm | UP | Composite |
| 1) | Rail length up to Lmax |
| 2) | Available on request |
| 3) | Rail length greater than Lmax. The end number changes depending on the number of sections. 2 is preset here as an example. |
| 4) | Recommended rail length, other lengths possible. |
| Ordering example 1 (up to Lmax) | Ordering example 2 (beyond Lmax) |
| Options: | Options: |
| Roller guide rail SNO | Roller guide rail SNO |
| Size 35 | Size 35 |
| Accuracy class P | Accuracy class P |
| One-piece | Composite
(2 parts) |
| Rail length L = 1676 mm | Rail length L = 5036 mm |
| Material number: | Material number: |
| R18053B261, 1676 mm | R18053B262, 5036 mm |
Legend
| Symbol | Description | Unit |
| L | Rail length | mm |
| nB | Maximum number of holes | |
| T | Spacing of guide rail | mm |
Ordering roller guide rails in the recommended rail lengths
