Valve amplifiers for high-response valves VT‑VRPA1‑527‑2X/V0/RTS‑2STV
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Component series 2X
- Analog, Euro-card format
- For valves: 4WRL 10…35 E/W…S-3X…
Features
- Controlled output stage
- Closed-loop position control with PID characteristics
- Fast energization and fast deletion for short actuating times
- Enable input
- Short-circuit-proof outputs
- Adjustable ramp time, sensitivity and zero point
- Cable break detection for actual value cable
Type code
| 01 | 02 | 03 | 04 | 05 | ||||
| VT-VRRA1 | ‒ | 527 | ‒ | 2X | / | V0 | / | RTS-2STV |
| 01 | Valve amplifier for high-response valves with one solenoid, analog, euro-card format | VT-VRRA1 |
| 02 | For valves: 4WRL 10…35 E/W…S-3X… | 527 |
| 03 | Component series 20 ... 29 (20 ... 29: unchanged technical data and pin assignment) | 1X |
| 04 | Version: standard | V0 |
| 05 | External ramp, for pilot-operated high-response valve | RTS-2STV |
Technical data
General
| Component series | 2X | ||
| Material number | Data sheet | 1819929039 | |
| Type of electronics | Analog | ||
| Design | Euro-card | ||
Voltage supply
| Operating voltage | Nominal | U | V | 24 |
| Lower limit value | UB(t)min | V | 21 | |
| Upper limit value | UB(t)max | V | 40 | |
| Ripple 1) | % | < 10 | ||
| Power consumption | P | VA | 37 | |
| Current consumption | max. | Imax | A | 1.5 |
| 1) | In case of ripple > 10 %, an upstream smoothing capacitor is required (recommendation: capacitor module VT 11110) |
Analog inputs
| Command value source | Potentiometer 10 kΩ supplied with 10 V internal reference voltage, external signal source | ||||
| Command value | Voltage | Differential input | U | V | 0 ... ±10 |
| Input resistance | R | kΩ | ≥ 100 | ||
| grounded on one side, first input | Ucommand | V | 0 … ±10 | ||
| grounded on one side, second input | Ucommand | V | 0 … ±10 | ||
| position value | Voltage | U | V | 0 … ±10 | |
| External ramp time 1) | Voltage | U | V | 0 … 10 | |
| 1) | Separate inputs for ramp up and down |
Digital inputs
| Enable 1) | On (active) | U | V | 8.5 ... 40 |
| Ramp switch-off 1) | U | V | 10 ... 40 | |
| External ramp presetting 1) | U | V | 10 ... 40 | |
| 1) | RE = 100 kΩ |
Digital outputs
| Cable break error message | No error 1) | UB | V | 24 |
| Error | UB | V | 0 | |
| Ramp | timeout 1) | UB | 24 V | |
| no timeout | UB | 0 V |
| 1) | Imax = 100 mA |
Solenoid outputs
| Solenoid current | max. | Imax | A | 2.7 |
| Solenoid output | Other properties | Clocked current controller | ||
| Cable length | for 1.5 mm2 | L | m | 20 |
| for 2.5 mm2 | L | m | 60 |
Position transducer
| Line cross-section | Position transducer line | A | 4 x 0.5 mm2 (shielded) | |
| Position transducer supply | U | V | ±15 | |
Adjustment options
| Zero point calibration setting range | % | ± 5 | ||
| Range sensitivity adjustment | % | 50 ... 100 | ||
| Ramp time up/down | Setting range 1 | t | s | 0.1 … 3 |
| Setting range 2 | t | s | 0.3 … 10 | |
Displays
| LED display | Green 1 | Enable | |
| Yellow 1 | Cable break actual value | ||
| Red | UB too low |
Other information
| Reference voltage | Potentiometer supply | U | V | ±10 (Imax = 10 mA) |
| Special features | Short-circuit-proof outputs, cable break detection for actual value line, position control with PID behavior, fast energization and fast deletion for short actuating times | |||
| Anschlussart | 32-pin male connector, DIN 41612, form F | |||
| Ambient temperature range | ϑ | °C | 0 … 70 | |
| Storage temperature range | ϑ | °C | -20 … 70 | |
| Weight | m | kg | 0.44 | |
(For applications outside these values, please consult us!)

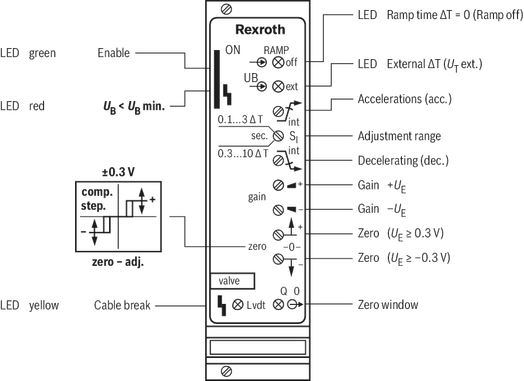

Operating and display elements

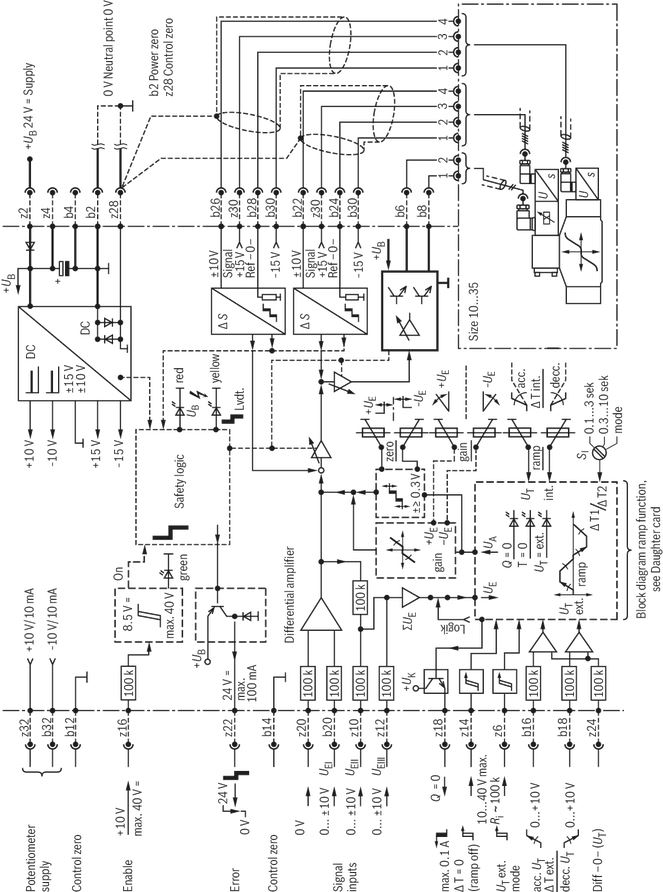

Symbols/Circuit diagrams

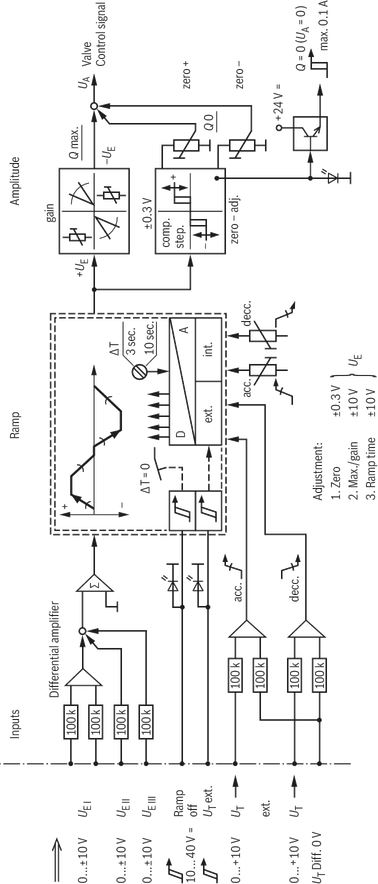

Ramp function
Information on ramp function
- Three command value inputs
UE I differential input (b20 = 0...±10 V, z20 = 0 V)
UE II (z10) and UE III (z12) related to control zero and with summing effect
- Selection of internal and external ramp time setting via control input UT ext. (z6), LED display on front plate
- Ramp increase time adjustable by means of a switch at the front plate
- Connection and shut-off of the ramp function via control input "ramp off" (z14), LED display of operating mode on the front plate
- Internal ramp time setting via potentiometer on the front plate: Acceleration – Deceleration
- External ramp time setting via voltage-controlled differential inputs UT: Acceleration (b16) – Deceleration (b18)
- Signal output "Ramp timeout" in case of UE = 0 (z18; open collector output to +UA)
LED display on front plate
- Setting: Sensitivity
QA/QB – Limitations in the range 100…50 % Qmax.
- Automatic quadrant recognition in the transition of the valve from one quadrant to the other one – thus only one setting potentiometer and/or one control voltage for the ramp time presetting for acceleration and deceleration each.
Dimensions

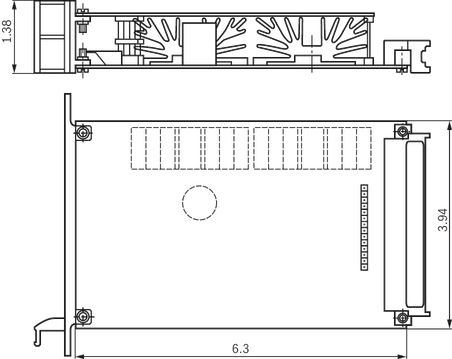

Dimensions in mm

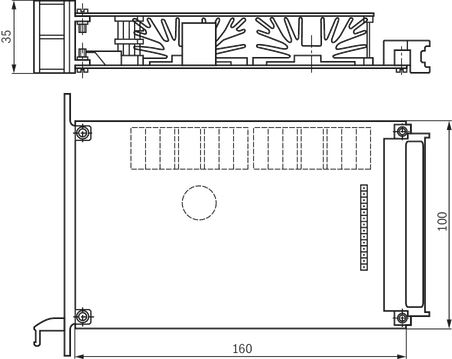

Dimensions in mm
Project planning information
load errorMounting
load errorCommissioning
load errorDownloads
 | Elektrische Verstärker Data Sheet | RD30044 | 2012-02-28 | German | PDF | 452k Product Groups: Valve amplifiers VT-VRPA1-527-2X/V0/RTS-2STV |
| Electric amplifiers Data Sheet | RE30044 | 2012-02-28 | English | PDF | 443k Product Groups: Valve amplifiers VT-VRPA1-527-2X/V0/RTS-2STV |
| Amplificateurs électriques Data Sheet | RF30044 | 2012-02-28 | French | PDF | 443k Product Groups: Valve amplifiers VT-VRPA1-527-2X/V0/RTS-2STV |
| Amplificadores eléctricos Data Sheet | RS30044 | 2012-02-28 | Spanish | PDF | 443k Product Groups: Valve amplifiers VT-VRPA1-527-2X/V0/RTS-2STV |
| 电气放大器 Data Sheet | RC30044 | 2012-02-29 | Chinese | PDF | 670k Product Groups: Valve amplifiers VT-VRPA1-527-2X/V0/RTS-2STV |
