Артикул: RX7345

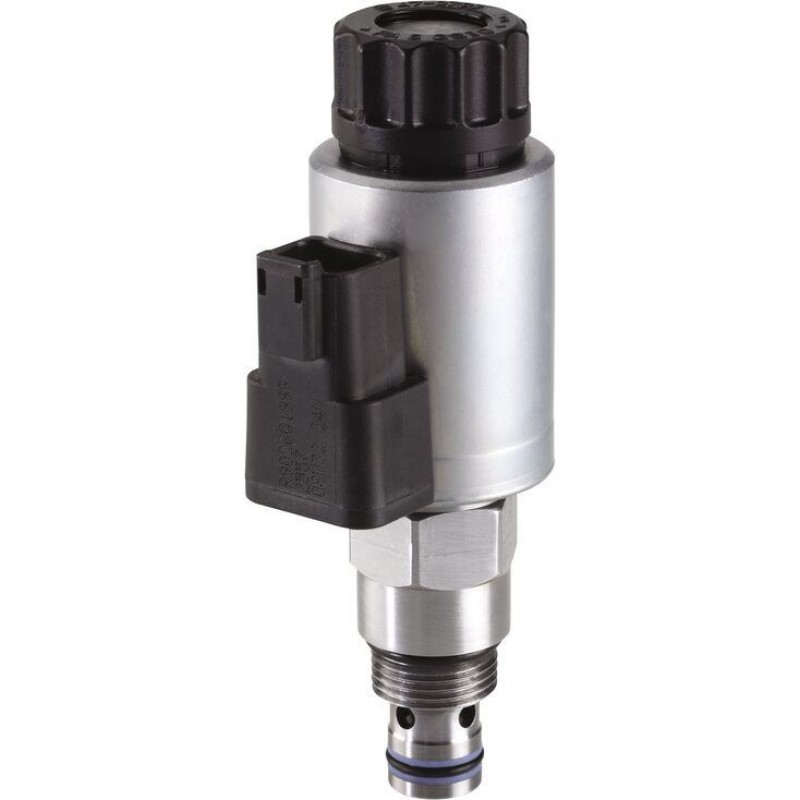

2/2 directional seat valve, direct operated with solenoid actuation KSDER0 N/P (High Performance)
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Size 0
- Component series A
- Maximum operating pressure 350 bar
- Maximum flow 20 l/min
Features
- Two different mounting cavities, R/B or R/C
- Direct operated directional seat valve with solenoid actuation, tight on both sides
- Blocked port tight in a leak-free form
- Reliable switching even after longer periods of standstill
- Wet-pin DC solenoids
- Solenoid coil can be rotated
Product description
General

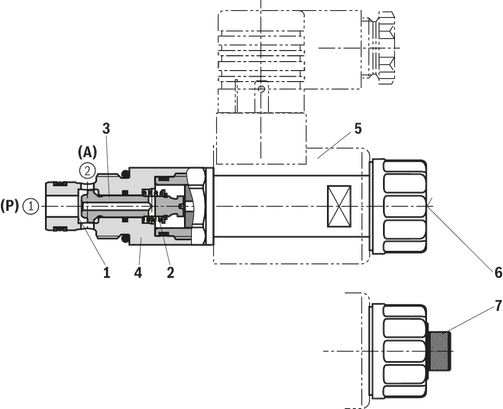

The 2/2 directional seat valves are direct operated, pressure-compensated screw-in cartridge valves. They basically consist of a screw-in section (4) with valve seat (1), solenoid (5) as well as closing element (3) and compression spring (2).
Function
The initial position of the valve (normally open "P" or normally closed "N") is determined by the position of the closing element (3) and the arrangement of the compression spring (2). Due to the structural design, the 2/2 directional seat valves are always pressure-compensated in relation to the actuating forces. The main ports ➀ and ➁ can be loaded with an operating pressure of 350 bar (see Technical data).
At symbol "P", the closing element (3) is pressed onto the seat by the solenoid (5), with symbol "N" by the compression spring (2). The flow is blocked in a leak-free manner.
The manual override allows for the switching of the valve without solenoid energization. It is available in concealed version "N9" (6) or in screwable version "N11" (7) (see ordering codes).
The screwable manual override (7) is to be screwed back into the initial position after actuation.
Version "K4" (with mating connector)
Type KSDER0PA/BN0V
Version "C4"
Version "K40"
Type code
(valve without coil) 1)
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | |
| KSDE | R | 0 | A | / | V
| * |
| 01 | Directional seat valve, direct operated, electrically operated | KSDE | ||||
| 02 | Maximum operating pressure 350 bar | R | ||||
| 03 | Component size | 0 | ||||
| 04 | 2 main ports | |||||
| Symbols |  | Normally closed | N | |||
 | Normally open | P | ||||
| 05 | Component series | A | ||||
| 06 | High Performance and mounting cavity R/B (see Mounting cavity) | B | ||||
| High Performance and mounting cavity R/C (see Mounting cavity) | C | |||||
| 07 | Without manual override | N0 | ||||
| With concealed manual override | N9 | |||||
| With screwable manual override | N11 | |||||
| Symbol N | Symbol P | |||||
| N0 | N9 | N11 | N0 | N9 | N11 | |
| X | – | X | X | X 2) | – | |
| Seal material | ||||||
| 08 | FKM seals (other seals upon request) | V | ||||
| Observe compatibility of seals with hydraulic fluid used. | ||||||
| 09 | Further details in the plain text | * | ||||
| 1) Complete valves with mounted coil available on request | |
| 2) Screwable manual override “N10” (actuation by means of internal hexagon with lock nut), possible as separate order, material no. R901051231; ordering code “N9” ! |
Technical data
general
| Size | 0 | ||
| Weight | Valve | kg | 0.3 |
| Coil | kg | 0.25 | |
| Installation position | any | ||
| Ambient temperature range | °C | -40 … +110 | |
hydraulic
| Size | 0 | ||
| Maximum operating pressure | bar | 350 | |
| Maximum flow 1) | l/min | 20 | |
| Hydraulic fluid | see table | ||
| Hydraulic fluid temperature range | °C | -40 … +80 | |
| Viscosity range | mm²/s | 5 … 1000 | |
| Ideal | mm²/s | 10 … 100 | |
| Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2) | Class 20/18/15 according to ISO 4406 (c) | ||
| Load cycles | million | 10 | |
| 1) | See performance limits |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| Hydraulic fluid | Classification | Suitable sealing materials | Standards | |
| Mineral oil | HL, HLP | FKM, NBR | DIN 51524 | |
| Bio-degradable | Insoluble in water | HEES (synthetic esters) | FKM | VDMA 24568 |
| HETG (rape seed oil) | FKM, NBR | |||
| Soluble in water | HEPG (polyglycols) | FKM | VDMA 24568 | |
| Other hydraulic fluids on request | ||||
electrical
| Voltage type | Direct voltage | ||
| Power supply 1) | V | 12 24 | |
| Voltage tolerance against ambient temperature | See characteristic curves | ||
| Power consumption | W | 22 | |
| Duty cycle | % | 100 | |
| Maximum coil temperature 2) | °C | 150 | |
| Switching time according to ISO 6403 (solenoid horizontal) | ON (➀ → ➁) | ms | ≤ 95 |
| OFF (➁ → ➀) | ms | ≤ 95 | |
| Maximum switching frequency | Version | Hz | 9000 |
| Protection class according to EN 60529 | Version "K4" | IP65 (If a suitable and a correctly mounted mating connector are used.) | |
| Version "C4" | IP66 with mating connector mounted and locked IP69K with Rexroth mating connector (material no. R901022127) | ||
| Version "K40" | IP69K with mating connector mounted and locked | ||
| 1) | Other voltages upon request |
| 2) | Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to! |
With the electrical connection "K4", the protective earthing conductor (PE) is to be connected appropriately.
(For applications outside these values, please consult us!)
Diagrams/characteristic curves

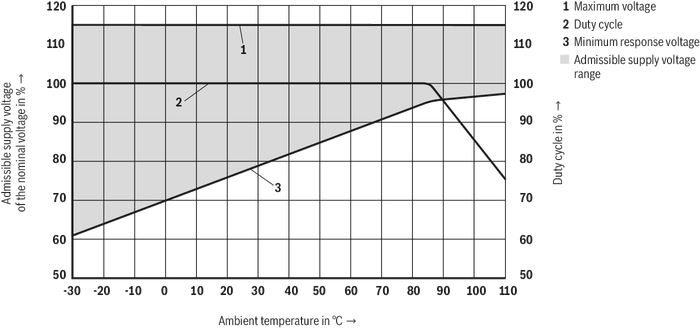

Voltage tolerance against ambient temperature; duty cycle
Voltage range and duty cycle dependent on the ambient temperature
(measured with HLP46, ϑoil = 40 ±5 °C) and 24 V coil

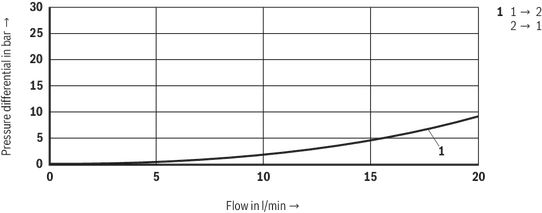

Δp-qV characteristic curves
(measured with HLP46, ϑOil = 40 °C ± 5 °C) and 24 V coil

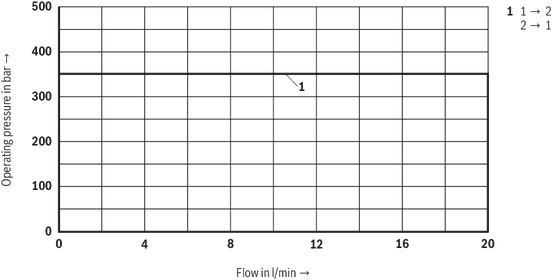

Performance limits (measured with HLP46, ϑOil = 40 ±5 °C and 24 V coil)
Attention!
The performance limit has been determined with the solenoids at operating temperature and with 10 % undervoltage.
Symbols/Circuit diagrams
Symbol “N” normally closed
Symbol “P” normally open

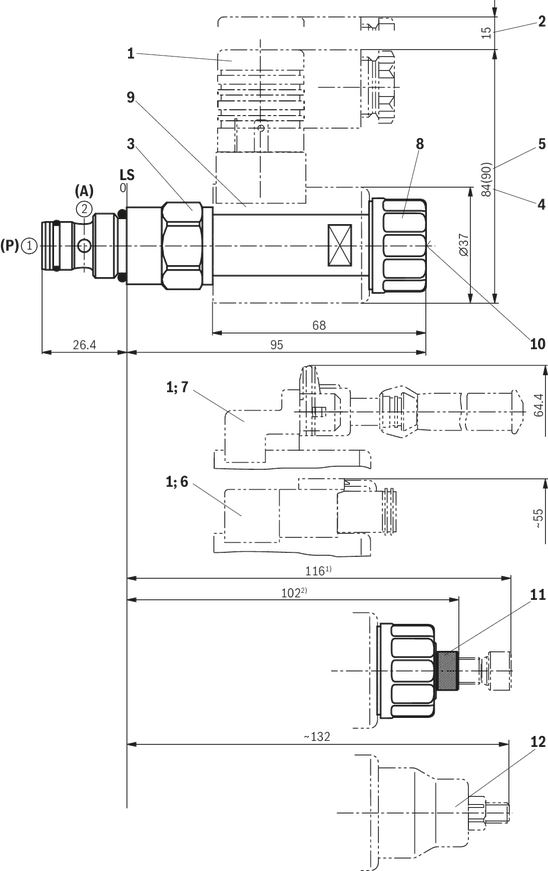

Dimensions
Dimensions in mm
| 1 | Mating connector (separate order, see data sheet 08006) |
| 2 | Space required to remove the mating connector |
| 3 | SW24, tightening torque MA = 25 +5 Nm |
| 4 | Dimension for mating connector “K4”, without circuitry |
| 5 | Dimension () for mating connector “K4”, with circuitry |
| 6 | Version "K40" |
| 7 | Version "C4" |
| 8 | Nut, tightening torque MA = 5+1 Nm |
| 9 | Coil (separate order, see type key) |
| 10 | Concealed manual override "N9", optional |
| 11 | Screwable manual override "N11", optional |
| 12 | Screwable manual override “N10” (separate order) |
| ➀ | Main port 1, pump P 3) |
| ➁ | Main port 2, actuator A 3) |
| LS | Location shoulder |
| 1) Actuated | |
| 2) Screwed in | |
| 3) Attention! | |
| Unambiguous pin assignment. P and A must not be exchanged or closed! |
Mounting cavity, 2 main ports; M20 x 1.5 thread
Version "B"
Dimensions in mm
Mounting cavity, 2 main ports; M20 x 1.5 thread
Version "C"
Dimensions in mm
1) Depth of fit
2) Visual inspection
| ➀ | Main port 1 |
| ➁ | Main port 2 |
| LS | Location shoulder |
| All seal ring in sertion faces are rounded and free of burrs; tolerance for all angles ± 0.5° | |
Accessories
Mating connectors for directional valves with connector "C4" and "C4Z" (AMP Junior-Timer), litz wire outer diameter 2.2 mm to 3.0 mm
2P JUNIOR D2 2
Mating connectors for directional valves with connector "C4" and "C4Z" (AMP Junior-Timer), litz wire outer diameter 2.2 mm to 3.0 mm
2P JUNIOR D2 2
- For directional valves with connector "C4" and "C4Z" (AMP Junior-Timer)
Mating connectors for directional valves with connector "K40" (Deutsch plug)
2P DT06 K40
Mating connectors for directional valves with connector "K40" (Deutsch plug)
2P DT06 K40
- For directional valves with "K40" connector (Deutsch plug)
