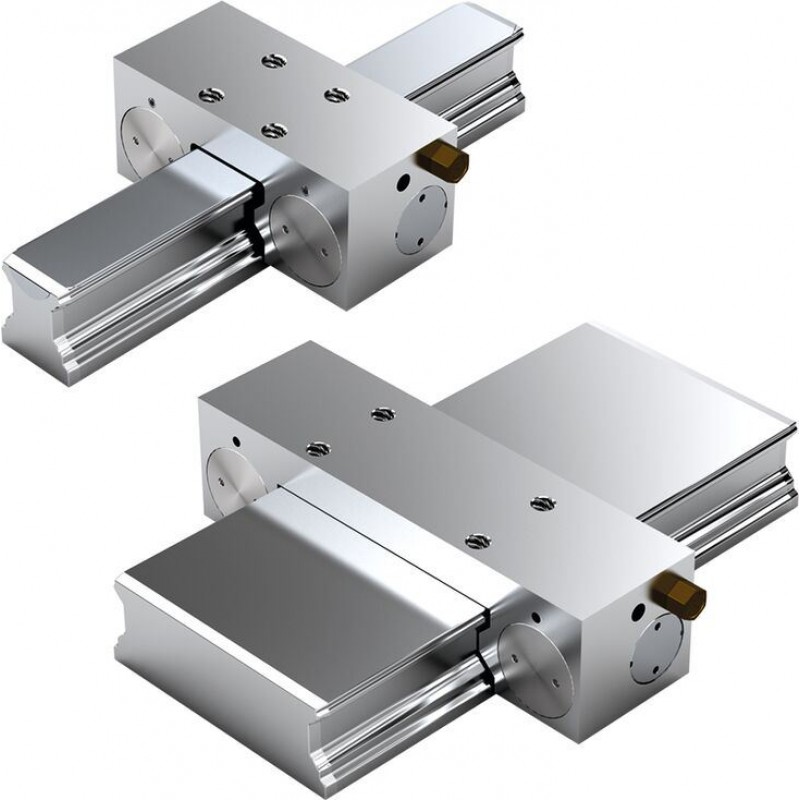

Description
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio
- Easy mounting
- Clamps with pressure (pneumatic) The clamping profiles are pressed by compressed air via a dual acting gate valve gear mechanism.
Features
- Chemically nickel-plated steel housing
- High axial and horizontal rigidity
- Exact positioning, high dynamics, powerful drive and long service life through the use of high-precision linear screw drives
- Continuously adjustable pressure from 4 - 8 bar
- Decompression with spring force. A pre-tensioned return spring allows for short decompression cycles.
- 5 million clamping cycles (B10d value)
Product description
Functional principle
Clamping with air pressure or spring force
- Clamping profiles are pressed to the web surfaces of the Ball Guide Rail.
Decompression with air pressure or spring force
- The clamping profiles are held apart.
- Free movement is possible
Technical data
General technical data
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | 20/40 | 25/70 | 35/90 | |
| Spring energy holding force with standard air port 1) | N | 650 | 1000 | 1200 | 1750 | 2000 | 2250 | 650 | 1200 | 2000 | ||
| Air consumption (normal liter) standard air port | dm³/stroke | 0.111 | 0.019 | 0.021 | 0.031 | 0.041 | 0.019 | 0.021 | 0.031 | |||
| Max. pneumatic operating pressure | bar | 8 | ||||||||||
| Mass | kg | 0.25 | 0.36 | 0.45 | 0.72 | 0.88 | 1.7 | 1.95 | 2.68 | 0.37 | 0.62 | 0.88 |
| Operating conditions | ||||||||||||
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | 20/40 | 25/70 | 35/90 | |
| Permissible ambient temperature (min ... max) | 0 °C ... +70 °C | |||||||||||
| 1) | Holding force at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
Symbols/Circuit diagrams
Circuit type1) for standard air port
1) Holding force at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
a) Air port*) M5 on both sides for release pressure
b) Connection*) M5 on both sides for air filter
*) Only one connection needed
All connections sealed upon delivery.
1 Air port
2 Working connection
3 Venting
Fields of application
- Pneumatic clamping of machine axes
- Table crossbars in the timber industry
- Positioning of lifting gear
Dimensions
