Description
- Specification
- Connectors and assignment
Product description
Cable
The length of the connection cable at the IMScompact runner block can be selected in steps of 0.5 m up to a maximum length of 3.0 m. The cable outlet at the runner block can be implemented flexibly in all directions. Due to the high supply voltage in connection with the analog, differential signal transmission, in practice, cable lengths of up to a maximum of 75 meters can be realized without any restrictions. With the digital absolute interface (SSI), the indicated maximum cable lengths are to be taken into consideration depending on the frequency. This cable type can be ordered as extension cable (see accessories).

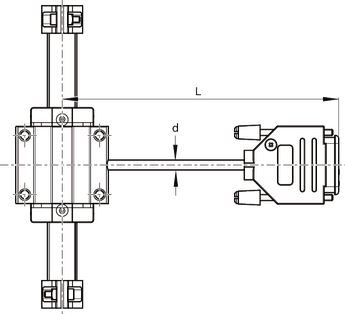

L (m) | (mm) |
| 0,2 < L ≤ 1 | ± 40 |
| 1 < L ≤ 2 | ± 60 |
| 2 < L ≤ 3 | ± 100 |
Specification:
- Lif9YC11Y 5x2x0.09 mm2 (AWG28), suitable for drag chains
- Minimum length 0.2 m
- Outer diameter d=5.0 -0.2 mm
- Wires stranded in pairs, pairs stranded
- Wire insulation PP
- Wire colors DIN47100
- Shield: Tin-coated CU mesh with non-woven banding and polyester foil
- Sheath: PUR color: Orange RAL2003
- UL 20549/10954
- Recommended bending radius for one-time bending (stationary): 5 x d (external line diameter)
- Recommended bending radius for alternating bends (drag chain): 10 x d
Technical data
Connector DSUB 15-pin type E and F
Option I9 |  | ||
| Type E | Signal, incremental 1Vpp | ||
| Pin | Cable color | Signal, incremental 1Vpp | |
| 1 | |||
| 2 | green | A+ | |
| 3 | yellow | A- | |
| 4 | blue | OV/GND | |
| 5 | brown | B+ | |
| 6 | white | B- | |
| 7 | |||
| 8 | |||
| 9 | pink | R+ | |
| 10 | gray | R- | |
| 11 | red | 10...30VDC | |
| 12 | |||
| 13 | |||
| 14 | |||
| 15 | |||
| Housing | Shield | OV/GND | DSUB 15 Pin male |
Option I4 |  | ||
| Type F | Signal, incremental TTL | ||
| Pin | Cable color | Signal, incremental TTL | |
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | blue | 0V/GND | |
| 5 | |||
| 6 | |||
| 7 | green | A+ TTL | |
| 8 | yellow | A- TTL | |
| 9 | pink | R+ TTL | |
| 10 | gray | R- TTL | |
| 11 | red | 10...30VDC | |
| 12 | |||
| 13 | brown | B+ TTL | |
| 14 | white | B- TTL | |
| 15 | |||
| Housing | Shield | OV/GND | DSUB 15 Pin male |
Type 0: Open cable end (only for options I9 and I4, incremental measuring system)
| 1) | Stripping length 20 mm |
| 2) | Insulation stripping length 5 mm |
| 3) | Drilled strands |
only for signals I9 and I4, (incremental measuring system) | |||
| Type 0 | Cable color | 1Vpp (option I9) | TTL (option I4) |
| green | A+ | A+ TTL | |
| yellow | A- | A- TTL | |
| blue | OV/GND | OV/GND | |
| brown | B+ | B+ TTL | |
| white | B- | B- TTL | |
| red | 10...30VDC | 10...30VDC | |
| pink | R+ | R+ TTL | |
| gray | R- | R- TTL | |
| Shield | OV/GND | OV/GND | |
Dimensions
Type E and F:
DSUB 15-pin male, protection type / protection IP40

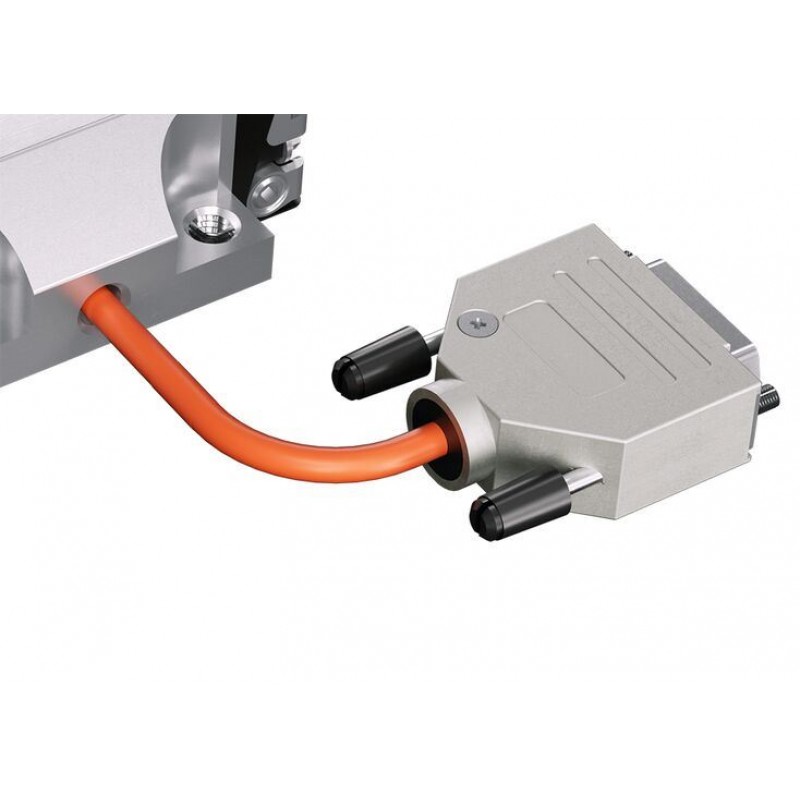

Connector DSUB 15-pin type E and F
Downloads
 | IMScompact integrated measuring system for BSHP ball rail system Manual | R320103196_EN | 2019-12-01 | English | PDF | 2.5MB Product Groups: Integrated measuring systems |
| R999001485 Integrated measuring system IMScompact Catalog | R999001485 | 2020-03-01 | English | PDF | 2.9MB Product Groups: Integrated measuring systems Only available as PDF |
