Артикул: RX8391

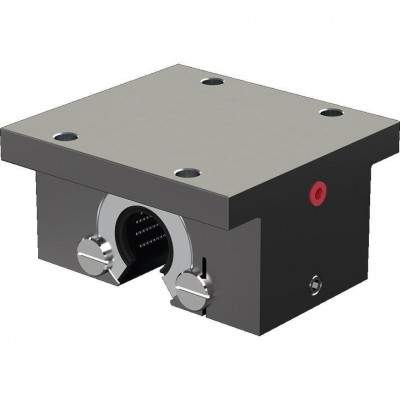

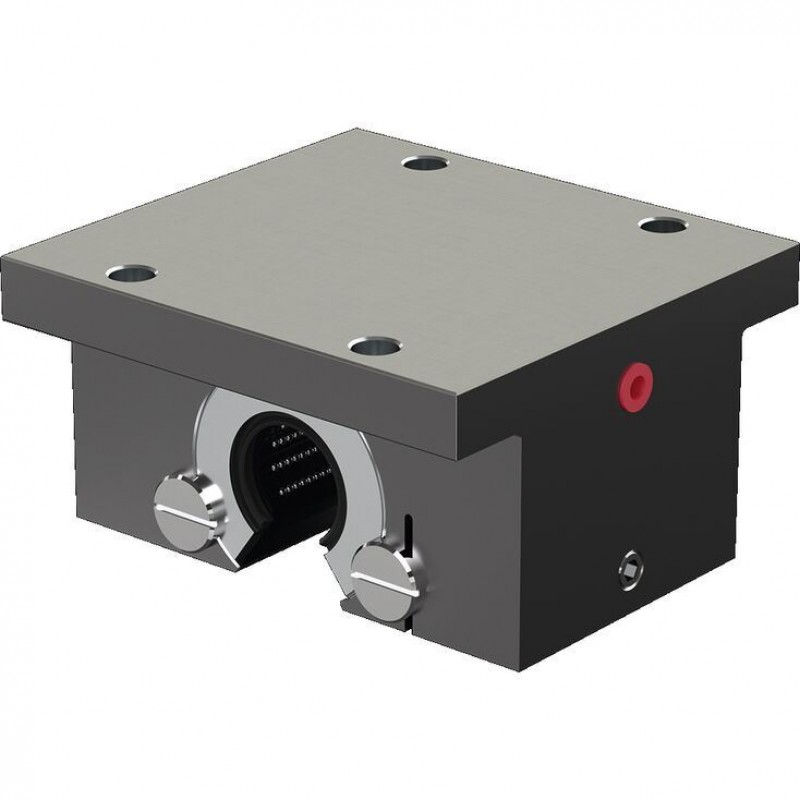

Linear Sets with Radial Linear Bushings, open type, adjustable, R1076 LSRE-..-DD
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Precision housing (steel)
- Radial Linear Bushing
- Two wiper seals
- Relubricatable
Product description
When combined with precision steel shafts and shaft support rails, these Linear Sets can be used to create heavy-duty guides with extremely high rigidity.
Technical data
General technical data
| Ø d | mm | 30 | 40 | 50 | 60 | 80 |
| amax | m/s² | 50 | ||||
| vmax | m/s | 2 | ||||
| m | kg | 6.1 | 11.8 | 19.7 | 38.4 | 76.1 |
| FR | N | 8 | 11 | 14 | 16 | 20 |
| Breakaway force | N | 24 | 32 | 40 | 48 | 60 |
| Radial clearance | Comes with an h5 shaft (lower limit) and set to zero clearance | |||||
| Operating conditions | ||||||
| Permissible ambient temperature (min ... max) 1) | -20 °C ... +80 °C | |||||
| 1) | 100 °C for a short period |
Load capacities and load moments
| Ød | mm | 30 | 40 | 50 | 60 | 80 |
| C 1) | N | 8500 | 13900 | 20800 | 29500 | 54800 |
| C0 1) | N | 9520 | 16000 | 24400 | 34100 | 61500 |
| 1) | The load ratings specified apply for the main direction of loading ρ = 0°. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| amax | Maximum acceleration travel | m/s2 |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| FR | Friction force | N |
| m | Mass | kg |
| vmax | Maximum permissible speed | m/s |
Definition of dynamic load ratings
Rigidity
Combining a radial Linear Bushing with a continuously supported guide shaft ensures a precise, rigid design.
- The following figure shows load-dependent spring. The diagram applies for installation:
- Without preload
- With zero clearance (no preload)
- for load direction ρ = 0° – 90° and 270° – 360°

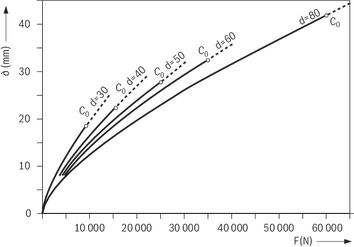

Radial Linear Bushing rigidity
Installing with preload reduces spring. Additional spring in all parts of a linear guide (housing, shaft, shaft support rail) depends on the load direction. Guideline values for total spring with R1076 and R1010 elements: load direction factor multiplied by spring ∂ (from right diagram).
| 1) | F = load N |
| 2) | ∂ = spring mm |
Overall deflection depending on the load direction
| Load direction ∂ | 0° | 90° | 180° | 270° |
| Overall deflection | 1 • ∂ | 1,8 • ∂ | 3,5 • ∂ | 1,8 • ∂ |
Effect of load direction on load rating
The load ratings C and C0 specified for Radial Linear Bushings apply for load direction ρ = 0°. If the external load is at an angle ρ = 90° – 270°, a reduced load capacity must be factored in. The dynamic load rating is then determined by multiplying the specified dynamic load rating C or C0 by the load direction factors fρ or fρ0. This reduced load capacity can be avoided by careful installation of the radial Linear Bushings.
Diagrams/characteristic curves

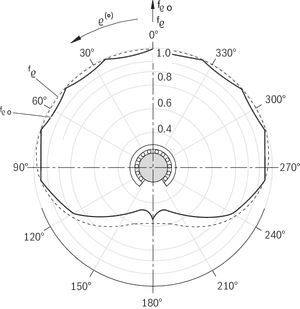

Load direction factors

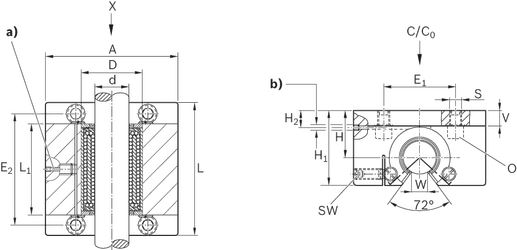

Dimensions
| a) | Center lubricating hole |
| b) | Lubricating hole M8 x 1 sealed with plastic cap |
Dimensions
| Ød | mm | 30 | 40 | 50 | 60 | 80 | |
| D | mm | 60 | 75 | 90 | 110 | 145 | |
| A | js16 | mm | 140 | 170 | 200 | 240 | 310 |
| E1 | 75 mm ±0.5 | 90 mm ±0.5 | 110 mm ±0.5 | 130 mm ±0.5 | 170 mm ±0.5 | ||
| E2 | 108 mm ±0.5 | 135 mm ±0.5 | 170 mm ±0.5 | 200 mm ±0.5 | 260 mm ±0.5 | ||
| H | mm | 48 | 60 | 70 | 85 | 110 | |
| Tolerance for H 1) | µm | + 15 - 5 | + 17 - 4 | + 18 - 5 | + 23 - 4 | + 22 - 5 | |
| H1 | js16 | mm | 75 | 94 | 110 | 135 | 175 |
| H2 | mm | 18 | 22.5 | 25 | 30 | 37.5 | |
| L | js16 | mm | 130 | 160 | 200 | 240 | 310 |
| L1 | 84 mm +0.5 | 109 mm +0.5 | 138 mm +0.5 | 163 mm +0.5 | 213 mm +0.5 | ||
| O 2) | M10x30 | M12x40 | M16x50 | M20x60 | M24x80 | ||
| S | H13 | mm | 11 | 13.5 | 17.5 | 22 | 26 |
| SW | mm | 5 | 6 | 8 | 10 | 12 | |
| V | js16 | mm | 16 | 20 | 23 | 28 | 35 |
| W 3) | mm | 14 | 19.5 | 24.5 | 29 | 39 | |
| 1) | Clamped (fastened) based on nominal shaft dimension d. |
| 2) | ISO 4762–8.8 cylinder head bolts, recommendation applies for bolting in steel or cast iron threads. |
| 3) | Minimum size in relation to shaft diameter d. |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| C/C0 | Main direction of loading |
Project planning information
Life expectancy calculation
Mounting
General mounting instructions
Commissioning

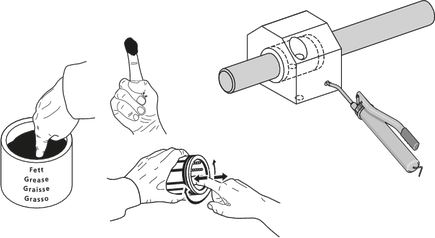

Linear sets with radial Linear Bushings do not come with initial lubrication. Grease the Linear Bushings before use. Service life data is based on initial lubrication and relubricated Linear Bushings.
Maintenance
Lubrication
Accessories
R1018, for radial linear bushings
R1018, for radial linear bushings
- Shaft support rail material: Steel
Wiper seals for open-type Radial Linear Bushings
Wiper seals for open-type Radial Linear Bushings
- Steel retaining ring
- Elastomer wiper seal
Hydraulic-type lube nipple according to DIN 71412 Form A
Hydraulic-type lube nipple according to DIN 71412 Form A
Funnel-type lube nipple according to DIN 3405 Form A
Funnel-type lube nipple according to DIN 3405 Form A
Certification
Directives and standards
Safety Instructions
Notes
