Артикул: RX8510

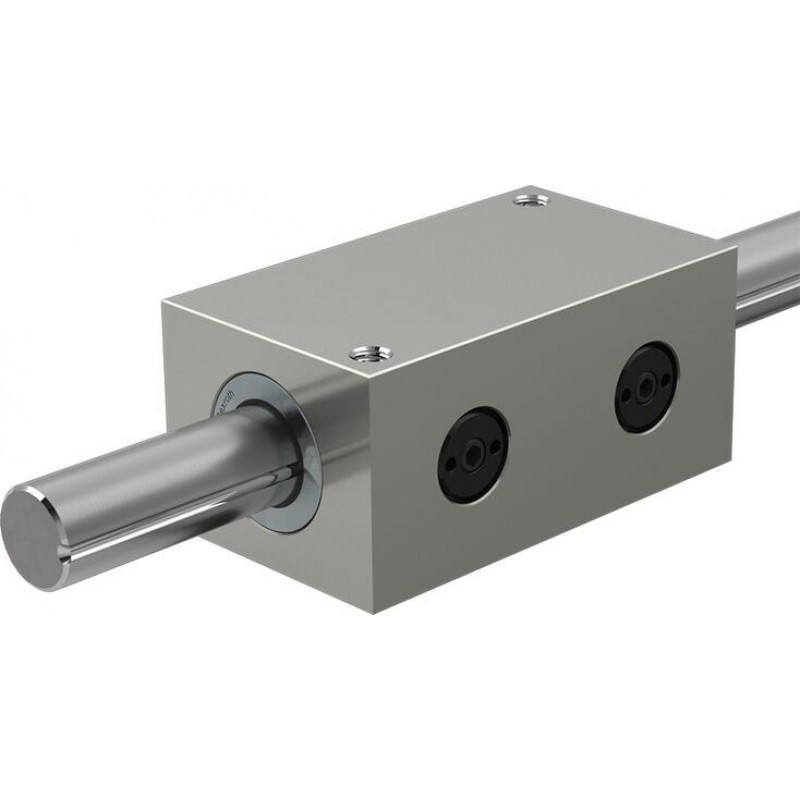

Linear Sets with Torque-Resistant Linear Bushings R1097 2.., tandem, type 1, customized shaft LSSDR1T-..-SPECIAL
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Steel precision tandem housing
- Precision steel shaft with one ball guide groove
- Two torque-resistant Linear Bushings
- Torque-transmitting, hardened steel bearing plates set to zero clearance ex works
- Stability against cocking loads
Features
- External seals
Technical data
General technical data
| Ø d | mm | 12 | 16 | 20 | 25 | 30 | 40 | 50 |
| amax | m/s² | 150 | ||||||
| vmax | m/s | 3 | ||||||
| m | kg | 0.7 | 1 | 1.9 | 3.5 | 5.2 | 9.8 | 17 |
| m (shaft) | kg/m | 0.89 | 1.57 | 2.45 | 3.8 | 5.5 | 9.8 | 15.3 |
| Operating conditions | ||||||||
| Permissible ambient temperature (min ... max) | -10 °C ... +80 °C | |||||||
Load capacities and load moments
| Ød | mm | 12 | 16 | 20 | 25 | 30 | 40 | 50 |
| C 1) | N | 1040 | 1260 | 2500 | 4900 | 6000 | 10200 | 15000 |
| C0 1) | N | 840 | 1060 | 2100 | 4360 | 5580 | 8700 | 12940 |
| Mt | Nm | 3.2 | 5.5 | 12 | 24 | 37 | 86 | 167 |
| 1) | Load rating when both Linear Bushings are under equal load. The load ratings indicated are minimal values as the load direction cannot always be clearly defined. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| amax | Maximum acceleration travel | m/s2 |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| m | Mass | kg |
| m (shaft) | Weight (shaft) | kg/m |
| Mt | Dynamic torsional moment load capacity | Nm |
| vmax | Maximum permissible speed | m/s |

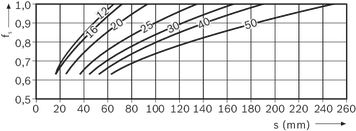

Reduced load capacity with short stroke
In case of short stroke, the service life of the shaft is less than that of the torque-resistant Linear Bushing. The dynamic load ratings C in the tables must therefore be multiplied by the factor fs .
| 1) | fs = factor |
| 2) | s = movement path |
Service life, shaft straightness, stabilized installation
Definition of dynamic load ratings
Dimensions

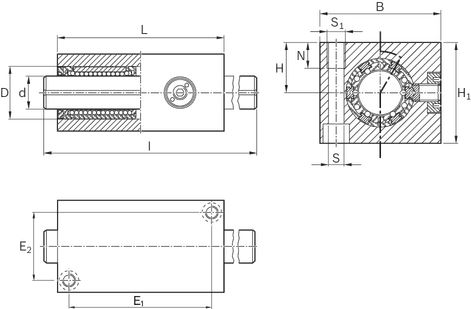

Dimensions
| Ød | mm | 12 | 16 | 20 | 25 | 30 | 40 | 50 |
| D | mm | 22 | 26 | 32 | 40 | 47 | 62 | 75 |
| B | mm | 42 | 50 | 60 | 74 | 84 | 108 | 130 |
| E1 | mm | 64 | 70 | 88 | 110 | 130 | 148 | 194 |
| E2 | mm | 30 | 36 | 44 | 54 | 62 | 80 | 100 |
| H | mm | 18 | 22 | 25 | 30 | 35 | 45 | 50 |
| Tolerance for H 1) | µm | + 13 - 22 | ||||||
| H1 | mm | 35 | 42 | 50 | 60 | 70 | 90 | 105 |
| L | mm | 76 | 84 | 104 | 130 | 152 | 176 | 224 |
| l | mm | 400 | 500 | 600 | ||||
| N | mm | 12 | 15 | 18 | 20 | |||
| S 2) | mm | 5.3 | 6.6 | 8.4 | 10.5 | 13.5 | ||
| S1 | M6 | M8 | M10 | M12 | M16 | |||
| 1) | Two or more Linear Sets on one shaft are machined to the same dimension H while installed. Dimension H is reduced by 0.5 mm. |
| 2) | Fixing screws ISO 4762-8.8 |
Project planning information
Life expectancy calculation
Mounting
Installation
The Linear Sets come preassembled and set to zero clearance. When pulling out the shaft, the adjusting screws must be loosened and the torque-resistant Linear Bushing reset.
Installing torque-resistant linear bushings
General mounting instructions
Commissioning

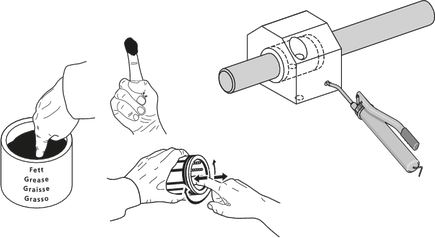

Initial lubrication
Torque-resistant Linear Bushings do not come with initial lubrication. Grease Linear Bushings before use, see "Initial lubrication" in the "Lubrication" section.
Service life data is based on initial lubrication and relubricated Linear Bushings.
- Lubricating a Linear Set with a torque-resistant compact Linear Bushing: on-shaft via Ø = 3.9 lubricating hole until lubricant seeps out.
- Lubricating a tandem Linear Set: on-shaft via recirculating lubricating groove in middle of outer diameter until lubricant seeps out.
- Lubricating a flanged Linear Set: on-shaft via funnel-type lube nipple recessed on the end face until lubricant seeps out.
Maintenance
Lubrication
Accessories
Wiper seals for Torque-resistant Linear Bushings, type 1
Wiper seals for Torque-resistant Linear Bushings, type 1
- Galvanized metal case
- Elastomer wiper seal
Certification
Directives and standards
Safety Instructions
Notes
Ordering codes
Material numbers
| Ød | Part number | Lubrication | Raceway | Shaft | Shaft length | Short product name | CAD data | Buy |
| mm | ||||||||
| 12 | R109721286 | No initial lubrication | 1 ball guide groove | With solid shaft | Customized shaft | LSSDR1T-12-SPECIAL | ||
| 16 | R109721686 | LSSDR1T-16-SPECIAL | ||||||
| 20 | R109722086 | LSSDR1T-20-SPECIAL | ||||||
| 25 | R109722586 | LSSDR1T-25-SPECIAL | ||||||
| 30 | R109723086 | LSSDR1T-30-SPECIAL | ||||||
| 40 | R109724086 | LSSDR1T-40-SPECIAL | ||||||
| 50 | R109725086 | LSSDR1T-50-SPECIAL |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
Explanation of short product name using sample torque Linear Set LSHDR1T-20-WV-X90-1200
| Torque-Resistant Linear Bushing Linear Set example | LSHDR1T-20-WV-X90-1200 | |
| Type | Linear Set | = LS |
| Material (housing) | Steel | = |
| Aluminum | = A | |
| Design type | Sleeve design | = H |
| Flanged type | = F | |
| Series | Torque | = DR |
| Raceway | One ball guide groove | = 1 |
| Two ball guide grooves | = 2 | |
| Housing | Normal | = |
| Tandem | = T | |
| Shaft diameters | = 20 | |
| Shaft | With stainless shaft | = X90 |
| With Tubular Shaft | = WO | |
| Shaft included | = WV | |
| Shaft length | Standard length as per table | = 1200 |
| Customized shaft | SPECIAL | |
| Shaft length cut to size | = K | |
Explanatory example of the short product name
| LS | S | DR | 1 | T | 25 | Special |
| Linear Set | Steel | Torque | 1 ball guide groove | Tandem | Ø25 | Customized shaft |
Downloads
 | Torque-Resistant Linear Bushings Manual | R320103691 | 2003-08-01 | English, French, German, Italian | PDF | 143k Product Groups: Linear Bushings and Shafts |
| Linear Bushings Catalog | R999000488 | 2015-02-01 | English | PDF | 14.9MB Product Groups: Linear Bushings and Shafts |
