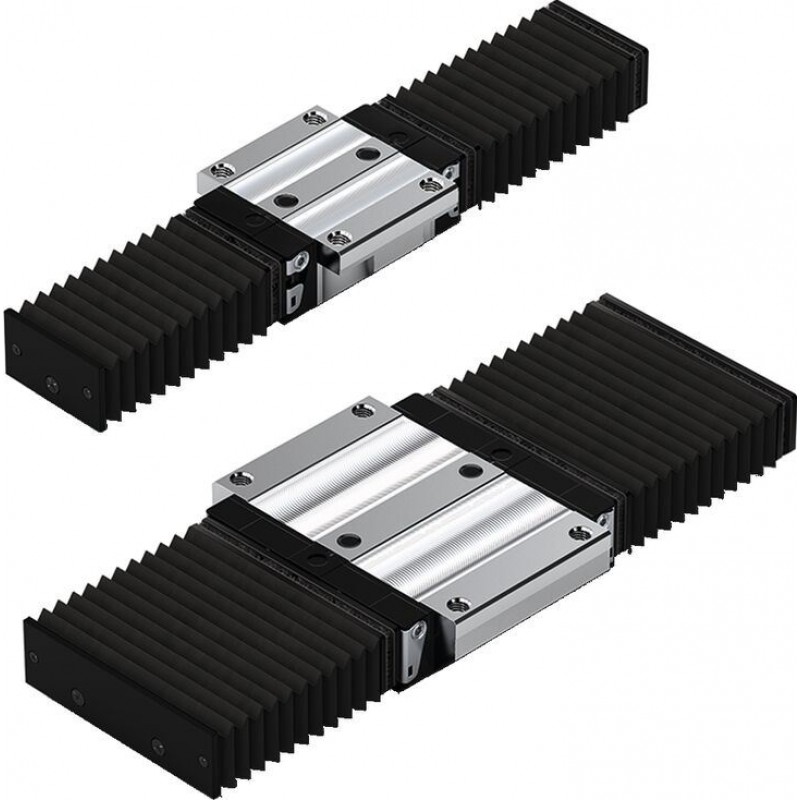

Description
- Material: Polyurethane-coated polyester fabric
- Aluminum lube plate

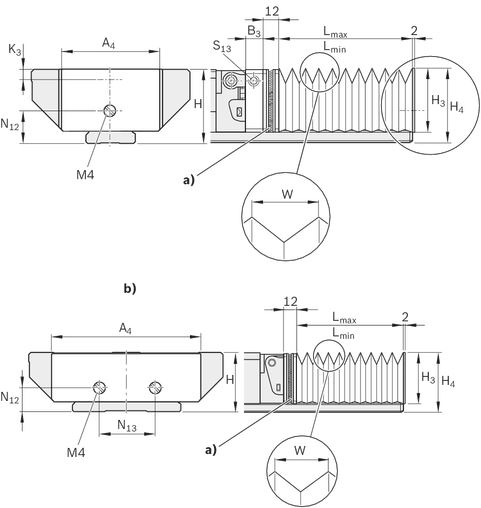

Dimensions
| a) | Velcro fastener |
| b) | Bellows, wide |
| Drawings not to scale |
Dimensions
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | 20/40 1) | 25/70 1) | 35/90 1) | |
| A4 | mm | 45 | 42 | 45 | 55 | 64 | 83 | 96 | 120 | 73 | 101 | 128 |
| B3 | mm | 11 | 12 | 14 | - | |||||||
| H | mm | 24 | 30 | 36 | 42 | 48 | 60 | 70 | 90 | 27 | 35 | 50 |
| H3 | mm | 26.5 | 24 | 28.5 | 34 | 39 | 49 | 56 | 75 | 31 | 29 | 42 |
| H4 | mm | 31.5 | 29.2 | 35 | 41 | 47 | 59 | 69 | 89 | 35 | 49 | |
| K3 | mm | 3.4 | 3.5 | 6 | 8 | 9 | 18 | - | ||||
| N12 | mm | 11 | 13 | 15 | 18 | 22 | 30 | 40 | 11.5 | 14 | 21.5 | |
| N13 | mm | - | 26 | 40 | ||||||||
| S13 | M3 | M6 | M8x1 | - | ||||||||
| W | mm | 19.9 | 10.3 | 12.9 | 15.4 | 19.9 | 26.9 | 29.9 | 40.4 | 19.9 | 12.9 | 19.9 |
| U 2) | 1,18 | 1,33 | 1,32 | 1,25 | 1,18 | 1,13 | 1,12 | 1,08 | 1,12 | 1,25 | 1,18 | |
| 1) | Wide ball rail system |
| 2) | Calculation factor (see project planning information) |
Project planning information
Calculation of the bellows
Lmax. = (stroke + 30) · U
Lmin. = Lmax. – stroke
Number of folds = Lmax./W + 2
Calculation of rail length
L = Lmin. + Lmax. + LA
Legend
| Symbol | Description | Unit |
| Lmax | Bellows, elongated | mm |
| Lmin | Bellows, contracted | mm |
| Stroke | Stroke | mm |
| U | Calculation factor | – |
| W | maximum bellows extraction | mm |
| L | Ball guide rail length | mm |
| LA | Ball runner block length with fastening frame | mm |
Mounting
Note for mounting
- The bellows is pre-assembled.
- The fastening screws are included.
- Bellows with lube plate (type 1, 3 - 5) size 15 - 20: Funnel-type lube nipple with impact spigot is included. Size 25 - 65 and wide: The lube nipple of the Ball Runner Block can be used.
- For type 1 and type 2, a thread M4x10 with 2 x 45° countersink must be inserted and placed in the end face of the Ball Guide Rail. For Ball Guide Rail BNS: Insert two threads in each case.
- Observe the mounting instructions
Ordering codes
Material numbers
| Size | Part number | Buy | Type |
| 15 | R162010100 | Type 1 | |
| R162010200 | Type 2 | ||
| R162010300 | Type 3 | ||
| R162010400 | Type 4 | ||
| R162010500 | Type 5 | ||
| R162010600 | Type 6 | ||
| R162010700 | Type 7 | ||
| R162010800 | Type 8 | ||
| R160010900 | Type 9 | ||
| 20 | R162080100 | Type 1 | |
| R162080200 | Type 2 | ||
| R162080300 | Type 3 | ||
| R162080400 | Type 4 | ||
| R162080500 | Type 5 | ||
| R162080600 | Type 6 | ||
| R162080700 | Type 7 | ||
| R162080800 | Type 8 | ||
| R160080900 | Type 9 | ||
| 25 | R162020100 | Type 1 | |
| R162020200 | Type 2 | ||
| R162020300 | Type 3 | ||
| R162020400 | Type 4 | ||
| R162020500 | Type 5 | ||
| R162020600 | Type 6 | ||
| R162020700 | Type 7 | ||
| R162020800 | Type 8 | ||
| R160020900 | Type 9 | ||
| 30 | R162070100 | Type 1 | |
| R162070200 | Type 2 | ||
| R162070300 | Type 3 | ||
| R162070400 | Type 4 | ||
| R162070500 | Type 5 | ||
| R162070600 | Type 6 | ||
| R162070700 | Type 7 | ||
| R162070800 | Type 8 | ||
| R160070900 | Type 9 | ||
| 35 | R162030100 | Type 1 | |
| R162030200 | Type 2 | ||
| R162030300 | Type 3 | ||
| R162030400 | Type 4 | ||
| R162030500 | Type 5 | ||
| R162030600 | Type 6 | ||
| R162030700 | Type 7 | ||
| R162030800 | Type 8 | ||
| R160030900 | Type 9 | ||
| 45 | R162040100 | Type 1 | |
| R162040200 | Type 2 | ||
| R162040300 | Type 3 | ||
| R162040400 | Type 4 | ||
| R162040500 | Type 5 | ||
| R162040600 | Type 6 | ||
| R162040700 | Type 7 | ||
| R162040800 | Type 8 | ||
| R160040900 | Type 9 | ||
| 55 | R162050100 | Type 1 | |
| R162050200 | Type 2 | ||
| R162050300 | Type 3 | ||
| R162050400 | Type 4 | ||
| R162050500 | Type 5 | ||
| R162050600 | Type 6 | ||
| R162050700 | Type 7 | ||
| R162050800 | Type 8 | ||
| R160050900 | Type 9 | ||
| 65 | R162060100 | Type 1 | |
| R162060200 | Type 2 | ||
| R162060300 | Type 3 | ||
| R162060400 | Type 4 | ||
| R162060500 | Type 5 | ||
| R162060600 | Type 6 | ||
| R162060700 | Type 7 | ||
| R162060800 | Type 8 | ||
| R160060900 | Type 9 | ||
| 20/40 1) | R167050200 | Type 2 | |
| R167050400 | Type 4 | ||
| R167050900 | Type 9 | ||
| 25/70 1) | R167020200 | Type 2 | |
| R167020400 | Type 4 | ||
| R167020900 | Type 9 | ||
| 35/90 1) | R167030200 | Type 2 | |
| R167030400 | Type 4 | ||
| R167030900 | Type 9 |
| 1) | Wide ball rail system |
| Mass on request |
Overview of bellows types
| Type | Version | Picture |
| Type 1 | with lubrication plate and end plate (no lube plate necessary for ball runner blocks with side lube ports) |  |
| Type 2 | with fastening frame and end plate |  |
| Type 3 | with 2 lubrication plates (no lube plate necessary for ball runner blocks with side lube ports) |  |
| Type 4 | with 2 fastening frames |  |
| Type 5 | with lubrication plate and fastening frame (no lube plate necessary for ball runner blocks with side lube ports) |  |
| Type 6 | with front lube unit and end plate |  |
| Type 7 | with 2 front lube units |  |
| Type 8 | with front lube unit and fastening frame |  |
| Type 9 | loose bellows (spare part) |  |
Ordering example – bellows
- Size 35
- Type 6: with front lube unit and end plate
- Number of folds: 36
Ordering data:
Material number, fold count: R1620 306 00, 36 folds
