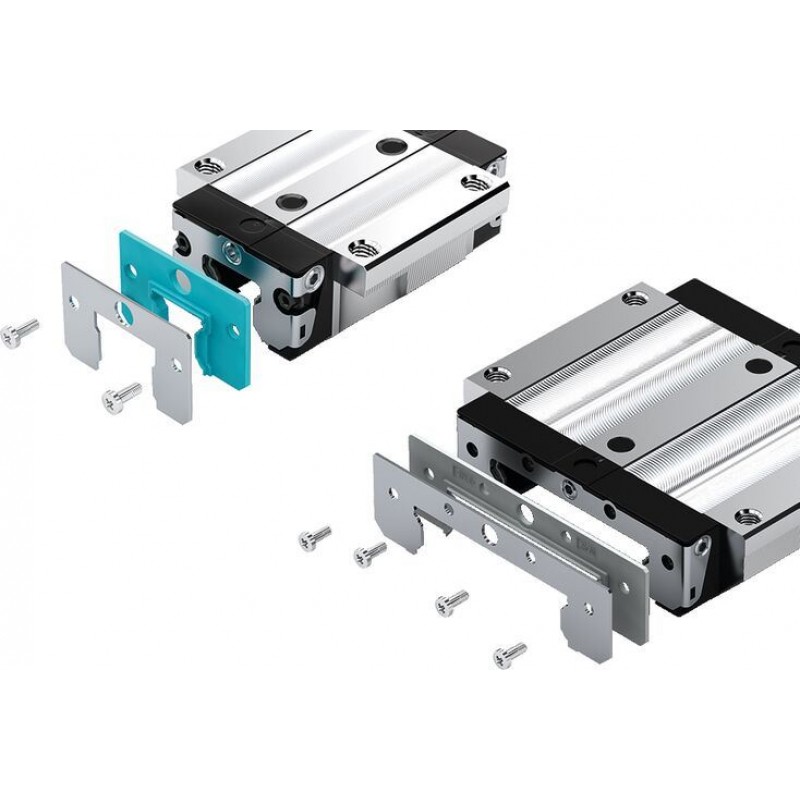

Description
- Material: Corrosion-resistant steel as per DIN EN 10088 with plastic seal
- Design: bright
- Two sections

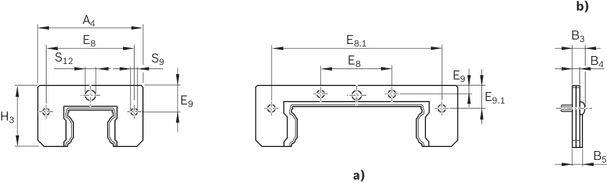

Dimensions
| a) | Front seal, wide |
| b) | Fixing screw shown is an example |
Dimensions
| Size | 15 | 20 1) | 25 1) | 30 | 35 | 45 | 55 | 20/40 2) 3) | 25/70 2) | 35/90 2) | |
| A4 | mm | 32 | 42 | 47 | 59 | 69 | 85 | 98 | 60 | 99 | 128.6 |
| B3 | mm | 4.3 | 4.9 | 5.7 | 7.1 | 7.7 | 4.6 | 4.9 | 5.7 | ||
| B4 | mm | 2.2 | 2.5 | 3.3 | 4 | 2.5 | 3.3 | ||||
| B5 | mm | 3 | 3.3 | 4.5 | 5.5 | 3.3 | 4.5 | ||||
| E8 | mm | 24.55 | 32.4 | 38.3 | 48.4 | 58 | 69.8 | 80 | 18 | 35 | 79 |
| E8.1 | mm | - | 53.4 | 83.5 | 116 | ||||||
| E9 | mm | 6.3 | 6.8 | 11 | 14.1 | 17 | 20.5 | 21.5 | 2.65 | 4.3 | 5.8 |
| E9.1 | mm | - | 7.35 | 10.7 | 28.9 | ||||||
| H3 | mm | 19 | 24.3 | 29 | 34.5 | 39.5 | 49.5 | 56 | 21.7 | 28.6 | 41 |
| Ø S9 | mm | 3,5 | 4 | 5 | 6 | 3,5 | 4 | ||||
| Ø S12 | mm | 4,3 | 5,1 | 7 | 4 | 7,3 | 7 | ||||
| 1) | Not for ball runner blocks F.N (flanged ... low) and S.N (slimline ... low) |
| 2) | Wide ball rail system |
| 3) | Attention: The new front seal is not combinable with existing ball guide rail R167. 8! |
Mounting
Note for mounting
- The fastening screws are included.
- Observe the minimum screw-in depth when connecting lube ports to end faces.
- Observe the mounting instructions.
Ordering codes
Material numbers
| Size | Part number | CAD data | Buy | Mass |
| g | ||||
| 15 | R161912120 | 6 | ||
| 20 1) | R161982120 | 8 | ||
| 25 1) | R161922130 | 10 | ||
| 30 | R161972130 | 18 | ||
| 35 | R161932130 | 25 | ||
| 45 | R161942130 | 55 | ||
| 55 | R161952130 | 65 | ||
| 20/40 2) 3) | R161952220 | 7.5 | ||
| 25/70 2) | R161922220 | 14.5 | ||
| 35/90 2) | R161932220 | 40 |
| 1) | Not for ball runner blocks F.N (flanged ... low) and S.N (slimline ... low) |
| 2) | Wide ball rail system |
| 3) | Attention: The new front seal is not combinable with existing ball guide rail R167. 8! |
