Description
Product description

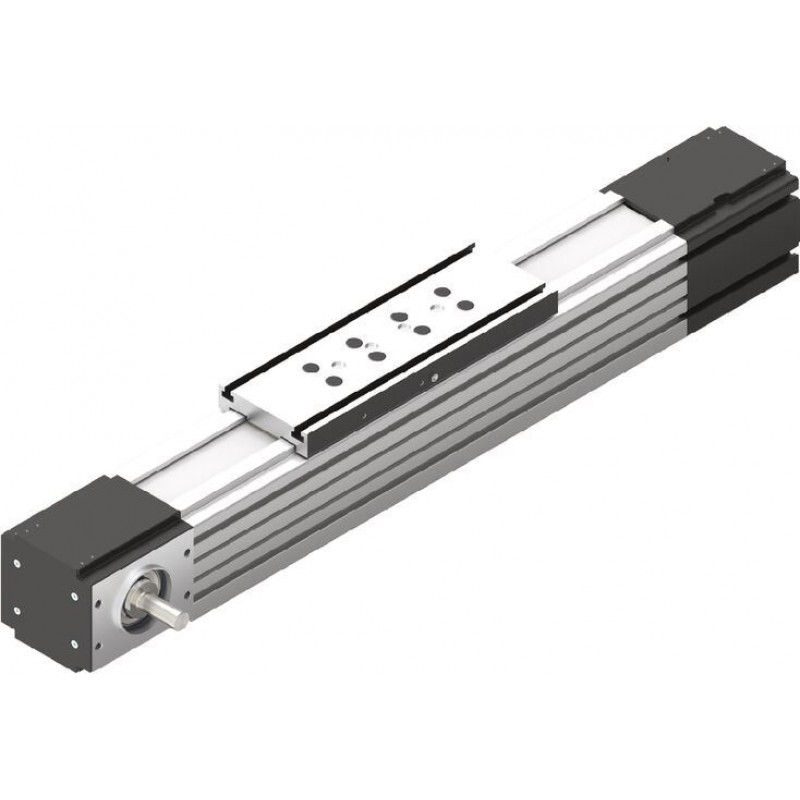

Rexroth linear modules are precise, ready-to-mount guide systems that combine high-performance characteristics with compact dimensions. Rexroth provides a favorable price/performance ratio and fast delivery times.
Linear modules can be delivered complete with motors, controllers and control system.
Structural design
- Ready-to-install linear modules in any length up to Lmax
- Realization of greater lengths of up to 10000 mm
- Extremely compact aluminum profile with integrated Rexroth cam roller guide with inserted cam rollers (cam rollers, set to zero-clearance via eccentric shafts)
- Aluminum carriages with T-grooves and centering holes and central lubrication point (oil lubrication!)
- High-performance toothed belt (AT profile) for high drive torques with simultaneously high rigidity
- Protection of the guide components by toothed belt
- Version available without drive (support axle)
Attachments
- Planetary gearbox with various gear ratios
- Motor attachment kits according to customer specification
- Servomotor
- Magnetic field sensors for easy assembly directly on the profile frame
- Switches proximity or mechanical, cable channel
Attachments (range of accessory products)
- Sensors and extension cables
- Switches (proximity or mechanical)
- Cam switch
- Socket and plug
- Aluminum profile cable channel
- Clamping fixtures and sliding blocks
- Connecting shafts
- Connecting technology for linear motion systems
Caution: Linear modules with cam roller guide to be lubricated with oil only!
Structure and attachments
Structural design
1 End head (drive side)
2 Toothed belt
3 Carriage
4 End head (clamping side)
5 Main body
Attachments:
6 Mechanical switch
7 Cable channel
8 Magnetic field sensor
9 Switch bracket
10 Proximity switch
11 Socket/plug
Models
| 1) | Journal for motor attachment right or left |
| 2) | Journal for motor attachment on both sides |
| 3) | With gear reducer (motor mounting via clamping hub) |
Carriage variants
Carriage (TT) with T-grooves
Technical data
General technical instructions
Note on dynamic load capacities and load moments
Determination of the dynamic load capacities and load moments is based on a travel life of 100 000 m. Often only 50 000 m is actually stipulated.
For comparison:
Multiply values C, Mt and ML from the table by 1.26.
Suitable loads
Regarding the desired nominal life, in general loads for Fcomb, Fm up to around 20 % of the dynamic characteristic values (C, Mt, ML) have generally proven suitable.
See the "Calculation" document in the "Project planning instructions" chapter for the respective Linear Module.
Do not exceed the technical data for the Linear Motion System.
Application point of the effective force (Z1)
General technical instructions
Note: Take note of the section "General technical instructions"!
Length calculation of the Linear Motion System
For length calculation values, see the "General Technical Data" table.
Load capacities and moments
| Size | MLR-080 | |
| Number of carriages | 1 | |
| Lca | mm | 190 |
| Cy | N | 17150 |
| Cz | N | 10050 |
| Mt | Nm | 226 |
| ML | Nm | 316 |
| Mx max | Nm | 35 |
| My max | Nm | 158 |
| Mz max | Nm | 158 |
| Fy max | N | 2500 |
| Fz1 max | N | 1500 |
| Fz2 max | N | 1500 |
| Z1 | mm | 50 |
| ly | cm⁴ | 156 |
| lz | cm⁴ | 222 |
General technical data
| Size | MLR-080 | |
| Number of carriages | 1 | |
| Lca | mm | 190 |
| Lad | mm | 100 |
| smin 1) | mm | 100 |
| Lmax | mm | 10000 |
| mca | kg | 1.7 |
| Repeatability (up to ...) | mm | ± 0.05 |
| 1) | Minimum required travel to ensure a reliable lubrication distribution! If this cannot be achieved, please consult Bosch Rexroth. |
General Technical Data dependent on design / gear unit
| Size | Design / gear unit | kg fix | kg var | Lad |
| kg | kg/mm | mm | ||
| MLR-080 | 0000 | 0,0 | 0,0075 | 100 |
| F010, F011, F020 | 3,4 | |||
| G010, G011 | 4,1 |
Note: Adhere to the section "General technical instructions" and the document "Calculation" in the chapter "Project planning instructions".
Getriebedaten
| Size | Gear type1) | i | Mge2) | MRge | nge2) | Jge | mge | Motor |
| Nm | Nm | rpm | kgm2 | kg | ||||
| MLR-080 | PG080 | 3 | 136 | 0,60 | 7000 | 0,0001521 | 3,0 | MS2N06 |
| 2,8 | MS2N05 | |||||||
| 2,0 | MSM041B | |||||||
| 5 | 176 | 0,50 | 7000 | 0,0001290 | 3,0 | MS2N06 | ||
| 2,8 | MS2N05 | |||||||
| 2,0 | MSM041B | |||||||
| 10 | 61 | 0,45 | 7000 | 0,0001246 | 3,0 | MS2N06 | ||
| 2,8 | MS2N05 | |||||||
| 2,0 | MSM041B |
| 1) | Planetary gearbox |
| 2) | The limits of the linear motion system must not be exceeded. For more information about calculations, see the chapter "Project planning instructions". |
Note: Adhere to the section "General technical instructions" and the document "Calculation" in the chapter "Project planning instructions".
Drive data
| Size | i | Mp | u | vmax |
| kJ fix | kJ var | kJ m | MRs | d3 | Bt | Fbp4) | Ft zul5) | cspe | amax |
| Nm | mm/U | m/s | kgmm2 | kgmm | mm2 | Nm | mm | N | N | N | m/s2 | ||||
| MLR-080 | 11) | 36,0 | 205,00 | 10,0 |  | 2235 | 0,3187 | 1064 | 2 | 65,25 | 46AT5 | 1100 | 3200 | 0,81 x 106 | 50 |
| 13) | |||||||||||||||
| 32) | 12,0 | 68,33 | 5,0 |  | 2320 | ||||||||||
| 52) | 7,2 | 41,00 | 4,7 | ||||||||||||
| 102) | 3,6 | 20,50 | 2,4 |
| 1) | Valid for versions: 1 or 2 drive journals |
| 2) | Valid for versions: clamping hub or clamping hub with 2nd journal |
| 3) | Version with keyway |
| 4) | Maximum power that can be transmitted through the engaging teeth that are in the belt pulley. |
| 5) | The maximum permissible tensile load on the belt cross section (belt elasticity limit) is given here for easier comparability. This value represents the load limit in terms of plastic deformation and may not be used to calculate the maximum permissible drive torque. |
Normal operating conditions
| Size | MLR-080 | |
| Permissible ambient temperature with Rexroth servo motor 1) | 0 °C ... +40 °C | |
| Permissible ambient temperature for mechanical system 2) | -10 °C ... +60 °C | |
| smin 3) | mm | 100 |
| 1) | Performance losses from 40°C |
| 2) | No passing below the dew point |
| 3) | Minimum required travel to ensure a reliable lubrication distribution! If this cannot be achieved, please consult Bosch Rexroth. |
Note: Application of dirt is not permitted!
Legend
| Symbol | Description | Unit |
| amax | Maximum acceleration travel | m/s2 |
| Bt | Belt type | - |
| Cy | Dynamic load capacity in y-direction | N |
| Cz | Dynamic load capacity in z-direction | N |
| cspe | Specific spring rate | N |
| d3 | Diameter, belt pulley | mm |
| Fbp | Maximum belt drive transmission force | N |
| Ft zul | Belt elasticity limit | N |
| Fy max | Maximum dynamic load in y-direction | N |
| Fz max | Maximum dynamic load in z-direction | N |
| i | Gear ratio of the gear | - |
| kg fix | Constant for fixed portion of the mass | kg |
| kg var | Constant for variable-length portion of the mass | kg/mm |
| kJ fix | Constant for fixed-length portion of mass moment of inertia | kgmm2 |
| kJ m | Constant for mass-specific portion of mass moment of inertia | mm2 |
| kJ var | Constant for variable-length portion of mass moment of inertia | kgmm |
| L | Length | mm |
| Lad | Additional length | mm |
| Lca | Carriage length | mm |
| Lmax | Maximum length | mm |
| LW | Carriage center-to-center distance | mm |
| ly | Y-axis planar moment of inertia | cm4 |
| lz | Z-axis planar moment of inertia | cm4 |
| mca | Moved mass of system (carriage) | kg |
| ML | Dynamic longitudinal moment load capacity | Nm |
| Mp | Maximum permissible drive torque of the linear system | Nm |
| MRs | Frictional torque of the system | Nm |
| Mt | Dynamic torsional moment load capacity | Nm |
| Mx max | Maximum admissible torsional moment around the x-axis | Nm |
| My max | Maximum admissible torsional moment around the y-axis | Nm |
| Mz max | Maximum admissible torsional moment around the z-axis | Nm |
| se | Excess travel | mm |
| seff | Effective travel distance | mm |
| smax | Maximum travel range | mm |
| smin | Minimum travel | mm |
| u | Lead constant | mm/U |
| vmax | Maximum permissible speed | m/s |
| Z1 | Application point of the effective force | mm |
Maximum values for each size
| Size | MLR-080 | |
| Cy | N | 17150 |
| Cz | N | 10050 |
| Mt | Nm | 226 |
| ML | Nm | 316 |
| Mx max | Nm | 35 |
| My max | Nm | 158 |
| Mz max | Nm | 158 |
| Fy max | N | 2500 |
| Fz1 max | N | 1500 |
| Fz2 max | N | 1500 |
| Lmax | mm | 10000 |
| vmax | m/s | 10 |
Diagrams/characteristic curves

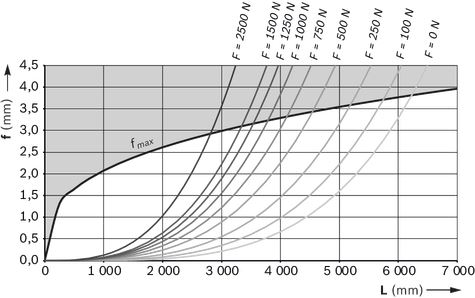

Deflection
Take note of the "General Technical Instructions" section of the "Technical Data" chapter.
The following diagram is valid for:
- both ends firmly fixed (200 to 250 mm per side)
- 6 to 8 screws per side
- fixed substructure
Example
Linear module MLR-080: L = 3000 mm, F = 750 N
From diagram MLR-080: f = 1.2 mm, fmax = 3.0 mm
The deflection f lies well below the maximum permissible deflection fmax, so no additional supports are required.
Dimensions
All dimensions in mm. Drawings not to scale.

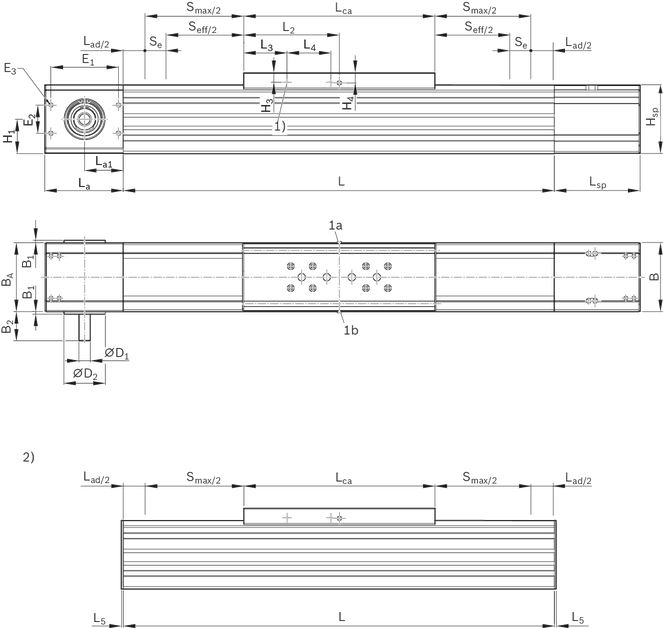

Frame dimension drawings
| 1) | Fastening thread M4 - 10 deep (4x) for switching angle |
| 2) | Version 0000 (without drive / support axle) |
1a / 1b lube fitting for guideway: lubrication on either of the two connections. (funnel-type lube nipple DIN 3405-AM6)
Dimensions
| Size | MLR-080 | ||
| Number of carriages | 1 | ||
| Lca | without IMS | mm | 190 |
| B | mm | 80 | |
| BA | mm | 80 | |
| B1 | mm | 10 | |
| B2 | mm | 53 | |
| ⌀D1 | h7 | mm | 18 |
| ⌀D2 | h7/H7 | mm | 66 |
| E1 | mm | 84 | |
| E2 | mm | 39 | |
| E3 | M6 ‒ 10 mm deep | ||
| H1 | mm | 41 | |
| H3 | mm | 11.5 | |
| H4 | mm | 12.5 | |
| Hsp | mm | 90 | |
| L2 | mm | 145 | |
| L3 | mm | 15 | |
| L4 | mm | 70 | |
| L5 | mm | 2 | |
| La | mm | 102 | |
| La1 | mm | 50 | |
| Lsp | mm | 102 | |

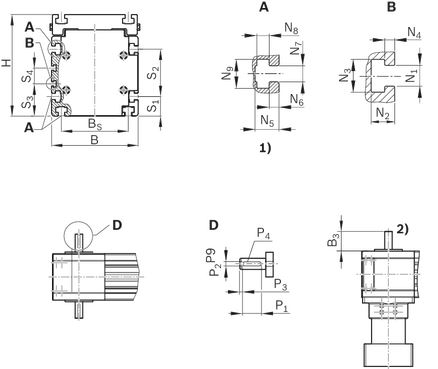

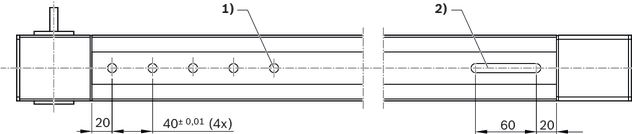

Optional frame with centering holes and elongated hole on the underside
| 1) | 5 x ØZH7 - 2.1 deep |
| 2) | ZH8 - 2.1 deep |
| 1) | for sensor (deviating from MKR; see sensor mounting) |
| 2) | for drive option: Clamping hub with second journal (Ø D1 x B3) |
Dimensions
| Size | MLR-080 | ||
| Number of carriages | 1 | ||
| Lca | without IMS | mm | 190 |
| B | mm | 80 | |
| B3 | mm | 53 | |
| H | mm | 100 | |
| Sliding block | DIN557–M5 | ||
| N1 | mm | 5.2 | |
| N2 | mm | 5.9 | |
| N3 | mm | 8.2 | |
| N4 | mm | 2.5 | |
| N5 | mm | 8.5 | |
| N6 | mm | 2.5 | |
| N7 | mm | 5.2 | |
| N8 | mm | 5 | |
| N9 | mm | 9 | |
| P1 | mm | 32 | |
| P2 | P9 | mm | 6 |
| P3 | mm | 2 | |
| P4 1) | mm | 3.5 | |
| S1 | mm | 18 | |
| S2 | mm | 45 | |
| S3 | mm | 42.5 | |
| ØZ | mm | 9 | |
| 1) | deep |
Carriage dimension drawings
Dimensions
| Size | MLR-080 | |
| B | mm | 78 |
| BG | mm | 60 |
| Lca | mm | 190 |
| Lz | mm | 40 |
| Lz1 | mm | 35 |
| Sliding block | DIN557–M5 | |
| N1 | mm | 5 |
| N2 | mm | 9 |
| N3 | mm | 2.5 |
| N4 | mm | 8.5 |
| N5 | mm | 5.2 |
| ⌀Z H7 | 9 ‒ 2.1 mm deep |
Project planning information
Calculation
Mounting
Mounting
General information
The linear modules are mounted using various fastening elements:
- Clamping fixtures
- Sliding blocks for size -110 and up
- Square nuts
- Spring nuts
- Screws for T-slots as per DIN 787 (no picture).
Length depends on base.
When mounting Linear Modules, please note the maximum tightening torques listed in the table.
Mounting with clamping fixtures
Mounting with sliding blocks
| 1) | 85 (size .. -110) 120 (size -165) |
| Size | A | B | C |
| (mm) | (mm) | (mm) | |
| -040 | 52,2 | 65,5 | - |
| -065 | 81,0 | 95,0 | - |
| -080 | 96,0 | 110,0 | - |
| -110 | 132,0 | 150,0 | 85,0 |
| -140 | 167,0 | 193,0 | 105,0 |
| -145 | 172,0 | 198,0 | 78,0 |
| -165 | 192,0 | 218,0 | 120,0 |

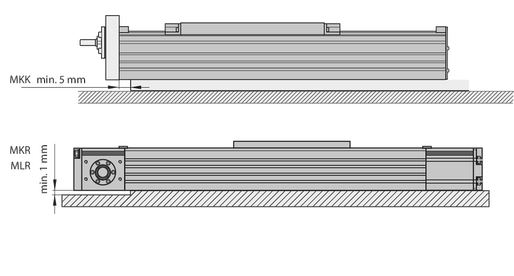

Do not support the linear module on end enclosures, end blocks or on end plates!
The frame is the load-bearing part!
Tightening torques of fastening screws
with friction factor 0.125 strength class 8.8
 | 8.8 | M4 | M5 | M6 | M8 | M10 | M12 |
 | (Nm) | 2,7 | 5,5 | 9,5 | 23 | 46 | 80 |

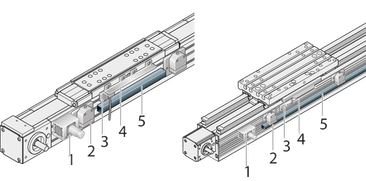

Switching system overview
1 Socket and plug
2 Mechanical switch with attachments
3 Proximity switch
4 Switching cam
5 Mounting duct/cable duct

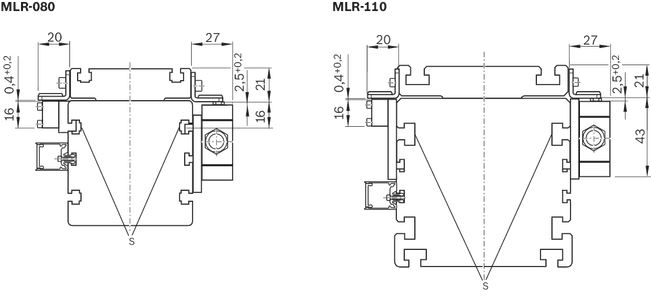

Switch mounting MKK/MKR/MLR-xxx-NN-x
MKK/MKR/MLR-xxx-NN-x
Proximity sensors, mechanical switches and accessories (MKK/MKR/MLR)
Mounting instructions:
The mechanical switches, the proximity sensors and the socket with plug and cable channel are fastened with attachments in T-grooves of the main body. Switch activation is carried out by a switch bracket on the carriage.
| Position | Name | Size -065/-080/-140 /-145-NN-3 | -110-NN-3 | -165-NN-2 |
| Material number | ||||
| 1 | Socket-plug | R117500153 | ||
| 2 | Mechanical switch | see accessories | ||
| Mechanical switch with attachments | R117500151 | |||
| 3 | Proximity sensor | see accessories | ||
| - Attachment parts without sensor | R117500152 | R117520152 | R117500152 | |
| 4 | Switching angle | R117500149 | R117500150 | |
| 5 | Cable duct | R039662017 | ||
| These switching versions can only be ordered with these material numbers. |
| Proximity sensor with additional attachment for | Proximity sensor with additional attachment for | Mechanical switch with attachment for |
 |  |  |
| 1) | Cable length: 3 m |
Socket and plug, cable duct
Attach the socket to the side with the most switches. The socket and plug are not pre-wired. The variable sliding attachment allows switching positions to be optimized during start-up. The plug can be mounted in three directions.
Cable duct
The cable duct is fastened in the T-slots on the side of the frame. Fastening screws widen the profile and ensure that the cable duct is securely mounted.
See the illustration for the position of the slot.
The cable duct will accommodate up to two cables for mechanical switches and three cables for proximity switches.
Fastening screws and cable grommets are included.
Mounting examples of switches
Determination of the switching position
Switching distance: The switching distance is the distance between the carriage center (TM) and the zero point (0) when a switch is actuated (indicated in mm). Example of a mechanical limit switch (assuming the zero point is at L/2):
Maximum switching distance = 0.5 x (max. travel distance) – excess travel = 0.5 x effective stroke
For safe operation of the linear module the excess travel must be greater than the braking path.
For MKR... and MLR...: The acceleration travel sa can be assumed as the reference value for the braking distance.
For MKK...: In most cases, the following is sufficient as a guideline value for the excess travel (braking path): Excess travel = 2 x screw lead P.
Note the smallest possible switching distance (determined by attachments):
mechanical-mechanical = 60 mm; mechanical-proximity = 45 mm; proximity-proximity = 28 mm.
for MKR-145: mechanical-mechanical = 62 mm; mechanical-proximity = 49 mm; proximity-proximity = 35 mm
The switches as well as socket with plug are fixed in the upper T-slots of the frame and actuated by a switch tab on the carriage.
Mounting side of the switches:
| 1) | links (L) |
| 2) | right (R) |
| 3) | Direction of travel |
| 4) | 0.5 x stroke |
| 5) | Excess travel |
| 6) | 0.5 x max. travel path |
Switch connection
S = Slot for sensor holder MLR-xxx-NN-3
Commissioning
Parameterization (start-up)
The nameplate contains reference information on the production of the linear motion system as well as technical start-up parameters.
| Position | Symbol | Description |
| 1 | CNR | Customer's part number |
| 2 | TYP | Short product name |
| 3 | 110 | Size |
| 4 | CS | Customer information |
| 5 | MNR | Part number |
| 6 | FD | Manufacturing date |
| 7 | 7210 | Manufacturing location |
| 8 | smax | Maximum travel range |
| 9 | u | Lead constant without motor attachment |
| 10 | vmax | Maximum speed |
| 11 | amax | Maximum acceleration travel |
| 12 | M1max | Maximum drive torque at motor journal |
| 13 | d | Direction of motor rotation to move in positive (+) direction CW = clockwise CCW = counter clockwise  |
| 14 | i | Gear ratio |
| 15 | QR code |
Maintenance
Lubrication-MLR-xxx-NN-3
Linear modules with cam roller guide (MLR) are designed for oil lubrication. With initial greasing on delivery.
| MLR | Lube nipple | Oil |
| -080 | DIN 3405-A M6 | ISO VG 1000 |
| -110 |
Accessories
Combination examples
| 1) | End of range (‒) |
| 2) | Reference |
| 3) | End of range (+) |
| 4) | Sensors with plug |
| 5) | Sensors with free cable end |
| 6) | Plug |
| 7) | Sensor extensions |
| 8) | Performance specification: suitable for flexing installation, torsion-resistant, weld spark-resistant |
| 9) | Plug |
| 10) | Adapter |
| 1) | End of range (‒) |
| 2) | Reference |
| 3) | End of range (+) |
| 4) | Screw plug |
| 5) | Sensors with plug |
| 6) | Sensors with free cable end |
| 7) | Sensors with plug |
| 8) | Plug |
| 9) | Passive distributor |
| 10) | Holding plate |
| 11) | Passive distributor |
| 12) | Extensions for passive distributors |
| 13) | Performance specification: suitable for flexing installation, torsion-resistant, weld spark-resistant |
| 14) | Higher-level control system |
Clamping fixtures for Linear Modules
Clamping fixtures for Linear Modules
Sliding blocks and springs for Linear Modules
Sliding blocks and springs for Linear Modules
Anchor strips for Linear Modules
Anchor strips for Linear Modules
Centering rings for Linear Modules
Centering rings for Linear Modules
Square nuts for Linear Modules
Square nuts for Linear Modules
Cable duct
Cable duct
Steel connecting shafts with disk-pack coupling for Linear Modules MKR 080, 110, 165
Steel connecting shafts with disk-pack coupling for Linear Modules MKR 080, 110, 165
Connecting shafts with membrane coupling for Linear Modules MKR 040, 065, 080, 110
Connecting shafts with membrane coupling for Linear Modules MKR 040, 065, 080, 110
Frequency meter
Frequency meter
Proximity sensor with free line end
Proximity sensor with free line end
Proximity sensor with M8x1 plug
Proximity sensor with M8x1 plug
Additional components for inductive sensor
Additional components for inductive sensor
Magnetic sensors
Magnetic sensors
Mechanical switch
Mechanical switch
Mechanical switch with M8x1 plug
Mechanical switch with M8x1 plug
Additional components for mechanical switch
Additional components for mechanical switch
Extension pieces - assembled on one side
Extension pieces - assembled on one side
Extension pieces - assembled on two sides
Extension pieces - assembled on two sides
Plug-in connector
Plug-in connector
Adapter
Adapter
Passive distributors
Passive distributors
Holding clip
Holding clip
Plug screw
Plug screw
Extension pieces
Extension pieces
Socket and plug
R117500153
Socket and plug
R117500153
Switching angle
Switching angle
Nozzle pipe
R3455 031 06
Nozzle pipe
R3455 031 06
- For manual grease guns
- For the lubrication of funnel-type and ball-type lube nipples
Delivery notes
Form of delivery
Product generation 3:
Linear Modules with a ball screw drive or belt drive are delivered fully assembled.
Gear/motor attachment interface:
If a combination of attachment interface, gears and motor has been selected, the attachment of the components is done as shown in the figure below. When ordering Linear Modules with only an attachment interface (without gears and motor!), not all parts can be mounted. Final assembly must then be carried out by the customer. All necessary instructions and parameters for professional assembly are included. The installation version is selected and determined during product configuration, and it is a part of the order key.
MKR with planetary gearbox (G010, G011)
1 Linear module
2 Motor
3 Mount and coupling
4 Timing belt side drive
5 Carriage
6 Motor connector
7 Gearing
Motor connector position
- Linear Module in horizontal installation position (carriage at the top)
- View toward the motor from the rear
- For selectable motor connector locations, see "Order details" chapter, "Configuration and ordering" document.
Example:
timing belt side drive S270
Motor connector position 180°
Switching system
Magnetic sensors are included as loose parts. Further switching system components can be ordered from the range of accessory products. The exact setting of the position must be carried out before start-up. See “Mounting” chapter.
Lubrication
On delivery, Linear Modules of product generation 3 are supplied with initial greasing, preserved or prepared for connection to a central lubrication system according to the optionally selected lubricant version. For information on lubricants, see section “Maintenance”.
Documentation
Each Linear Module is supplied with the appropriate documentation.
Safety Instructions
Required and supplementary documentation
For further instructions and information, please refer to the documentation for this product.
You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.
We would also be happy to send you the documents that you want.
If you are unsure about using this product, please contact Bosch Rexroth.
Motor attachment
All dimensions in mm. Drawings not to scale.
Abmessungen
| Size | i | Motor coding | ▢ E | Lf | Lge |
| mm | mm | mm | |||
| MLR-080 | 3 / 5 / 10 | MSM041B-0300 | 80 | 54 | 98,5 |
| MS2N05-B0BTN | 100 | 101,5 | |||
| MS2N05-C0BTN | |||||
| MS2N05-D0BRN | |||||
| MS2N06-B1BNN | 115 | 113,5 | |||
| MS2N06-D1BNN |
Measurement and test reports
load errorDownloads
 | Declaration of Incorporation for single axis Linear Motion Systems Certificate | R320103141 | 2020-06-01 | All languages | PDF | 409k Product Groups: Linear axes and electromechanical cylinders |
| Safety Instructions for Linear Motion Systems Manual | R320103152_en | 2015-01-01 | English | PDF | 593k Product Groups: Linear axes and electromechanical cylinders |
| Linear Modules MKK/MKR/MLR -040/-065/-080/-110/-140/-145-NN-3/-165-NN-2 Manual | R320103169_EN | 2021-11-01 | English | PDF | 6.9MB Product Groups: Linear Modules only available as PDF |
| Linear Modules MKK / MKR / MLR Catalog | R999000496 | 2021-03-01 | English | PDF | 17.5MB Product Groups: Linear Modules |
Цена по запросу
Цена по запросу
Цена по запросу
Цена по запросу
Нет отзывов об этом товаре.
