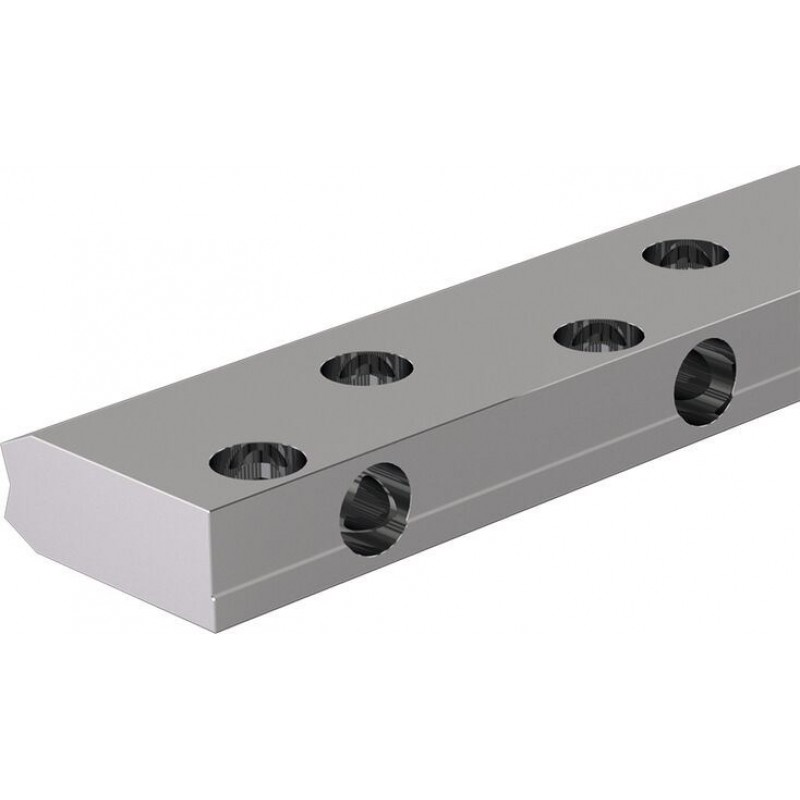

Description
- Shaft support rail material: Aluminum
- Combine with Linear Sets with side opening for heavy-duty linear guides
- Reference edge makes aligning easier (installation)
Technical data
Technische Daten
| Ød | mm | 20 | 25 | 30 | 40 | 50 |
| L | mm | 600 | ||||
| Tolerance for L | - 500 µm - 1500 µm | |||||
| m | kg | 1 | 1.3 | 1.9 | 2.7 | 3.7 |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| L | Length | mm |
| m | Mass | kg |

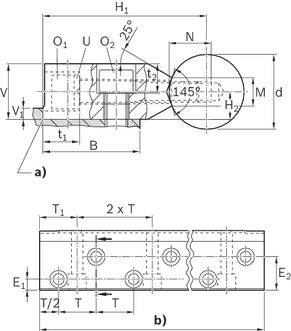

Dimensions
| a) | Reference edge |
| b) | Length |
Dimensions
| Ød | mm | 20 | 25 | 30 | 40 | 50 | |
| B 1) | mm | 30 | 36 | 42 | 50 | 60 | |
| E1 | mm | 8 | 10 | 12 | 15 | ||
| E2 | mm | 22 | 26 | 30 | 38 | 45 | |
| H1 2) | js6 | mm | 52 | 62 | 72 | 88 | 105 |
| H2 | mm | 7.5 | 10 | 12.5 | 15 | 17.5 | |
| H2 2) | 7.5 mm ±0.012 | 10 mm ±0.012 | 12.5 mm ±0.012 | 15 mm ±0.012 | 17.5 mm ±0.012 | ||
| M | mm | 8.3 | 10.8 | 11 | 15 | 19 | |
| O1 3) | M6x45 | M8x50 | M10x60 | M12x70 | M14x80 | ||
| O2 4) | M6x16 | M8x20 | M10x25 | M12x30 | M14x35 | ||
| T | mm | 37.5 | 50 | ||||
| t1 | mm | 8.5 | 15 | 15.3 | 19 | 24 | |
| t2 | mm | 8.5 | 11 | 13.5 | 16 | 18.5 | |
| U 5) | mm | 6 | 8 | 10 | 12 | 14 | |
| V | mm | 15 | 20 | 25 | 30 | 35 | |
| V1 1) | max. | mm | 4 | 5.5 | 7 | 8.5 | 9 |
| 1) | Recommended design: No reference edge on opposite side (V1) and align parallel over shafts. |
| 2) | Measured with gauging shaft, nominal dimension d and length about 50 mm. |
| 3) | ISO 4762-8.8 |
| 4) | ISO 4762-8.8, recommendation applies for bolting in steel or cast iron threads. |
| 5) | DIN 7980, discontinued. Spring washer commercially available. |
Project planning information
Life expectancy calculation
Design, ordering information, installation
Certification
Directives and standards
Safety Instructions
Notes
Downloads
 | Linear Bushings and Shafts Manual | R320103669 | 2005-07-01 | English, French, German, Italian | PDF | 3.6MB Product Groups: Linear Bushings and Shafts |
| Linear Bushings Catalog | R999000488 | 2015-02-01 | English | PDF | 14.9MB Product Groups: Linear Bushings and Shafts |
