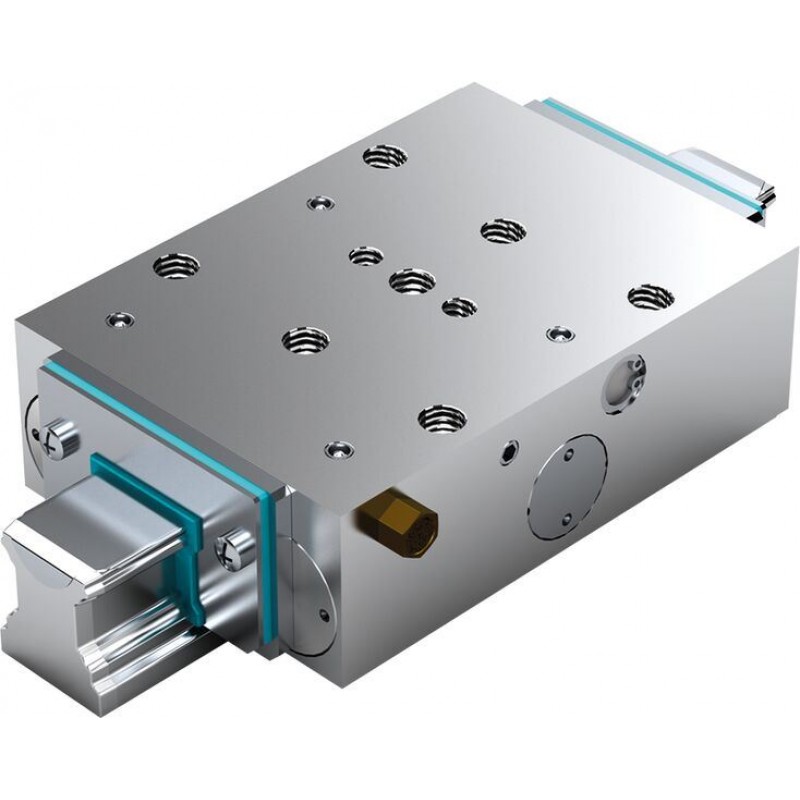

Description
- Clamps and brakes with spring energy accumulator
- Positive locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect
- Dynamic and static stabilization in the axial direction
- Clamps and brakes without pressurization (spring energy)
- Compact design, compatible with DIN 645
Features
- Up to 1 million clamping cycles
- Up to 2,000 emergency braking operations
- Integrated all-around sealing
- High continuous output
- High positioning accuracy
- Mechanical gate valve gear mechanism
- Solid, rigid steel housing, chemically nickel-plated
- Extremely low air consumption
- Maintenance-free
- 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection
- Can be used on all SNS Ball Guide Rails
- Very high axial holding forces of up to 7700 N at 5.5 bar release pressure with high-power spring energy accumulator
- Increased holding force of up to 9,200 N thanks to additional pressurization on the air-plus port
Product description
Functional principle
Air pressure: 0 bar
Clamps and brakes with spring force
In the event of a pressure drop, the clamping or braking effect is achieved via a dual acting gate valve gear mechanism with one spring assembly (spring energy accumulator) in each case.
An integrated quick-exhaust valve provides for short reaction times.
Air pressure: 4.5 - 8 bar (MBPS)
5.5 - 8 bar (UBPS)
Decompression with air pressure
The clamping profiles are held apart by the compressed air.
- Free movement is possible
Technical data
General technical data
| Size | 25 | 30 | 35 | 45 | 55 | |
| Spring energy holding force with standard air port 1) | N | 1500 | 2500 | 2800 | 5200 | 7700 |
| Spring energy holding force with air-plus port 2) | N | 2650 | 3300 | 3800 | 7600 | 9200 |
| Air consumption (normal liter) standard air port | dm³/stroke | 0.08 | 0.111 | 0.139 | 0.153 | 0.554 |
| Air consumption (normal liter) air-plus port | dm³/stroke | 0.165 | 0.274 | 0.303 | 0.483 | 0.952 |
| Max. pneumatic operating pressure | bar | 8 | ||||
| Release pressure min. | bar | 5.5 | ||||
| Mass | kg | 1.2 | 1.8 | 2.25 | 6.2 | 9.4 |
| Operating conditions | ||||||
| Size | 25 | 30 | 35 | 45 | 55 | |
| Permissible ambient temperature (min ... max) | 0 °C ... +70 °C | |||||
| 1) | Holding force by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| 2) | Increased holding force by additional air admission at air-plus port with 6.0 bar. Circuit across 5/2- or 5/3-way directional control valve. |
Symbols/Circuit diagrams
Circuit1) with standard air connection
1) Holding force by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
a) Air port
b) Air filter
1 Air connection
2 Working connection
3 Exhaust
Circuit1) for air-plus port
1) Increased holding force by additional air admission at air-plus port with 6.0 bar. Circuit across 5/2- or 5/3-way directional control valve.
a) Air port
b) Air-plus port
1 Air connection
2 4 Working connections
3 5 Exhaust
Fields of application
Clamping
- in the event of loss of pressure
- during assembly work and standstill of the machine without energy
- of machine tables from machining centers
- of z-axis positioning in the resting position
Braking
- in the event of energy failure
- in the event of a pressure drop
- support of the emergency stop function
- support as brake for linear motors

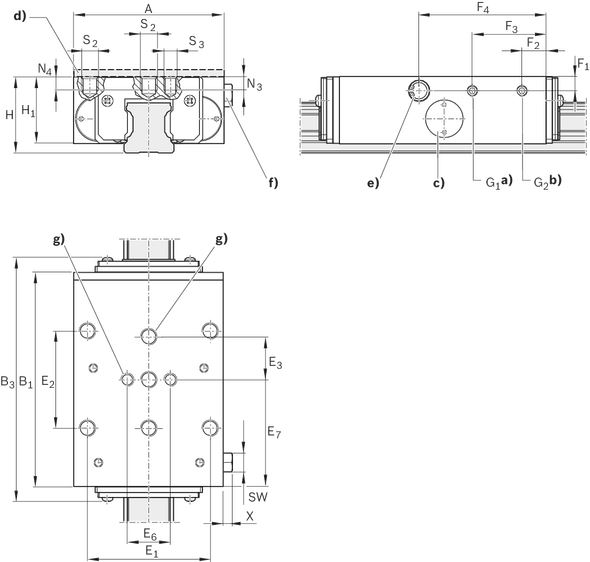

Dimensions
| a) | Air connection*) G1 on two sides for release pressure |
| b) | Connection*) G2 on two sides for air-plus port or air filter |
| c) | Adjusting screw on two sides |
| d) | Spacer plate (accessory) |
| e) | Exhaust on two sides |
| f) | Air filter: Connection G2 (possible on two sides) |
| g) | At least two middle mounting holes must be used! |
| *) Only one connection needed. | |
| All connections sealed upon delivery. |
Dimensions
| Size | 25 | 30 | 35 | 45 | 55 | |
| A | mm | 70 | 90 | 100 | 120 | 140 |
| B1 | mm | 99 | 109 | 197 | ||
| B3max | mm | 115.1 | 128.7 | 131 | 220.1 | 221.6 |
| E1 | mm | 57 | 72 | 82 | 100 | 116 |
| E2 | mm | 45 | 52 | 62 | 80 | 95 |
| E3 | mm | 20 | 22 | 26 | 30 | 35 |
| E6 | mm | 20 | 22 | 24 | - | |
| E7 | mm | 49.5 | 54.5 | 98.5 | ||
| F1 | mm | 6.5 | 8 | 12 | 13 | |
| F2 | mm | 11 | 32 | |||
| F3 | mm | 34.3 | 40.8 | 167 | 165 | |
| F4 | mm | 59 | 66.5 | 106.5 | 103.5 | |
| G1 | 3 Verstellelemente | M5 | G1/8" | |||
| G2 | 3 Verstellelemente | M5 | G1/8" | |||
| H | mm | 36 | 42 | 48 | 60 | 70 |
| H1 1) | mm | 31 | 37 | 42 | 52 | 60 |
| N3 | mm | 7 | 8 | 10 | - | |
| N4 | mm | 7 | 8 | 10 | 12 | 14 |
| S2 | M8 | M10 | M12 | M14 | ||
| S3 | M6 | M8 | - | |||
| SW | Ø8, SW7 | Ø15, SW13 | ||||
| X | mm | 5.5 | 6.5 | |||
| 1) | Ball Runner Block .H. (...high...) Spacer plate necessary. Available on request. |
