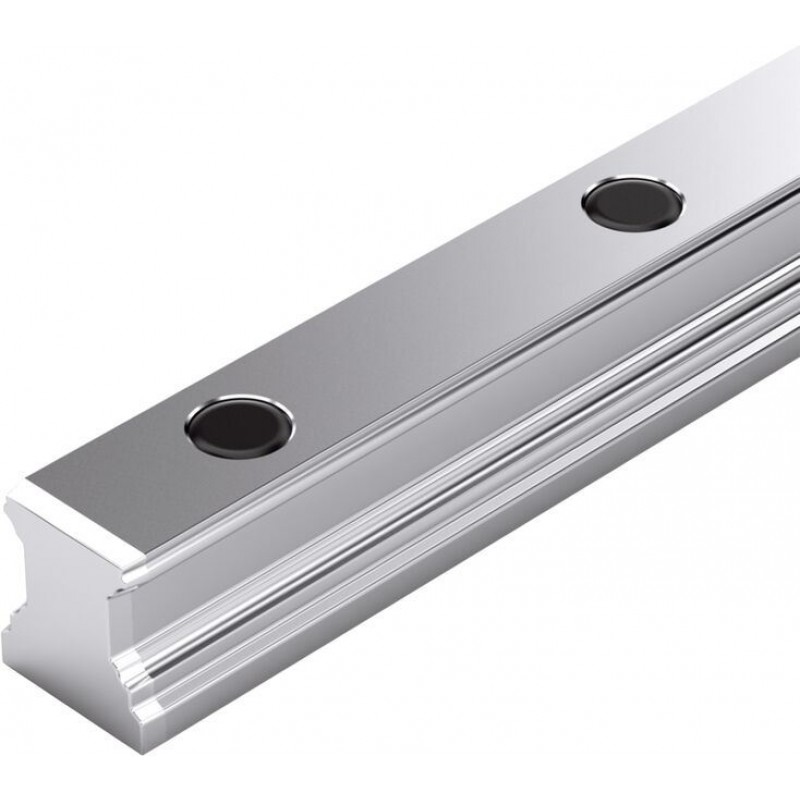

Ball Guide Rails SNS Resist CR with plastic mounting hole plugs R1645 .0. ..
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Corrosion-resistant coating Resist CR, matte silver hard chrome plated
- High torque capacity
- Top rigidity in all load directions
- Top rigidity in all load directions
- High torque capacity
- For mounting from above with plastic mounting hole plugs
- Corrosion-resistant coating Resist CR, matte silver hard chrome plated
- No extra space needed at rail ends
Features
- Observe the notes for mounting! Please request the "Mounting Instructions for Ball Rail Systems".
Product description
Ball rails can be cut to the length required by the customer.
The maximum lengths for one-piece guide rails can be found in the "Technical data" chapter.
If longer rails are required, Bosch Rexroth supplies them as composite ball guide rails.
Corrosion-resistant Resist CR coating
Steel ball guide rail with corrosion-resistant coating, mat silver finish, hard chrome-plated.
Ball guide rails with coated end faces
▶ Coated end faces, chamfers and end-face thread, material numbers: – R16.. ... 41 or R16.. ... 71
▶ Multi-part ball guide rails are chamfered on two sides at the joints.
Ball guide rail with temperature control
Product description of Ball Rail Systems
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| m | kg/m | 1.4 | 2.4 | 3.2 | 5 | 6.8 | 10.5 | 16.2 | 22.4 |
| Lmax | mm | 3836 | 3776 | 3836 | 3746 | ||||
| Material | CR | ||||||||
| Operating conditions | |||||||||
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) 1) | 0 °C ... +80 °C | ||||||||
| 1) | Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes
Dimensions
Dimensions
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | ||||
| A2 | mm | 15 | 20 | 23 | 28 | 34 | 45 | 53 | 63 | |||
| D | mm | 7.4 | 9.4 | 11 | 15 | 20 | 24 | 26 | ||||
| H2 | mm | 16.2 | 20.55 | 24.25 | 28.35 | 31.85 | 39.85 | 47.85 | 59.85 | |||
| N6 | 10.3 mm ±0.5 | 13.2 mm ±0.5 | 15.2 mm ±0.5 | 17 mm ±0.5 | 20.5 mm ±0.5 | 23.5 mm ±0.5 | 29 mm ±0.5 | 38.5 mm ±0.5 | ||||
| ØS5 | 4.5 cm | 4.5 | 6 cm | 6 | 7 cm | 7 | 9 | 14 | 16 | 18 | ||
| T | mm | 60 | 80 | 105 | 120 | 150 | ||||||
| T1 min | mm | 10 | 12 | 16 | 18 | 20 | ||||||
| T1 s | mm | 28 1) | 38 1) | 50.5 1) | 58 1) | 73 1) | ||||||
| T1 max | mm | 50 | 68 | 89 | 102 | 130 | ||||||
| nB | 64 | 48 | 36 | 32 | 25 | |||||||
| 1) | Preferred dimension T1S Recommended with tolerances ± 0.75. |
Legend
| Symbol | Description | Unit |
| T1 min | Minimum distance | mm |
| T1 max | Maximum distance | mm |
| T1 s | Preferred dimension | mm |
| T | Spacing of guide rail | mm |
| nB | Maximum number of holes |
Project planning information
Combinations of different accuracy classes
For Ball Runner Blocks and Ball Guide Rails Resist CR, hard chrome plated, be aware of differing tolerances of dimensions H and A3 (see "Accuracy classes and their tolerances").
Recommended Ball Runner Blocks for Resist CR Ball Guide Rails of accuracy class H and preload class C0 and C1
Recommended Ball Runner Block, size 15 – 65:
- Accuracy class H
- Preload class C0
Recommended Ball Runner Block, size 30 – 65:
- Accuracy class H
- Preload class C1
Mounting
load errorCertification
load errorSafety Instructions
load errorDownloads
 | Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog BSHP Ball Rail Systems Catalog | R999000485 | 2020-10-01 | English | PDF | 15MB Product Groups: Ball Rail Systems only available as PDF |
