Артикул: RX8606

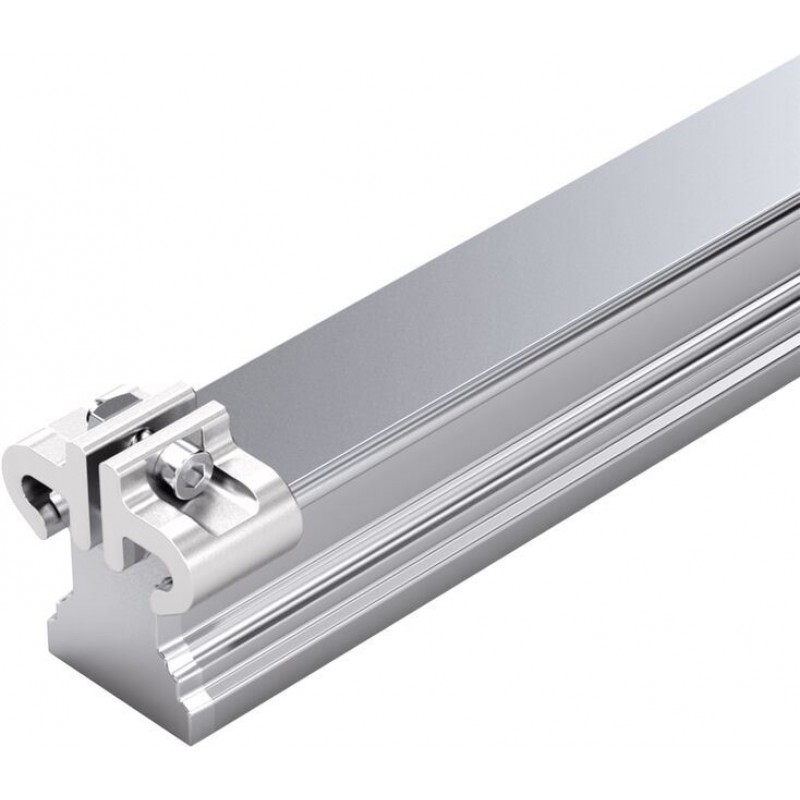

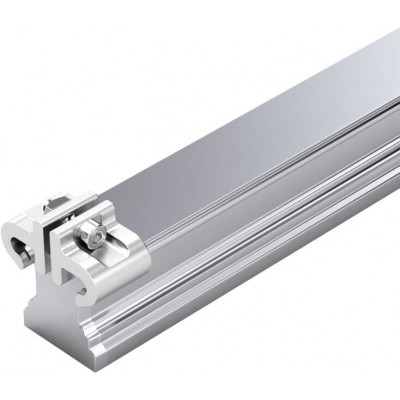

Ball Guide Rails SNO with cover strip and strip clamps R1605 .B. ..
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- With smooth base for mounting surfaces made of mineral cast parts
- High torque capacity
- Top rigidity in all load directions
- Area of application: For very harsh environments
- With smooth base for mounting surfaces made of mineral cast parts
- For mounting from above
- With cover strip made of corrosion-resistant spring steel as per DIN EN 10088
- Aluminum strip clamps (without threaded holes on end faces)
Features
- Robust strip clamp
- Top rigidity in all load directions
- High torque capacity
- A single cover for all holes. No end-face hole required for strip clamp.
Product description
Ball rails can be cut to the length required by the customer.
The maximum lengths for one-piece guide rails can be found in the "Technical data" chapter.
If longer rails are required, Bosch Rexroth supplies them as composite ball guide rails.
Proven cover strip for the Ball Guide Rail mounting holes
▶ One cover for all bore holes saves time and costs
▶ Made of corrosion-resistant spring steel as per DIN EN 10088
▶ Easy and safe during mounting
▶ Clip on and secure
Ball guide rail with temperature control
Product description of Ball Rail Systems
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 25 | 30 | 35 | 45 | |
| m | kg/m | 3.2 | 5 | 6.8 | 10.5 |
| Lmax | mm | 5813 | 5836 | 5771 | |
| Material | CS | ||||
| Operating conditions | |||||
| Size | 25 | 30 | 35 | 45 | |
| Permissible ambient temperature (min ... max) 1) | 0 °C ... +80 °C | ||||
| 1) | Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes
Dimensions

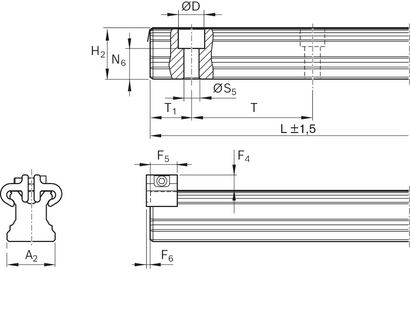

Dimensions
| Size | 25 | 30 | 35 | 45 | |
| A2 | mm | 23 | 28 | 34 | 45 |
| F4 With cover strip | mm | 8.2 | 8.7 | 11.7 | 12.5 |
| F5 | mm | 13 | 16 | 18 | |
| F6 | mm | 2 | 2.2 | ||
| D | mm | 11 | 15 | 20 | |
| Dimension H2 with cover strip | mm | 24.45 1) | 28.55 1) | 32.15 2) | 40.15 2) |
| N6 | 15.2 mm ±0.5 | 17 mm ±0.5 | 20.5 mm ±0.5 | 23.5 mm ±0.5 | |
| ØS5 | mm | 7 | 9 | 14 | |
| T | mm | 60 | 80 | 105 | |
| T1 min | mm | 13 | 16 | 18 | |
| T1 s | mm | 28 3) | 38 3) | 50.5 3) | |
| T1 max | mm | 50 | 68 | 89 | |
| nB | 64 | 48 | 36 | ||
| 1) | with cover strip 0.2 mm |
| 2) | with cover strip 0.3 mm |
| 3) | Preferred dimension T1S Recommended with tolerances ± 0.75. |
Legend
| Symbol | Description | Unit |
| T1 min | Minimum distance | mm |
| T1 max | Maximum distance | mm |
| T1 s | Preferred dimension | mm |
| T | Spacing of guide rail | mm |
| nB | Maximum number of holes |
Mounting
Notes
▶ Secure cover strip!
▶ Strip clamps included in scope of delivery.
▶ Observe the notes for mounting!
▶ Please request the "Mounting instructions for roller rail systems" and "Mounting instructions for cover strip".
▶ Composite Ball Guide Rail also available.
General mounting instructions
Accessories
Standard loose cover strip with snap fit
Standard loose cover strip with snap fit
- The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
- No need to plug every single hole.
- No time delay while waiting for adhesive to harden when using adhesive tape.
- Can be mounted and removed several times (up to four times).
- For initial installation, storage and replacement
Loose cover strip with sliding fit
Loose cover strip with sliding fit
- The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
- No need to plug every single hole.
- No time delay while waiting for adhesive to harden when using adhesive tape.
- Can be mounted and removed several times (up to four times).
- For initial installation, storage and replacement
Expanding tool
for Ball Rail Systems
Expanding tool
for Ball Rail Systems
- For creating a sliding fit in the cover strip
Cover strip mounting kit
for Ball Rail Systems
Cover strip mounting kit
for Ball Rail Systems
- Mounting aid and lift-off plate
Protective caps for Ball Rail Systems
R1619 .39 00
Protective caps for Ball Rail Systems
R1619 .39 00
- For ball guide rails with threaded holes at the end faces
- Plastic protective cap, black
- Screws made of corrosion-resistant steel as per DIN EN 10088
- Washer made of galvanized steel
Strip clamps for Ball Rail Systems
R1619 .39 .0
Strip clamps for Ball Rail Systems
R1619 .39 .0
- For ball guide rails without threaded holes at the end faces
- Aluminum strip clamps (anodized)
- Clamping screws and nuts made of corrosion-resistant steel as per DIN EN 10088
Plastic mounting hole plugs for Ball Rail Systems
R1605 .0
Plastic mounting hole plugs for Ball Rail Systems
R1605 .0
Steel caps for Ball Rail Systems
R1606 75
Steel caps for Ball Rail Systems
R1606 75
Mounting tool for steel caps
Mounting tool for steel caps
- Two-piece, with mounting instructions
- The two-piece mounting tool is suitable for mounting hole plugs in built-in guide rails (mounting instructions enclosed)
V-guide for lateral retention of Ball Guide Rails
V-guide for lateral retention of Ball Guide Rails
- Mounting aid for lateral retention of ball guide rails
- Material: Steel
- Design: black finish
Certification
load errorSafety Instructions
load errorDownloads
 | Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog BSHP Ball Rail Systems Catalog | R999000485 | 2020-10-01 | English | PDF | 15MB Product Groups: Ball Rail Systems only available as PDF |
