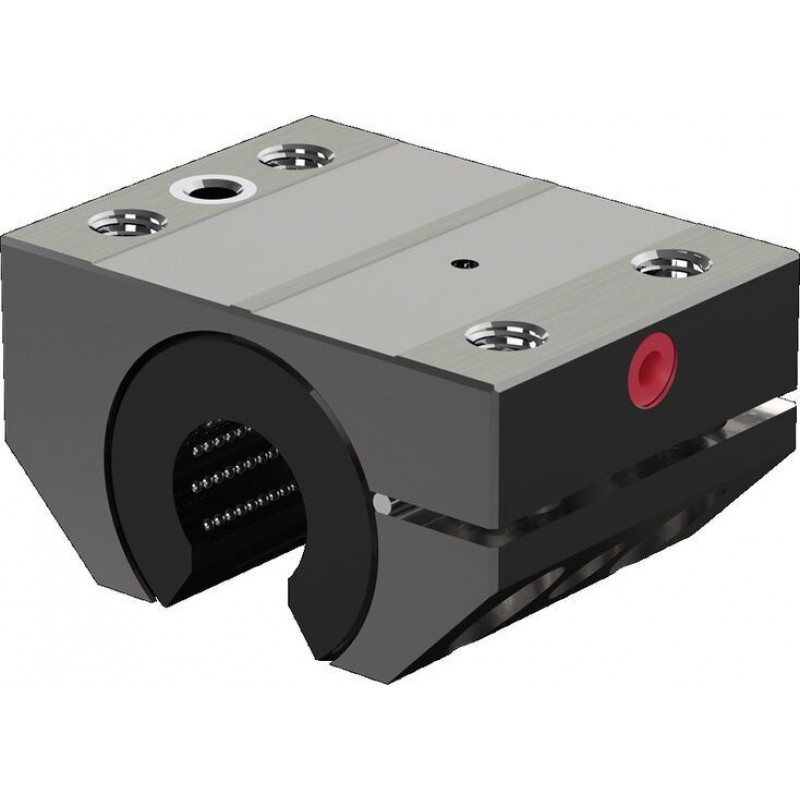

Description
- Hardened and machined bearing pedestal made of rolling bearing steel
- Ball retainer made of reinforced PA
- Balls made of rolling bearing steel
- Two retaining rings
- Fully sealed (with integrated wiper seals and longitudinal seals)
Technical data
General technical data
| Ø d | mm | 30 | 40 | 50 | 60 | 80 |
| amax | m/s² | 50 | ||||
| vmax | m/s | 2 | ||||
| m | kg | 1.75 | 3.5 | 7.1 | 11.9 | 29.6 |
| FR | N | 12 | 16 | 20 | 24 | 30 |
| Breakaway force | N | 24 | 32 | 40 | 48 | 60 |
| μ 1) | 01 ... 02 | |||||
| Radial clearance | Comes with an h5 shaft (lower limit) and set to zero clearance | |||||
| Operating conditions | ||||||
| Permissible ambient temperature (min ... max) | -20 °C ... +100 °C | |||||
| 1) | Friction coefficients of unsealed radial Linear Bushings when lubricated with oil. |
Load capacities and load moments
| Ød | mm | 30 | 40 | 50 | 60 | 80 |
| C 1) | N | 8500 | 13900 | 20800 | 29500 | 54800 |
| C0 1) | N | 9520 | 16000 | 24400 | 34100 | 61500 |
| 1) | The load ratings specified apply for the main direction of loading ρ = 0°. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| amax | Maximum acceleration travel | m/s2 |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| FR | Friction force | N |
| m | Mass | kg |
| vmax | Maximum permissible speed | m/s |
Definition of dynamic load ratings
Rigidity
Combining a radial Linear Bushing with a continuously supported guide shaft ensures a precise, rigid design.
- The following figure shows load-dependent spring. The diagram applies for installation:
- Without preload
- With zero clearance (no preload)
- for load direction ρ = 0° – 90° and 270° – 360°

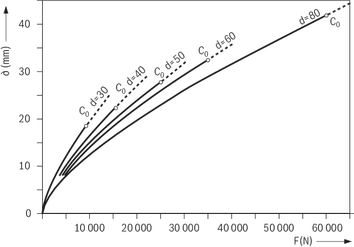

Radial Linear Bushing rigidity
Installing with preload reduces spring. Additional spring in all parts of a linear guide (housing, shaft, shaft support rail) depends on the load direction. Guideline values for total spring with R1076 and R1010 elements: load direction factor multiplied by spring ∂ (from right diagram).
| 1) | F = load N |
| 2) | ∂ = spring mm |
Overall deflection depending on the load direction
| Load direction ∂ | 0° | 90° | 180° | 270° |
| Overall deflection | 1 • ∂ | 1,8 • ∂ | 3,5 • ∂ | 1,8 • ∂ |
Effect of load direction on load rating
The load ratings C and C0 specified for Radial Linear Bushings apply for load direction ρ = 0°. If the external load is at an angle ρ = 90° – 270°, a reduced load capacity must be factored in. The dynamic load rating is then determined by multiplying the specified dynamic load rating C or C0 by the load direction factors fρ or fρ0. This reduced load capacity can be avoided by careful installation of the radial Linear Bushings.
Diagrams/characteristic curves

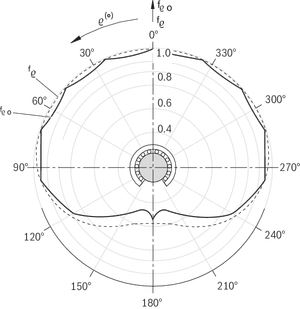

Load direction factors

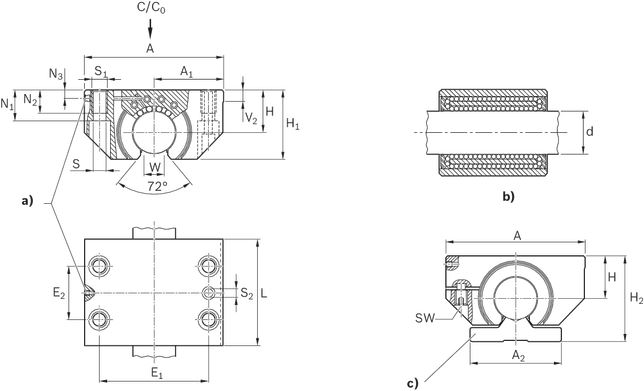

Dimensions
| a) | Lubricating hole M8x1 sealed with plastic cap |
| b) | Radial clearance adjustable |
| c) | Shaft with shaft support rail, R1012 |
Dimensions
| Ød | mm | 30 | 40 | 50 | 60 | 80 |
| A | mm | 100 | 125 | 160 | 190 | 260 |
| A1 | 50 mm ±08 | 62.5 mm ±08 | 80 mm ±08 | 95 mm ±08 | 130 mm ±08 | |
| A2 | mm | 68 | 85 | 105 | 130 | 170 |
| E1 | mm | 76 | 94 | 122 | 150 | 205 |
| E2 | mm | 40 | 50 | 65 | 75 | 100 |
| H 1) | 32 mm ±08 | 40 mm ±08 | 50 mm ±08 | 60 mm ±08 | 80 mm ±08 | |
| H1 | mm | 53 | 66 | 81.5 | 97 | 130 |
| H2 | mm | 65 | 80 | 100 | 120 | 160 |
| L | mm | 75 | 100 | 125 | 150 | 200 |
| N1 | mm | 21 | 27 | 35 | 42 | 57 |
| N2 | mm | 15 | 18 | 24 | 32 | 36 |
| N3 | mm | 9 | 11 | 12 | 13 | 15 |
| S | mm | 10.5 | 14 | 17.5 | 22 | 26 |
| S1 | M12 | M16 | M20 | M27 | M30 | |
| S2 2) | mm | 7.7 | 9.7 | 11.7 | 13.7 | 15.7 |
| SW | mm | 5 | 6 | 8 | 10 | 12 |
| V2 | mm | 6 | 8 | 16 | ||
| W 3) | mm | 14 | 19.5 | 24.5 | 29 | 39 |
| 1) | Clamped (fastened) based on nominal shaft dimension d. |
| 2) | Predrilled hole for pinned fitting. |
| 3) | Minimum size in relation to shaft diameter d. |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| C/C0 | Main direction of loading |
Project planning information
Life expectancy calculation
Mounting
Technical data/fixing
General mounting instructions
Maintenance
Lubrication
Accessories
R1012, for radial compact sets
R1012, for radial compact sets
- Shaft support rail material: Steel
Wiper seals for open-type Radial Linear Bushings
Wiper seals for open-type Radial Linear Bushings
- Steel retaining ring
- Elastomer wiper seal
Certification
Directives and standards
Safety Instructions
Notes
Ordering codes
Material numbers
| Ød | Part number | Seals | Lubrication | Short product name | CAD data | Buy |
| mm | ||||||
| 30 | R161330000 | Fully sealed | No initial lubrication | KB-RCS-E-30-VD | ||
| 40 | R161340000 | KB-RCS-E-40-VD | ||||
| 50 | R161350000 | KB-RCS-E-50-VD | ||||
| 60 | R161360000 1) | KB-RCS-E-60-VD | ||||
| 80 | R161380000 | KB-RCS-E-80-VD |
| 1) | Please inquire about delivery time! |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
Explanation of short product name using sample Radial Linear Set LSRSE-30-DD
| Example radial Linear Bushing Linear Set | LSRSE-30-DD | |
| Type | Linear Set | = LS |
| Series | Radial, open | = R |
| Radial, side opening | = RS | |
| Housing | Adjustable | = E |
| Shaft diameters | = 30 | |
| Seals | With two seals | = DD |
Explanatory example of the short product name
| KB | RCS | E | 30 | VD |
| Linear bushing | Radial compact set | Adjustable | Ø30 | Fully sealed |
