Артикул: RX8828

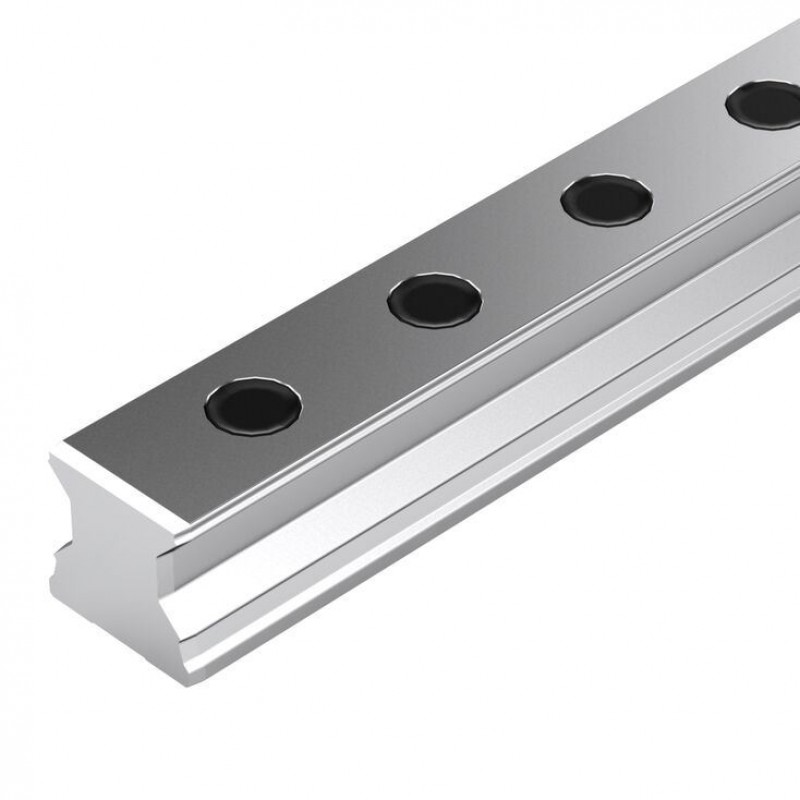

Standard roller guide rails SNS, with plastic mounting hole plugs R1805 .5. ..
Доступно к заказу
Цена по запросу
Получи КП от 5 лучших поставщиков
С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.
И выбери подходящего.
Description
- For mounting from above
Features
- Hardened raceways smoothened on all sides
- Top rigidity in all load directions
- Very high torque load capacity
Product description
Roller guide rail SNS with proven cover strip for covering mounting holes.
Roller Guide Rail with temperature control
Product description high-precision design
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 25 | 35 | 45 | 55 | 65 | |
| m | kg/m | 3.1 | 6.3 | 10.3 | 13.1 | 17.4 |
| Lmax | mm | 3986 | 3996 1) | 3986 2) | 3956 3) | 3971 4) |
| Material | CS | |||||
| Operating conditions | ||||||
| Size | 25 | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) 5) | -10 °C ... +80 °C | |||||
| 1) | Deliverable in one part up to a length of 5996 mm |
| 2) | Deliverable in one part up to a length of 5981 mm |
| 3) | Deliverable in one part up to a length of 5936 mm |
| 4) | Deliverable in one part up to a length of 5921 mm |
| 5) | Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes
Dimensions
| Plastic mounting hole plugs are supplied with the | |
| roller guide rails and are also available as accessories. | |
| To mount plastic mounting hole plugs, see | |
| "Mounting instructions for roller rail systems". | |
| a) | For roller guide rails of accuracy class H, this |
| base area may be without a groove for manufacturing reasons. |
Dimensions
| Size | 25 | 35 | 45 | 55 | 65 | |
| A2 | mm | 23 | 34 | 45 | 53 | 63 |
| D | mm | 11 | 15 | 20 | 24 | 26 |
| H2 | mm | 23.4 | 30.8 | 38.8 | 47.55 | 57.85 |
| N6 | 14.3 mm ±0.5 | 19.4 mm ±0.5 | 22.4 mm ±0.5 | 28.7 mm ±0.5 | 36.5 mm ±0.5 | |
| ØS5 | mm | 7 | 9 | 14 | 16 | 18 |
| T | mm | 30 | 40 | 52.5 | 60 | 75 |
| T1 min | mm | 10 | 12 | 16 | 18 | 20 |
| T1 s | mm | 13 1) | 18 1) | 24.25 1) | 28 1) | 35.5 1) |
| nB | 133 | 100 | 76 | 66 | 53 |
| 1) | Preferred dimension T1S with tolerances ± 0.75 |
Legend
| Symbol | Description | Unit |
| T | Hole spacing | mm |
| T1 min | Minimum distance | mm |
| T1 s | Preferred dimension | mm |
| nB | Maximum number of holes |
Mounting
Notes
▶ Plastic mounting hole plugs included in scope of delivery.
▶ Observe the notes for mounting!
▶ Please request "Mounting instructions for roller rail systems".
▶ Roller guide rail also available in composite.
General mounting instructions
Accessories
Packaging Opener Klever Kutter
Packaging Opener Klever Kutter
Hydraulic clamping and braking units KBH, FLS
R1810 .40 21
Hydraulic clamping and braking units KBH, FLS
R1810 .40 21
- Very high axial holding forces
- Dynamic and static stabilization in the axial direction
- Heavy-duty brake
- Compact design, compatible with DIN 645
- Clamps and brakes with pressure
Hydraulic clamping and braking units KBH, SLS
R1810 440 22
Hydraulic clamping and braking units KBH, SLS
R1810 440 22
- Very high axial holding forces
- Dynamic and static stabilization in the axial direction
- Heavy-duty brake
- Compact design, compatible with DIN 645
- Clamps and brakes with pressure
Hydraulic clamping units KWH, FLS
R1810 .4. 11
Hydraulic clamping units KWH, FLS
R1810 .4. 11
- Very high axial holding forces
- Dynamic and static stabilization in the axial direction
- Compact design, compatible with DIN 645
- Clamps and brakes with pressure
Hydraulic clamping units KWH, SLS
R1810 642 51
Hydraulic clamping units KWH, SLS
R1810 642 51
- Very high axial holding forces
- Dynamic and static stabilization in the axial direction
- Compact design, compatible with DIN 645
- Clamps and brakes with pressure
Hydraulic clamping units KWH, SLH
R1810 .42 31
Hydraulic clamping units KWH, SLH
R1810 .42 31
- Very high axial holding forces
- Dynamic and static stabilization in the axial direction
- Compact design, compatible with DIN 645
- Clamps and brakes with pressure
Pneumatic clamping and braking units MBPS
R1810 .40 31
Pneumatic clamping and braking units MBPS
R1810 .40 31
- Clamps and brakes with spring energy accumulator
- Positive locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect
- Dynamic and static stabilization in the axial direction
- Clamps and brakes without pressurization (spring energy)
- Clamping and braking units in short format
Pneumatic clamping and braking units UBPS
R1810 .40 51
Pneumatic clamping and braking units UBPS
R1810 .40 51
- Clamps and brakes with spring energy accumulator
- Positive locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect
- Dynamic and static stabilization in the axial direction
- Clamps and brakes without pressurization (spring energy)
- Compact design, compatible with DIN 645
Pneumatic clamping units MK
R1810 .42 60
Pneumatic clamping units MK
R1810 .42 60
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Easy mounting
- Clamps with pressure (pneumatic) The clamping profiles are pressed by compressed air via a dual acting gate valve gear mechanism.
Pneumatic clamping units MKS
R1810 .40 60
Pneumatic clamping units MKS
R1810 .40 60
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Easy mounting
- Clamps without pressurization (spring energy). In the event of a pressure drop, it clamps via the dual-action gate valve gear mechanism with two spring assemblies.
Mounting Runner Block SLH slimline, long, high
R1829 .20 ..
Mounting Runner Block SLH slimline, long, high
R1829 .20 ..
Standard loose cover strip with snap fit
Standard loose cover strip with snap fit
- The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
- Can be mounted and removed several times.
- For initial installation, storage and replacement
Loose cover strip with sliding fit
Loose cover strip with sliding fit
- The cover strip is easy to clip on and remove, thereby considerably simplifying and speeding up assembly.
- Can be mounted and removed several times.
- For initial installation, storage and replacement
Expanding tool
for Roller Rail Systems
Expanding tool
for Roller Rail Systems
- For creating a sliding fit in the cover strip
Cover strip mounting kit
for Roller Rail Systems
Cover strip mounting kit
for Roller Rail Systems
- Mounting aid and lift-off plate
Protective caps for Roller Rail Systems
R1619 .39 .0
Protective caps for Roller Rail Systems
R1619 .39 .0
Screws and washers for Roller Rail Systems
R34.. 0.. 0.
Screws and washers for Roller Rail Systems
R34.. 0.. 0.
Strip clamps for Roller Rail Systems
R1619 .39 .0
Strip clamps for Roller Rail Systems
R1619 .39 .0
Plastic mounting hole plugs for Roller Rail Systems
R1605 .0
Plastic mounting hole plugs for Roller Rail Systems
R1605 .0
Steel caps for Roller Rail Systems
R1606 7.
Steel caps for Roller Rail Systems
R1606 7.
Mounting tool for steel caps
Mounting tool for steel caps
- The two-piece mounting tool is suitable for mounting hole plugs in built-in guide rails (mounting instructions enclosed)
V-guide for lateral retention of Roller Guide Rails
V-guide for lateral retention of Roller Guide Rails
- Mounting aid for lateral retention of roller guide rails
- Material: Steel
- Design: black finish
Certification
Directives and standards
Safety Instructions
Notes
Downloads
 | Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog Roller Rail Systems Catalog | R999000354 | 2021-10-01 | English | PDF | 23.5MB Product Groups: Roller Rail Systems only available as PDF file |
