Артикул: RX8829

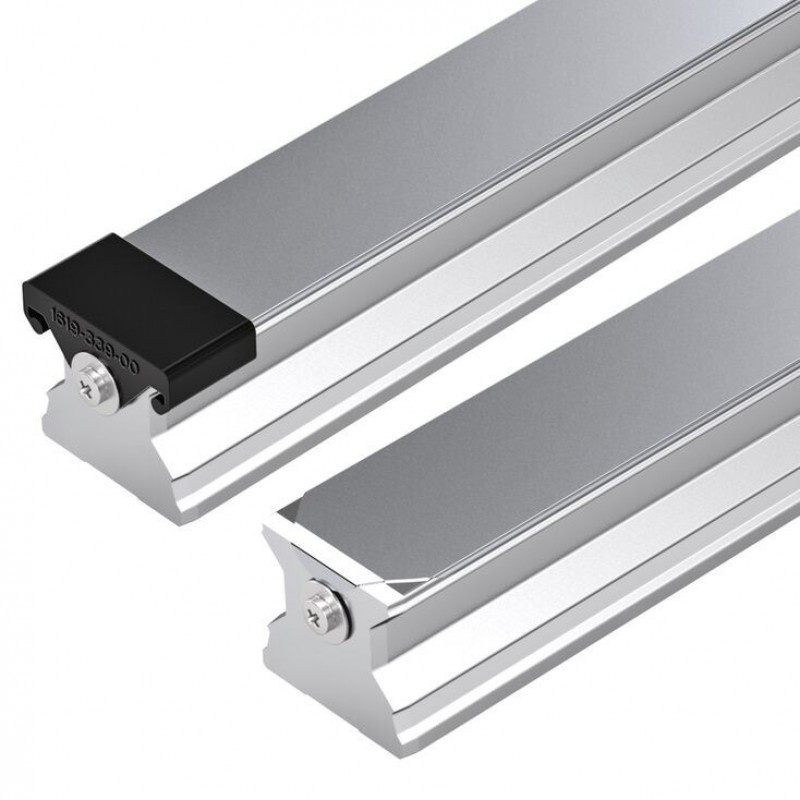

Standard roller guide rails SNS, with cover strip and protective caps R1805 .6. ..
Доступно к заказу
Цена по запросу
Получи КП от 5 лучших поставщиков
С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.
И выбери подходящего.
Description
- For mounting from above
- Cover strip made of corrosion-resistant spring steel as per DIN EN 10088
- With screw-down protective plastic caps (with threaded holes on end faces)
Features
- One cover for all bore holes saves time and costs
- Cover strip can be mounted simply and securely
- Clip on cover strip and lock
- Hardened raceways smoothened on all sides
- Top rigidity in all load directions
- Very high torque load capacity
Product description
Roller guide rail SNS with proven cover strip for covering mounting holes.
Roller Guide Rail with temperature control
Product description high-precision design
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 25 | 35 | 45 | 55 | 65 | |
| m | kg/m | 3.1 | 6.3 | 10.3 | 13.1 | 17.4 |
| Lmax | mm | 3986 | 3996 1) | 3986 2) | 3956 3) | 3971 4) |
| Material | CS | |||||
| Operating conditions | ||||||
| Size | 25 | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) 5) | -10 °C ... +80 °C | |||||
| 1) | Deliverable in one part up to a length of 5996 mm |
| 2) | Deliverable in one part up to a length of 5981 mm |
| 3) | Deliverable in one part up to a length of 5936 mm |
| 4) | Deliverable in one part up to a length of 5921 mm |
| 5) | Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes
Dimensions
| Roller guide rail with cover strip and threaded holes on end faces. | |
| Retention with screw-down protective caps made of | |
| plastic, or alternatively with screws and washers | |
| (included). | |
| a) | For Roller Guide Rails of accuracy class H, this |
| base area may be without a groove for manufacturing reasons. |
Dimensions
| Size | 25 | 35 | 45 | 55 | 65 | |
| A2 | mm | 23 | 34 | 45 | 53 | 63 |
| D | mm | 11 | 15 | 20 | 24 | 26 |
| Dimension H2 with cover strip | mm | 23.6 1) | 31.1 2) | 39.1 2) | 47.85 2) | 58.15 2) |
| N6 | 14.3 mm ±0.5 | 19.4 mm ±0.5 | 22.4 mm ±0.5 | 28.7 mm ±0.5 | 36.5 mm ±0.5 | |
| N7 | mm | 15 | 22 | 30 | 40 | |
| N8 | mm | 15.2 | 18 | 20 | ||
| N9 | mm | 6.5 | 7 | |||
| N10 | mm | 4.1 | 4.35 | |||
| ØS5 | mm | 7 | 9 | 14 | 16 | 18 |
| T | mm | 30 | 40 | 52.5 | 60 | 75 |
| T1 min | mm | 13 | 16 | 18 | 20 | 21 |
| T1 s | mm | 13 3) 4) | 18 3) 4) | 24.25 3) 4) | 28 3) 4) | 35.5 3) 4) |
| nB | 133 | 100 | 76 | 66 | 53 | |
| 1) | with cover strip 0.2 mm |
| 2) | with cover strip 0.3 mm |
| 3) | Preferred dimension T1S with tolerances ± 0.75 |
| 4) | With a shortfall of T1 min a front thread is not possible. Secure the cover strip! See instruction for mounting |
Legend
| Symbol | Description | Unit |
| T | Hole spacing | mm |
| T1 min | Minimum distance | mm |
| T1 s | Preferred dimension | mm |
| nB | Maximum number of holes |
Mounting
Notes
▶ As an alternative, the cover strip can be secured with screws and washers.
▶ Protective caps with screws and washers included in scope of delivery.
▶ Observe the notes for mounting!
▶ Please request the "Mounting instructions for roller rail systems" and "Mounting instructions for cover strip".
▶ Roller guide rail also available in composite.
