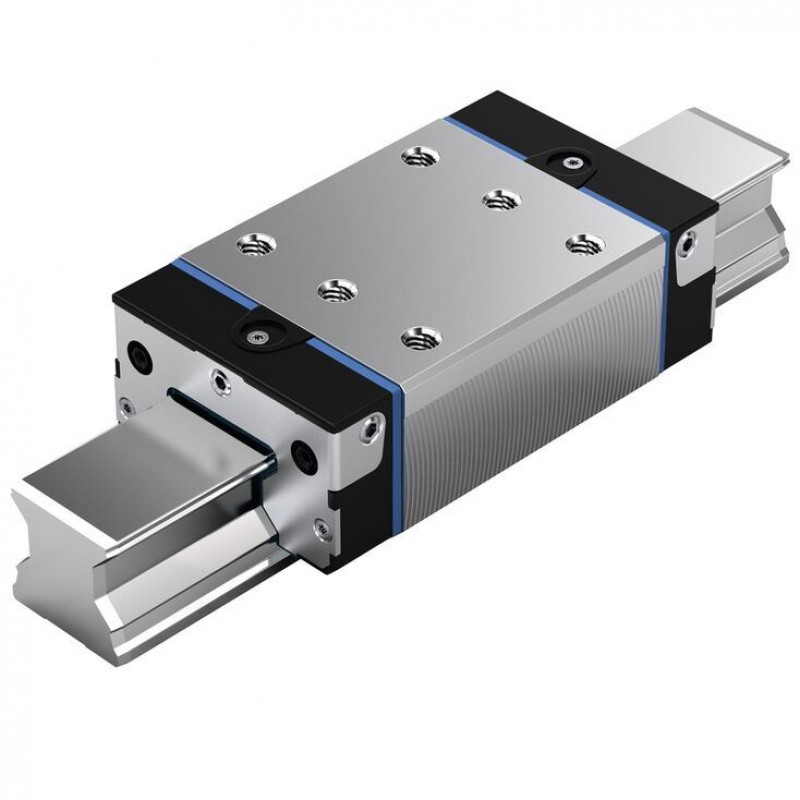

RSHP roller runner block SNS, standard, Resist CR R1822...7X
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- High torque capacity
- The same high load ratings in all four main directions of loading
- Maximum rigidity under load from all directions through two additional mounting screw holes at the center of the roller runner block
- Corrosion-resistant coating Resist CR, matte silver hard chrome plated
- All guide rail versions can be combined at will with all roller runner block variants
Features
- Accessories can be simply attached to the ends of the roller runner block
- Lube ports on all sides for maximum ease of maintenance
- Minimum lubrication quantities thanks to innovative channel design
- Smooth running thanks to optimized roller recirculation and guidance
- Attachments on the roller runner block can be mounted from above and below
- Further optimized entry zone geometry and high number of rollers per track minimize variation in elastic deflection and provide maximum precision travel accuracy
- The roller runner block simply slides off its arbor and onto the rail
- Integrated all-around sealing as standard
- Unrestricted interchangeability
- Corrosion-resistant roller runner blocks and guide rails Resist CR, hard chrome plated, come in accuracy class H; accuracy classes P and SP on request
- Sizes 25 and 65
- Preload classes C1 to C5
- Version with gaskets DS, SS or AS
Product description
Steel roller runner block with corrosion-resistant coating "Resist CR", matte silver finish, hard chrome plated
RSHP roller runner blocks are suitable for all typical applications as well as for special installation-, environmental- and operating conditions, so that additional special designs are not necessary.
Product description high-precision design
Selection of a linear guide acc. to DIN 637
Technical data
Load capacities and load moments
| Size | 25 1) | 35 | 45 | 55 | 65 | ||
| C | N |  | 26900 | 6100 | 106600 | 140400 | 237200 |
| C0 | N | 59500 | 119400 | 209400 | 284700 | 456300 | |
| Mt | Nm |  | 390 | 1210 | 2640 | 4120 | 8430 |
| Mt0 | Nm | 770 | 2370 | 5180 | 8350 | 16210 | |
| ML | Nm |  | 300 | 760 | 1650 | 2610 | 5260 |
| ML0 | Nm | 580 | 1480 | 3240 | 5290 | 10120 | |
| 1) | In progress |
| Determination of the dynamic load ratings and load moments is based on a 100,000 m stroke in accordance with DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt, and ML from the table by 1.23. | |
General technical data
| Size | 25 1) | 35 | 45 | 55 | 65 | |
| amax 2) | m/s² | 150 | ||||
| vmax | m/s | 4 | ||||
| m | kg | 0.54 | 1.55 | 2.9 | 4.14 | 8.12 |
| FR 3) | N | 30 | 35 | 40 | 45 | 60 |
| μ 4) | 004 ... 01 | |||||
| Material | CR | |||||
| Operating conditions | ||||||
| Size | 25 1) | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) 5) | -10 °C ... +80 °C | |||||
| 1) | In progress |
| 2) | Prerequisite: There must be preload, even during operation under load. |
| 3) | Guideline value for frictional drags of the complete, sealed and lubricated roller runner blocks. |
| 4) | Without friction of seal |
| 5) | Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| amax | Maximum acceleration travel | m/s2 |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| Fpr | Preload force | N |
| FR | Friction force | N |
| m | Mass | kg |
| ML | Dynamic longitudinal moment load capacity | Nm |
| ML0 | Static longitudinal moment load capacity | Nm |
| Mt | Dynamic torsional moment load capacity | Nm |
| Mt0 | Static torsional moment laod capacity | Nm |
| vmax | Maximum permissible speed | m/s |
| μ | Friction coefficient |
General technical data and calculations
Accuracy classes
Definition of preload class
The preload class is the pre-tensioning force Fpr based on the dynamic load rating C of the particular roller runner block.
Selection of the preload class
| Code | Application area |
| C1 | Special version on request |
| C4 | |
| C5 | |
| C2 | For precise guide systems with both high external loading and high demands on overall rigidity;also recommended for single rail systems. |
| Above average moment loads can be absorbed without significant elastic deflection. | |
| Further improved overall rigidity with only medium moment loads. | |
| C3 | For highly rigid guide systems such as precision machine tools, etc. |
| Above average loads and moments can be absorbed with the least possible elastic deflection. | |
| Roller runner blocks with preload C3 available in accuracy classes P, SP (GP) and UP only. |
Recommended combination based on preload and accuracy class
Recommendation for preload C2: Accuracy classes H and P
Recommendation for preload C3: Accuracy classes P, SP, GP and UP
Combination of hard chrome plated Roller Runner Block with hard chrome plated Roller Guide Rails
Upon combination of hard chrome plated Roller Runner Blocks with preload C2 or C3 and hard chrome plated Roller Guide Rails, the preload increases by approx. half a preload class.
Preload force Fpr (N)
| Roller Runner Blocks | Size | 25 | 35 | 45 | 55 | 65 | 100 | 125 | 55/85 | 65/100 | ||
|
| Type | Design type | Preload class | Preload force Fpr (N) | ||||||||
| Roller runner block, steel1) Roller runner block, Resist CR2) | R1851 R1822 R1821 R1861 | FNS SNS SNH | C1 | 830 | 1680 | 2930 | 3860 | 6520 | ‒ | ‒ | ‒ | ‒ |
| C2 | 2240 | 4510 | 7890 | 10400 | 17600 | 36900 | 60600 | ‒ | ‒ | |||
| C3 | 3640 | 7320 | 12800 | 16800 | 28500 | 59900 | 98400 | ‒ | ‒ | |||
| C4 | 4770 | 9610 | 16800 | 22100 | 37400 | ‒ | ‒ | ‒ | ‒ | |||
| C5 | 5610 | 11300 | 19700 | 26000 | 43900 | ‒ | ‒ | ‒ | ‒ | |||
| R1853 R1823 R1824 R1863 | FLS SLS SLH | C1 | 1010 | 2060 | 3640 | 4790 | 8140 | ‒ | ‒ | ‒ | ‒ | |
| C2 | 2720 | 5540 | 9790 | 12900 | 21900 | 50600 | 81600 | ‒ | ‒ | |||
| C3 | 4420 | 8990 | 15900 | 20900 | 35500 | 82200 | 132600 | ‒ | ‒ | |||
| C4 | 5800 | 11800 | 20800 | 27400 | 46600 | ‒ | ‒ | ‒ | ‒ | |||
| C5 | 6810 | 13900 | 24500 | 32200 | 54700 | ‒ | ‒ | ‒ | ‒ | |||
| R1854 | FXS | C2 | ‒ | ‒ | ‒ | ‒ | 29300 | ‒ | ‒ | ‒ | ‒ | |
| C3 | ‒ | ‒ | ‒ | ‒ | 47700 | ‒ | ‒ | ‒ | ‒ | |||
| 1) | All steel parts made of carbon steel |
| 2) | Steel roller runner block body with corrosion-resistant coating, matt silver finish, hard chrome-plated |
Diagrams/characteristic curves
Rigidity of roller rail system for preload C2
Standard roller runner block SNS R1822/ SNH R1821
Roller runner block mounted with 6 screws of strength class 12.9
Preload class
C2 = Preload (in accordance with table for pre-tensioning force Fpr in section "Technical information")
Down load
| 1) | δel. = elastic deformation μm |
| 2) | F = load N |

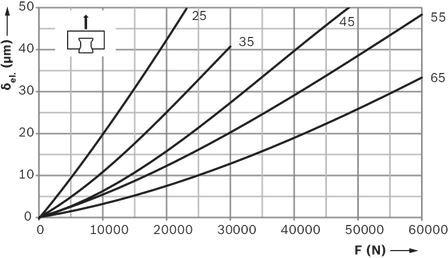

lift-off load
| 1) | δel. = elastic deformation μm |
| 2) | F = load N |

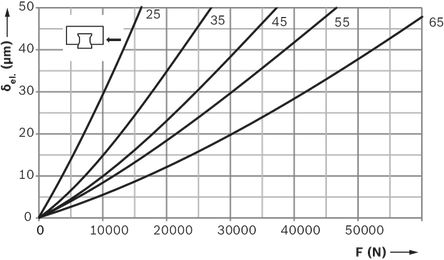

side load
| 1) | δel. = elastic deformation μm |
| 2) | F = load N |

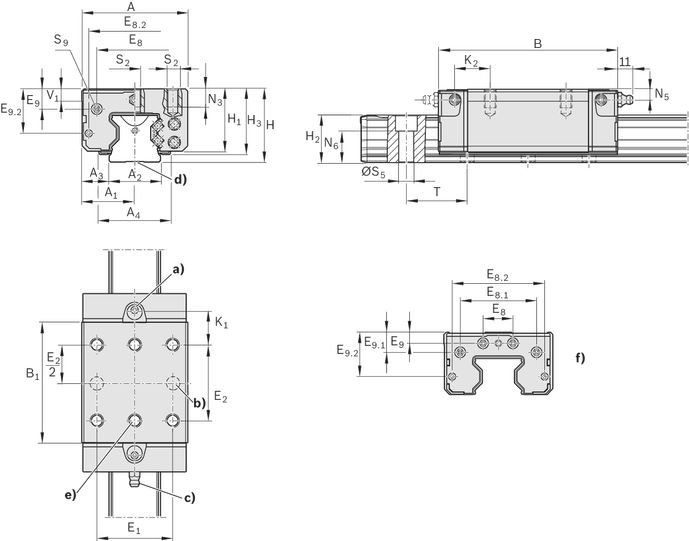

Dimensions
| a) | For O-ring |
| Size 25: Ø 5 • 1.5 (mm) | |
| Sizes 35 to 65: Ø 7 • 1.5 (mm) | |
| b) | Recommended position for pin holes |
| (E4 dimensions, see section entitled “Instruction for mounting", segment "Pinned fitting"). | |
| c) | Lube nipple, thread M6 - 8 deep: |
| Connection is possible on all sides (at front and top for size 25). Dimensions differ among different connectors See "Accessories" for more information about lube ports. | |
| d) | For Roller Guide Rails of accuracy class H, this base area may be without a base slot for manufacturing reasons. |
| e) | Sealing plugs may be present at this position for manufacturing reasons. |
| Remove these prior to mounting. | |
| f) | Size 65 |
Dimensions
| Size | 25 1) | 35 | 45 | 55 | 65 | |
| A | mm | 48 | 70 | 86 | 100 | 126 |
| A1 | mm | 24 | 35 | 43 | 50 | 63 |
| A2 | mm | 23 | 34 | 45 | 53 | 63 |
| A3 | mm | 12 | 18 | 20.5 | 23.5 | 31.5 |
| B | mm | 97 | 118 | 147 | 170.65 | 207.3 |
| B1 | mm | 63.5 | 79.6 | 101.5 | 123.1 | 146 |
| E1 | mm | 35 | 50 | 60 | 75 | 76 |
| E2 | mm | 35 | 50 | 60 | 75 | 70 |
| E8 | mm | 33.4 | 50.3 | 62.9 | 74.2 | 35 |
| E8.1 | mm | - | 93 | |||
| E8.2 | mm | 40.2 | 60.5 | 72 | 81.6 | 106 |
| E9 | mm | 8.3 | 13.1 | 16.7 | 18.85 | 9.3 |
| E9.1 | mm | - | 26 | |||
| E9.2 | mm | 21.4 | 29.1 | 36.5 | 40.75 | 55 |
| H | mm | 36 | 48 | 60 | 70 | 90 |
| H1 | mm | 30 | 41 | 51 | 58 | 76 |
| Dimension H2 with cover strip | mm | 23.6 | 31.1 | 39.1 | 47.85 | 58.15 |
| Dimension H2 without cover strip | mm | 23.4 | 30.8 | 38.8 | 47.55 | 57.85 |
| K1 | mm | 19.05 | 21.55 | 27.45 | 31.75 | 50 |
| K2 | mm | - | 29.4 | 30.35 | 34.9 | 53 |
| N3 | mm | 8 | 12 | 18 | 17 | 21 |
| N5 | mm | 5.5 | 7 | 8 | 9 | 9.3 |
| N6 | 14.3 mm ±0.5 | 19.4 mm ±0.5 | 22.4 mm ±0.5 | 28.7 mm ±0.5 | 36.5 mm ±0.5 | |
| S2 | M6 | M8 | M10 | M12 | M16 | |
| ØS5 | mm | 7 | 9 | 14 | 16 | 18 |
| S9 2) | M3 ‒ 6.5mm deep | M3 ‒ 6mm deep | M4 ‒ 9mm deep | M5 ‒ 8mm deep | M4 ‒ 8mm deep | |
| T 3) | mm | 30 | 40 | 52.5 | 60 | 75 |
| V1 | mm | 7.5 | 8 | 10 | 12 | 15 |
| 1) | In progress |
| 2) | Thread for adjoining parts |
| 3) | Dimension T = Division of the Roller Guide Rail |
Project planning information
Effect of "Resist CR" coating on tolerances and preload
Differing tolerances for "Resist CR” coating
For Roller Runner Blocks and Roller Guide Rails in Resist CR, hard chrome-plated, be aware of differing tolerances with dimensions H and A3 (see "Accuracy classes and their tolerances")!
Higher preload upon combination of hard chrome-plated Roller Runner Blocks and hard chrome-plated Roller Guide Rails
When hard chrome-plated Roller Runner Blocks are combined with hard chrome-plated Roller Guide Rails, this increases the preload by approx. half a preload class.
Mounting
load errorMaintenance
load errorCertification
load errorSafety Instructions
load errorDownloads
