Description
- Component series 1X
- Analog, Euro-card format
- For controlling valves with integrated or external electronics
Features
- Differential inputs, voltage
- 4 internal command values, adjustable and callable
- 2 internal fixed command values, callable
- Control outputs for voltage
- Ramp time selection with quadrant recognition
- Reverse polarity protection for the operating voltage
Type code
| 01 | Command value and ramp cards, Analog, Euro-card format | VT-SWKA2-5 |
| 02 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) | 1X |
| 03 | Version: standard | V0 |
| 04 | Option: standard | 0 |
| 01 | 02 | 03 | 04 | |||
| VT-SWKA2-5 | ‒ | 1X | / | V0 | / | 0 |
Technical data
General
| Component series | 1X | ||
| Material number | Data sheet | 1819929059 | |
| Type of electronics | Analog | ||
| Design | Euro-card | ||
Voltage supply
| Operating voltage | Nominal | UB | V | 24 |
| Lower limit value | UB(t)min | V | 21 | |
| Upper limit value | UB(t)max | V | 40 | |
| Current consumption | max. | I | A | 0.35 |
Analog inputs
| Command value | Voltage | Differential input | Ue | V | 0 … ±10 |
| Differential input resistance | Re | kΩ | 100 | ||
| callable, internally generated | Fixed value | V | 10 / -10 | ||
| adjustable | V | 0 ... 10 or 0 ... -10 (reference potential is 0 V) |
Digital inputs
| Call-up internal potentiometer voltages | UE | V | 6 ... 40 (Ri = 2 kΩ, 4 inputs) | |
| Ramp time combinations | high for α2 and β2 | 6 ... 40 (Ri = 2 kΩ) | ||
| low for α1 and β1 | 695024 | |||
| Ramp switch-off | UE | V | 6 ... 40 (Ri = 2 kΩ) | |
Analog outputs
| Voltage | Number and designation | 3 (signal outputs) | ||
| Voltage 1) | U | V | 0 … ±10 | |
| 1) | Imax = 10 mA |
Adjustment options
| Setting range 1 | Ramp time up/down | t | s | 0.05 … 5 |
| Setting range 2 | Ramp time up/down | t | s | 0.1 … 10 |
Displays
| LED display | Green 1 | Ramp combination α1/β1 | |
| Green 2 | Ramp combination α2/β2 | ||
| Yellow 1 | 4 command value call-ups P1 ... P4, 2 fixed values | ||
| Red | Ramp off | ||
| Green/Red | Green: UB ok, red: UB too low |
Other information
| Anschlussart | 32-pin male connector, DIN 41612, form F | ||
| Ambient temperature range | ϑ | °C | 0 … 70 |
| Storage temperature range | ϑ | °C | -20 … 70 |
| Weight | m | kg | 0.33 |
(For applications outside these values, please consult us!)

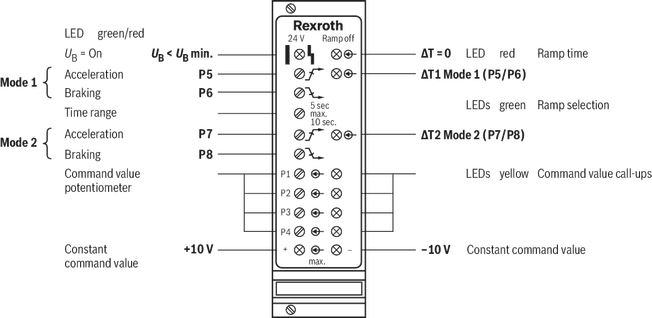

Operating and display elements

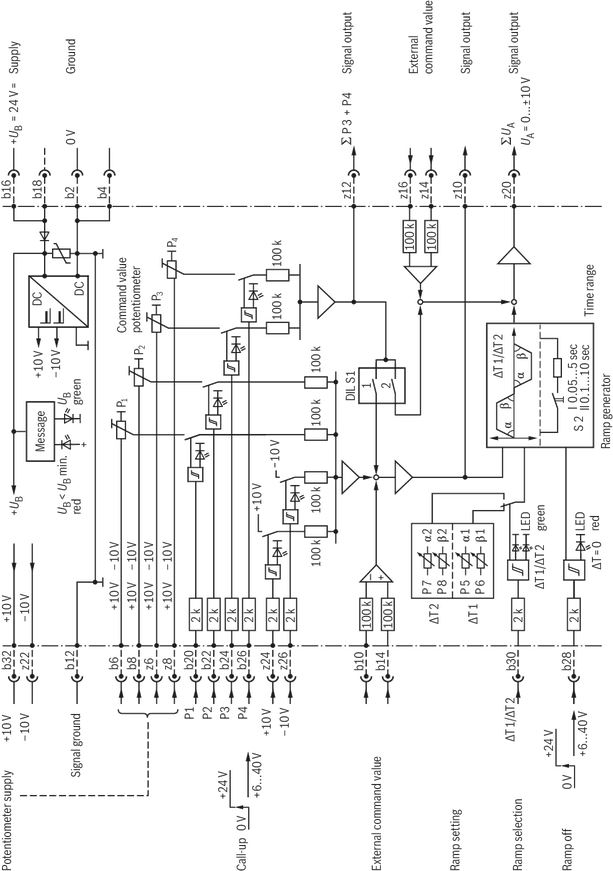

Symbols/Circuit diagrams

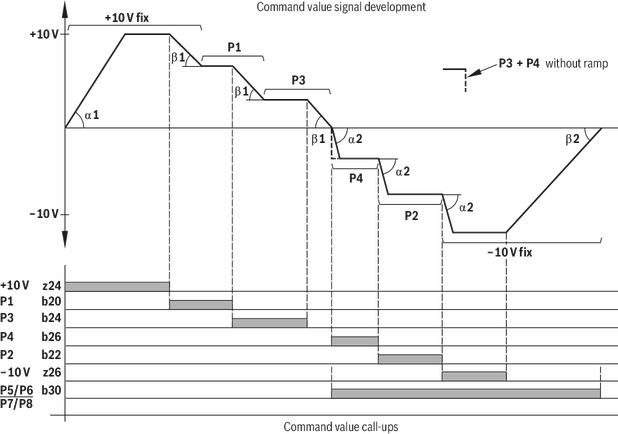

Fields of application
- Preparation and call-up of signal voltages UE = 0…±10 V.
- Generation of voltage ramps t = 0.05…10 s via potentiometer settings on the front side.
- By means of the DIL switch S1, the command values P3/P4 can be connected with or without ramp function.
| DIL S1._ | Ramp | |
| .1 | .2 | P3/P4 |
| 1 | 0 | ON |
| 0 | 1 | OFF |

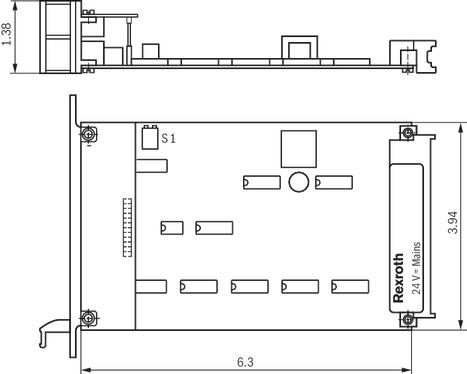

Dimensions
4/2 directional seat valve (“Y”)
Dimensions in mm
Dimensions in mm
Project planning information
The amplifier card may only be unplugged and plugged when de-energized.
The distance to aerial lines, radios and radar systems must be sufficient (>1 m).
Do not lay solenoid and signal lines near power cables.
For signal lines and solenoid conductors, we recommend using shielded cables.
The cable shield must be connected to the control cabinet extensively and as short as possible.
The valve solenoid must not be connected to free-wheeling diodes or other protection circuits.
