Артикул: RX7622

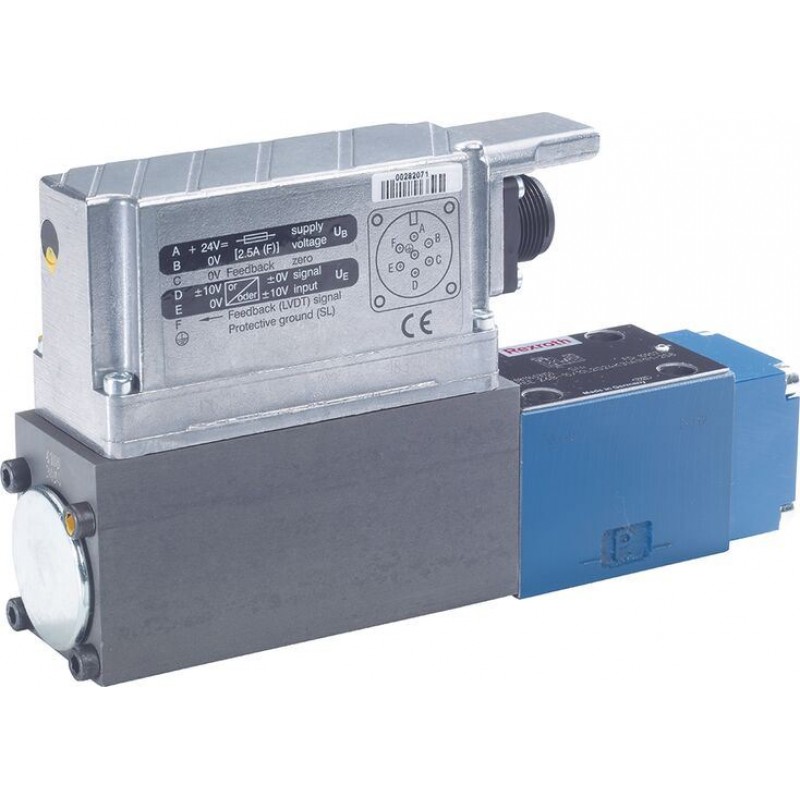

Proportional flow control valve, with integrated electronics (OBE) and inductive position transducer 3FREEZ
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Size 6, 10
- Component series 1X
- Max. operating pressure 250 bar
Features
- Direct operated flow control valves NG6 and NG10 with integrated electronics and inductive position transducer
- Position-controlled, minimum hysteresis < 1%
- The assignment of the hydraulic ports determines the 3-way function (the residual current flows via port P, 3rd way)
- Adjustable by means of the position-controlled solenoid position, using the position transducer and the integrated valve electronics
- For subplate mounting: Porting pattern according to ISO 4401
Product description
Proportional flow control valves of type 3FREEZ with position control and integrated electronics are offered in sizes 6 and 10. Operation is effected by means of a proportional solenoid with inductive position transducer. The hysteresis is <1 %. The installed electronics have been calibrated in the plant and allow for short actuating times. Due to the valve housing, the residual flow is guided via port P.
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | |||
| 3 | FRE | E | Z | B | ‒ | 1X | / | L | 2 | G24 | ‒ | K31 | A1 | M | M | * |
| 01 | 3-way | 3 |
| 02 | Proportional flow control valve, with position control | FRE |
| 03 | With integrated electronics (OBE) | E |
| 04 | With inductive position transducer | Z |
| 05 | Size 6 | 6 |
| Size 10 | 10 | |
| 06 | Without external closing of the pressure compensator | B |
| 07 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) - Size 10 | 1X |
| Nominal flow | ||
| 08 | Size 6 | |
| 10 l/min | 10 | |
| 35 l/min | 35 | |
| Size 10 | ||
| 70 l/min | 70 | |
| Flow characteristic | ||
| 09 | Linear | L |
| 10 | Command value presetting + 10 V, Qmax (NC) | 2 |
| Supply voltage of the control electronics | ||
| 11 | Direct voltage 24 V | G24 |
| Electrical connection | ||
| 12 | Connector according to DIN 43563-AM6 | K31 |
| Electrical interface | ||
| 13 | Command value 0 … 10 V | A1 |
| 14 | Without check valve | M |
| Seal material | ||
| 15 | NBR seals | M |
| 16 | Further details in the plain text | * |
Technical data
general
| Type | 3FREEZ | ||
| Size | 6 | 10 | |
| Component series | 1X | ||
| Installation position | Any | ||
| Weight | kg | 3.1 | 6.9 |
| Ambient temperature range | °C | -20 … +50 | |
hydraulic
| Type | 3FREEZ | |||
| Size | 6 | 10 | ||
| Maximum operating pressure | bar | 250 | ||
| Maximum operating pressure | Anschluss A | bar | 250 | |
| Port B | bar | 250 | ||
| Hydraulic fluid temperature range | °C | -20 … +70 | ||
| Viscosity range | mm²/s | 10 … 800 | ||
| Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) | Class 18/16/13 according to ISO 4406 (c) | |||
| Hysteresis | % | ≤ 1 | ||
| Range of inversion | % | ≤ 0.5 | ||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
electrical
| Type | 3FREEZ | ||
| Power supply | Nominal voltage | V | 24 |
| Lower limit value | V | 21 | |
| Upper limit value | V | 40 | |
| Duty cycle | % | 100 | |
| Protection class according to DIN EN 60529 | IP65 (If a suitable and a correctly mounted mating connector are used.) | ||
Downloads
 | Proportional flow control valve, with on-board electronics (OBE) and inductive position transducer Data Sheet | RE29221 | 2005-08-01 | English | PDF | 345k Product Groups: Proportional flow control valves |
