Артикул: RX8478

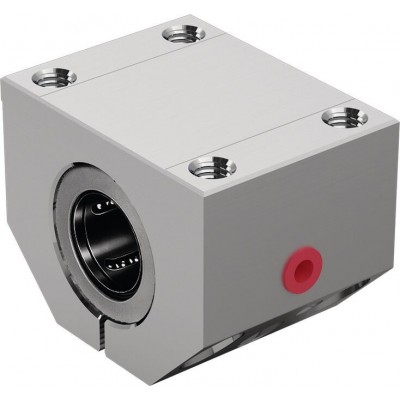

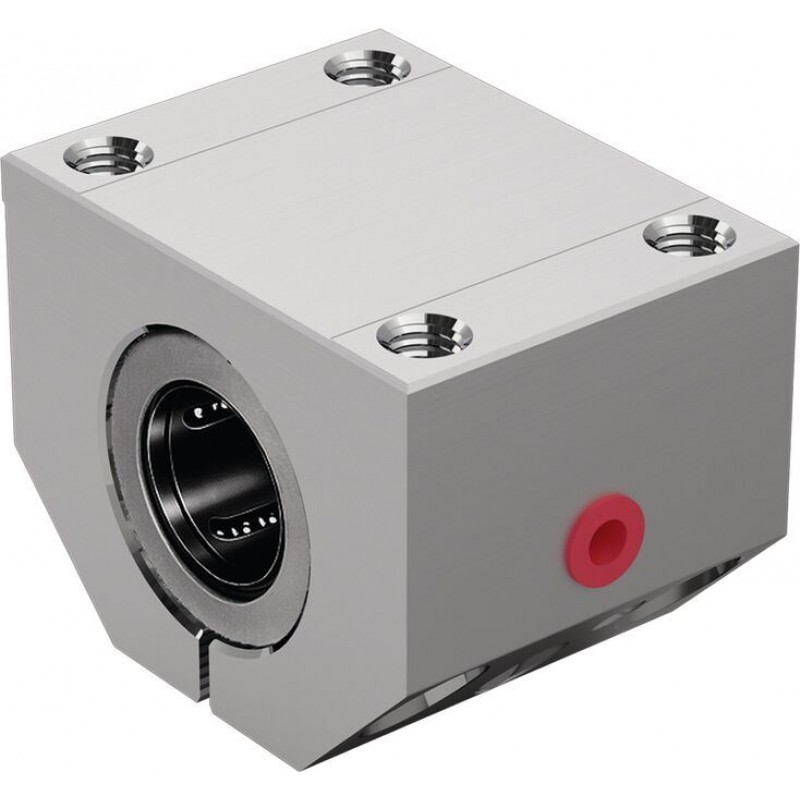

Linear Sets with Super Linear Bushings H, adjustable, R1702 LSAHE-H-..-DD
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Precision housing (aluminum)
- Super Linear Bushing H
- Compensate for misalignments of up to 30 ft
- Integrated wiper seals
- Secured with bolt
Features
- Relubricatable
Technical data
General technical data
| Ø d | mm | 20 | 25 | 30 | 40 | 50 | 60 |
| amax | m/s² | 150 | |||||
| vmax | m/s | 5 | |||||
| m | kg | 0.29 | 0.58 | 0.88 | 1.63 | 2.7 | 5.2 |
| FR 1) | N | 2.5 | 3 | 4 | 5 | 6 | 7 |
| Breakaway force | N | 5 | 7 | 9 | 12 | 15 | 18 |
| Radial clearance | Comes clamped to h5 shaft (lower limit) and set to zero clearance | ||||||
| Operating conditions | |||||||
| Permissible ambient temperature (min ... max) | -20 °C ... +80 °C | ||||||
| 1) | Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
Load capacities and load moments
| Ød | mm | 20 | 25 | 30 | 40 | 50 | 60 |
| C 1) | N | 2520 | 4430 | 6300 | 9680 | 16000 | 23500 |
| C0 1) | N | 1880 | 3360 | 5230 | 7600 | 12200 | 18700 |
| 1) | The load ratings apply for the main direction of loading. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| amax | Maximum acceleration travel | m/s2 |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| FR | Friction force | N |
| m | Mass | kg |
| vmax | Maximum permissible speed | m/s |
See "Technical data – Load direction factors" and the diagrams/characteristic curves section for exact values for the 4 main directions of loading.
Effect of load direction on load rating
| a) | Closed |
| b) | Open |
Main direction of loading
Load direction factors
The load ratings C and C0 apply for the load direction ρ = 0°. For all other load directions, the load ratings must be multiplied by the factors fr (dynamic load rating C) or fρ0 (static load rating C0).
Load direction factor Super H
| Shaft | Load direction factor (dynamic load capacity) | |||||
| Ø d (mm) | ⇩ | ⇒⇐ | ⇑ | ⇩ | ⇒⇐ | ⇑ |
| 20 - 25 | 1 | 0,80 | 0,98 | 1 | 0,80 | 0,67 |
| 30 - 60 | 1 | 0,70 | 0,91 | 1 | 0,70 | 0,62 |
| Load direction factor (static load capacity) | ||||||
| 20 - 25 | 1 | 0,70 | 0,87 | 1 | 0,70 | 0,67 |
| 30 - 60 | 1 | 0,62 | 0,80 | 1 | 0,62 | 0,61 |
 |  | |||||
Reduced load capacity with short stroke
In case of short stroke, the service life of the shaft is less than that of the super Linear Bushing. The load ratings C specified in the tables must therefore be multiplied by the factor f.s .
| 1) | fs = factor |
| 2) | s = movement path |
Reduced load capacity with high load
The load rating is reduced under high load F. The dynamic load rating must be multiplied by the load factor f.F .
| 1) | fF = load factor |
Definition of dynamic load ratings
Diagrams/characteristic curves

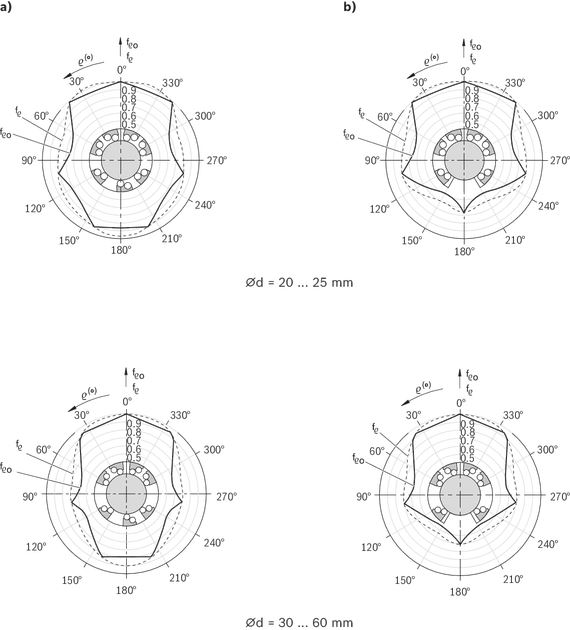

Load direction factors
| a) | Closed |
| b) | Open |
Super Linear Bushings can be installed in any location. Choose a location that ensures that the main direction of loading is always ρ = 0°.

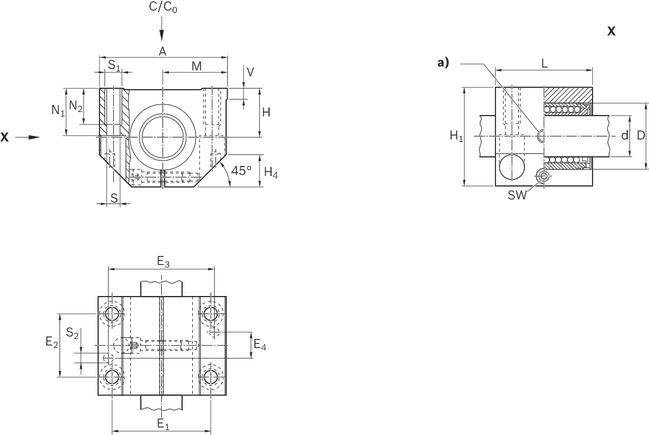

Dimensions
| a) | Lubricating hole sealed with plastic cap |
| M8x1 (Ø d 20 – 50 mm) | |
| M10x1 (Ø d = 60 mm) |
Dimensions
| Ød | mm | 20 | 25 | 30 | 40 | 50 | 60 |
| D | mm | 32 | 40 | 47 | 62 | 75 | 90 |
| A | mm | 60 | 78 | 87 | 108 | 132 | 164 |
| E1 | 45 mm ±0.15 | 60 mm ±0.15 | 68 mm ±0.15 | 86 mm ±0.15 | 108 mm ±0.2 | 132 mm ±0.2 | |
| E2 | 32 mm ±0.15 | 40 mm ±0.15 | 45 mm ±0.15 | 58 mm ±0.15 | 50 mm ±0.2 | 65 mm ±0.2 | |
| E3 | mm | 50 | 64 | 72 | 90 | 108 | 132 |
| E4 | mm | 15 | 17 | 20 | 25 | 85 | 108 |
| H | mm | 25 | 30 | 35 | 45 | 50 | 60 |
| Tolerance for H 1) | µm | + 8 - 16 | - - | + 8 - 16 | |||
| H1 | mm | 50 | 60 | 70 | 90 | 105 | 125 |
| H4 | mm | 16 | 20 | 22 | 28 | 37 | 45 |
| L | mm | 46 | 59 | 69 | 81 | 101 | 126 |
| M 1) | 30 mm ±0.01 | 39 mm ±0.01 | 43.5 mm ±0.01 | 54 mm ±0.01 | 66 mm ±0.01 | 82 mm ±0.01 | |
| N1 | mm | 24 | 29 | 34 | 44 | 49 | 59 |
| N2 | mm | 18 | 22 | 26 | 34 | 42 | |
| S | mm | 6.6 | 8.4 | 10.5 | 13.5 | 17.5 | |
| S1 | M8 | M10 | M12 | M16 | M20 | ||
| S2 | mm | 5 | 6 | 8 | 10 | 12 | |
| SW | mm | 4 | 5 | 6 | 8 | 10 | |
| V | mm | 5 | 6.5 | 8 | 10 | 12 | 13 |
| 1) | Clamped (fastened) in relation to Ø d. |
| a) | Lubricating hole sealed with plastic cap |
| M8x1 (Ø d 20 – 50 mm) | |
| M10x1 (Ø d = 60 mm) |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| C/C0 | Main direction of loading |
Project planning information
Life expectancy calculation
Mounting
General mounting instructions

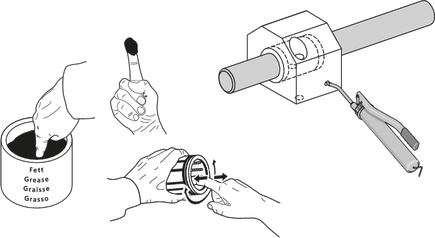

Commissioning
Linear Sets with Super H Linear Bushings do not come with initial lubrication. Grease the Linear Bushings before use. Service life data is based on initial lubrication and relubricated Linear Bushings.
Maintenance
Lubrication
Accessories
Hydraulic-type lube nipple according to DIN 71412 Form A
Hydraulic-type lube nipple according to DIN 71412 Form A
Funnel-type lube nipple according to DIN 3405 Form A
Funnel-type lube nipple according to DIN 3405 Form A
Hollow screw
Hollow screw
- For relubricating and securing Super Linear Bushing H (closed) via locating hole S.1
Locating screws for super linear bushings H and SH
Locating screws for super linear bushings H and SH
- Various versions:closed or open-type, standard or corrosion-resistant, with or without retaining rings, wiper seals and longitudinal seals, flanged or flangeless, Linear Sets
- Temperature stability up to 200 °C
- Long service life, high running speed and extra rigidity
- Outstanding running properties: low friction, quiet running
- Compensation for misalignment or shaft deflections
