Артикул: RX8610

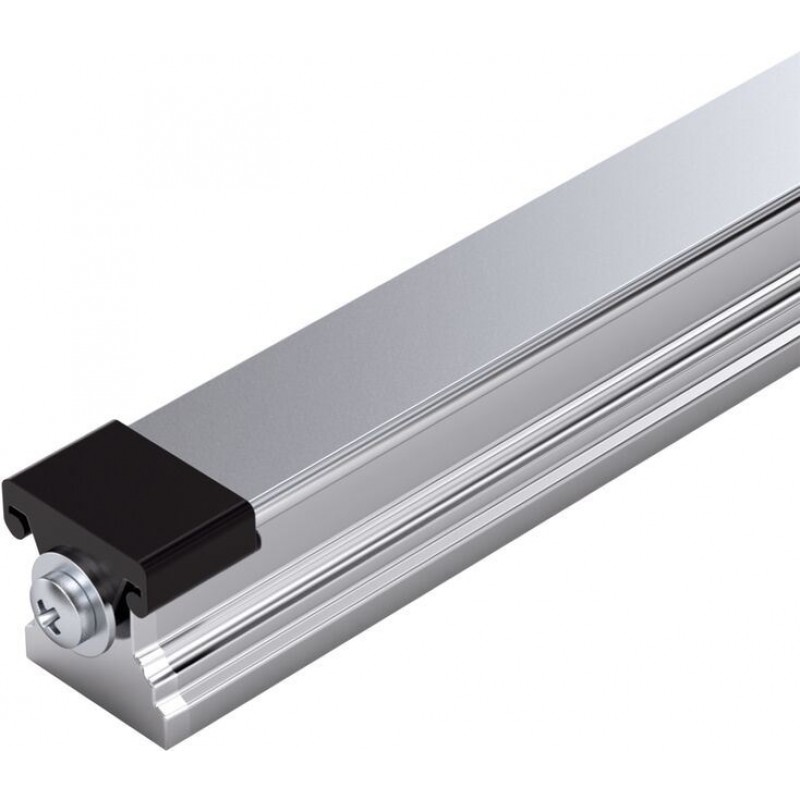

Ball Guide Rails SNS with cover strips and protective caps R1605 .6. ..
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Area of application: For harsh environments
- Compact cover strip fastening
- Cover strip made of corrosion-resistant spring steel as per DIN EN 10088 and screw-down plastic protective caps (with threaded holes on end faces)
- Top rigidity in all load directions
- High torque capacity
Features
- A single cover for all holes
- For mounting from above
Product description
Ball rails can be cut to the length required by the customer.
The maximum lengths for one-piece guide rails can be found in the "Technical data" chapter.
If longer rails are required, Bosch Rexroth supplies them as composite ball guide rails.
Ball guide rail with temperature control
Product description of Ball Rail Systems
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| m | kg/m | 1.4 | 2.4 | 3.2 | 5 | 6.8 | 10.5 | 16.2 | 22.4 |
| Lmax | mm | 3836 | 5816 | 5836 | 5771 | 3836 | 3746 | ||
| Material | CS | ||||||||
| Operating conditions | |||||||||
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) 1) | 0 °C ... +80 °C | ||||||||
| 1) | Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes

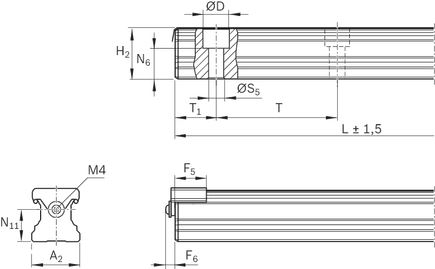

Dimensions
Dimensions
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| A2 | mm | 15 | 20 | 23 | 28 | 34 | 45 | 53 | 63 |
| F5 | mm | 14 | 15.2 | 18 | 20 | ||||
| F6 | mm | 6.5 | 7 | ||||||
| D | mm | 7.4 | 9.4 | 11 | 15 | 20 | 24 | 26 | |
| Dimension H2 with cover strip | mm | 16.3 1) | 20.75 2) | 24.45 2) | 28.55 2) | 32.15 3) | 40.15 3) | 48.15 3) | 60.15 3) |
| N6 | 10.3 mm ±0.5 | 13.2 mm ±0.5 | 15.2 mm ±0.5 | 17 mm ±0.5 | 20.5 mm ±0.5 | 23.5 mm ±0.5 | 29 mm ±0.5 | 38.5 mm ±0.5 | |
| N11 | mm | 9.8 | 13 | 15 | 18 | 22 | 30 | 40 | |
| ØS5 | mm | 4.5 | 6 | 7 | 9 | 14 | 16 | 18 | |
| T | mm | 60 | 80 | 105 | 120 | 150 | |||
| T1 min | mm | 12 4) | 13 4) | 16 4) | 18 4) | 20 4) | 21 4) | ||
| T1 s | mm | 28 5) | 38 5) | 50.5 5) | 58 5) | 73 5) | |||
| T1 max | mm | 50 | 68 | 89 | 102 | 130 | |||
| nB | 64 | 48 | 36 | 32 | 25 | ||||
| 1) | with cover strip 0.1 mm |
| 2) | with cover strip 0.2 mm |
| 3) | with cover strip 0.3 mm |
| 4) | In case of dimensions less than T1min. a front thread is not possible. Secure the cover strip. |
| 5) | Preferred dimension T1S Recommended with tolerances ± 0.75. |
Legend
| Symbol | Description | Unit |
| T1 min | Minimum distance | mm |
| T1 max | Maximum distance | mm |
| T1 s | Preferred dimension | mm |
| T | Spacing of guide rail | mm |
| nB | Maximum number of holes |
Mounting
Notes
▶ Secure cover strip!
▶ Protective caps with screws and washers included in scope of delivery.
▶ Observe the notes for mounting!
▶ Please request the "Mounting instructions for ball rail systems" and "Mounting instructions for cover strip".
▶ Multi-part ball guide rail is also available.
General mounting instructions
Certification
load errorSafety Instructions
load errorDownloads
 | Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog BSHP Ball Rail Systems Catalog | R999000485 | 2020-10-01 | English | PDF | 15MB Product Groups: Ball Rail Systems only available as PDF |
